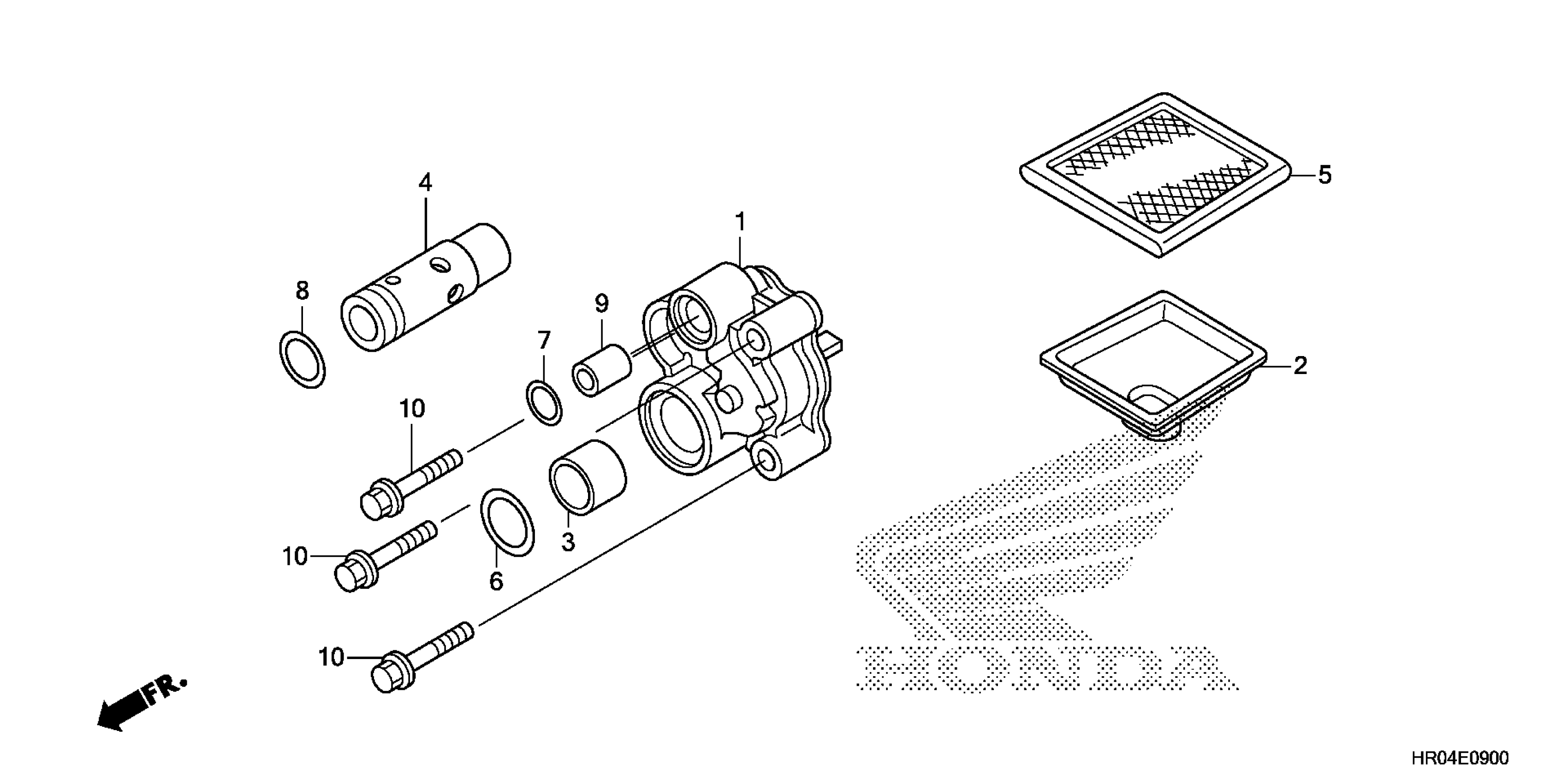

Honda TRX500FM2AC (13) FOREMAN 4X4, USA, VIN# 1HFTE381-D4100001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-HP5-600

$61.69

STRAINER, OIL

15153-HR0-F00

$6.55

COLLAR, O-RING

15155-HP0-A00

$3.01

VALVE ASSY., RELIEF

15220-HP5-600

$25.60

SCREEN, OIL FILTER This part replaces 15421-HC4-005.

15421-HR3-A40

$11.99

O-RING (15X2.5) (Honda Code 0386995)

91302-377-000

$5.31

O-RING (10X2) (ARAI)

91304-HA5-003

$3.92

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28

BOLT, FLANGE (6X35)

95801-06035-00

$1.49
