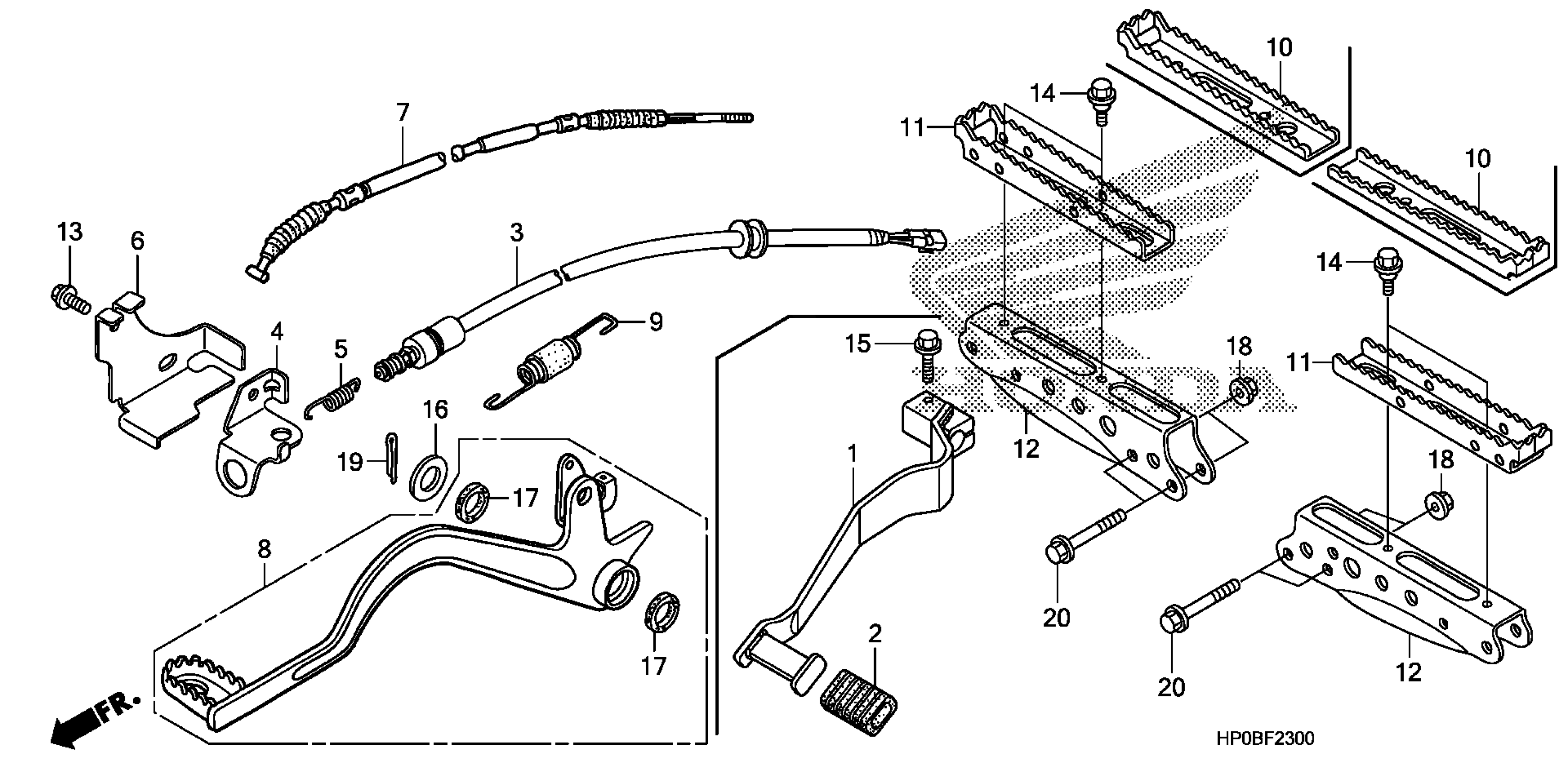

Honda TRX500FM2A (11) FOREMAN, USA, VIN# 1HFTE311-B4600001 STEP + PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24700-HP0-A00

$45.22

2

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

3

SWITCH ASSY., RR. STOP

35350-HP0-A00

$59.72

4

STAY, STOP SWITCH

35351-HP0-A00

$8.15

5

SPRING, STOP SWITCH

35357-HP0-A00

$2.56

6

GUARD, RR. STOP SWITCH

35359-HP0-A00

$93.08

7

CABLE, FOOT BRAKE

43470-HP0-A00

$11.94

8

PEDAL, BRAKE

46500-HP0-A00

$49.69

9

SPRING ASSY., RR. BRAKE PEDAL

46513-HM7-000

$11.69

11

STEP

50610-HP0-A00

$32.87

12

BRACKET, STEP

50611-HP0-A00

$48.36

13

BOLT, FLANGE (6X14)

90105-MCE-750

$1.49

14

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.66

15

BOLT, FLANGE (6X20)

90118-968-000

$4.24

16

WASHER (17.5MM)

90512-303-000

$1.77

17

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

17

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.69

18

NUT, FLANGE (8MM)

94050-08000

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

19

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

19

PIN, SPLIT (3.0X45)

94201-30450

$1.49

20

BOLT, FLANGE (8X45)

95801-08045-00

$1.80
