Description

Price

1

COVER, RR. CRANKCASE

11340-HP0-A00

Unavailable

2

PLATE, CHANGE SWITCH CORD

11346-HP0-A00

$11.77

3

COVER, ALTERNATOR

11350-HP0-A00

$116.21

4

GASKET, RR. CRANKCASE COVER

11395-HP0-A00

$22.98

5

GASKET, ALTERNATOR COVER

11396-HP0-A00

$20.06

6

DIPSTICK, OIL

15660-HP0-A00

$15.33

7

PLATE A, REVERSE STOPPER

24860-HP0-A00

$18.70

9

LEVER, REVERSE STOPPER

24865-HP0-A00

$4.94

10

SPRING, REVERSE

24867-HM7-000

$5.54

11

HOLDER, REVERSE STOPPER WIRE

24871-HP0-A00

Unavailable

12

COVER, REVERSE LEVER

24880-HP0-A00

$7.28

14

SWITCH ASSY., CHANGE

35759-HP0-A00

$47.34

15

CAP (14MM)

90084-KY2-000

$15.97

16

WASHER, THRUST (12MM)

90452-166-600

$2.39

18

OIL SEAL (12X22X5)

91201-965-000

$4.06

19

OIL SEAL (32X52X9) (ARAI)

91202-HP0-A01

$13.91

20

O-RING (13.8X2.5)

91303-377-000

$3.42

21

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

22

PIN, DOWEL (8X14)

94301-08140

$2.25

23

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

24

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

25

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

26

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

27

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

28

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

29

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13

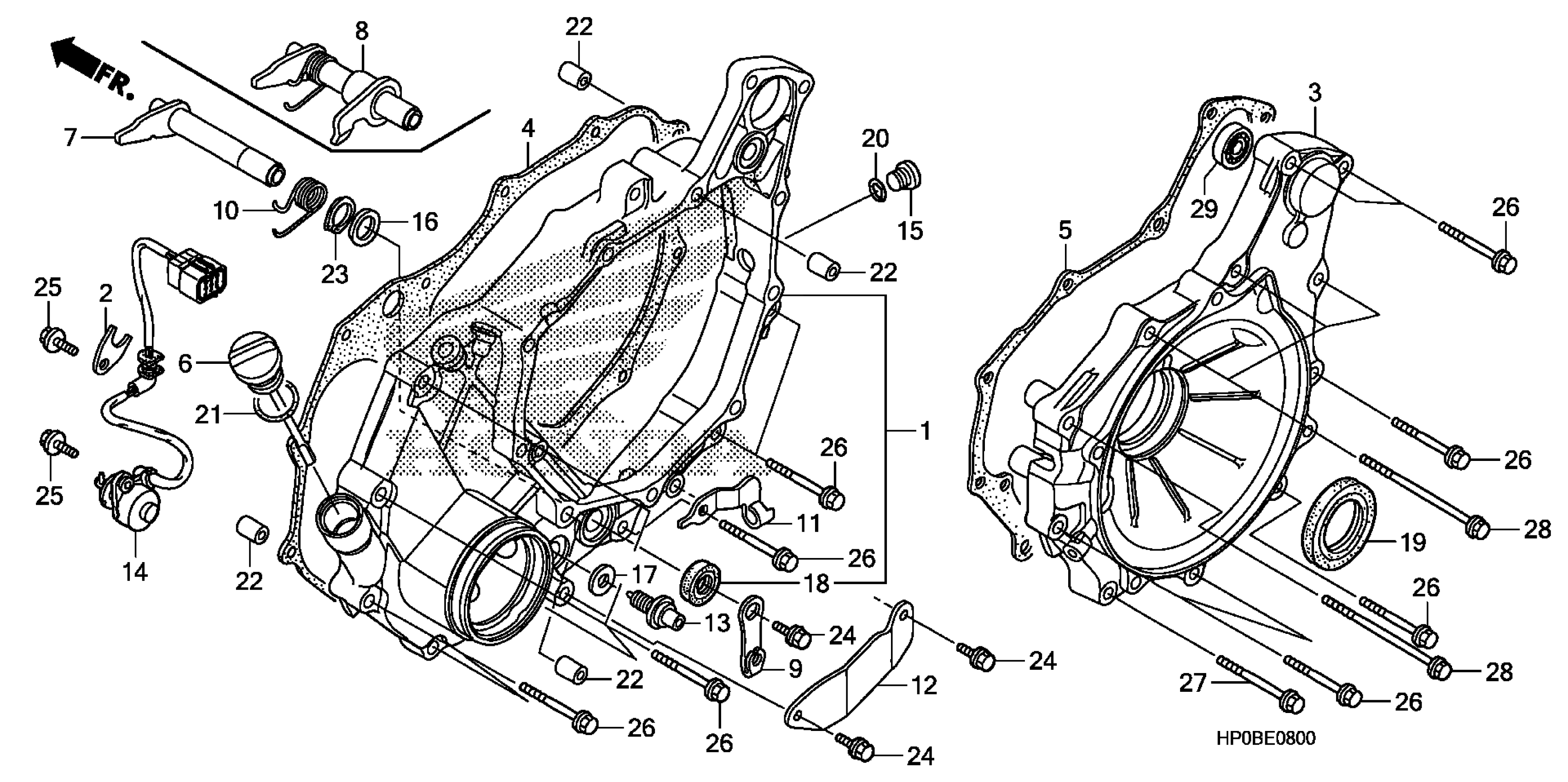

Honda TRX500FM2A (11) FOREMAN, USA, VIN# 1HFTE311-B4600001 REAR CRANKCASE COVER Diagram
