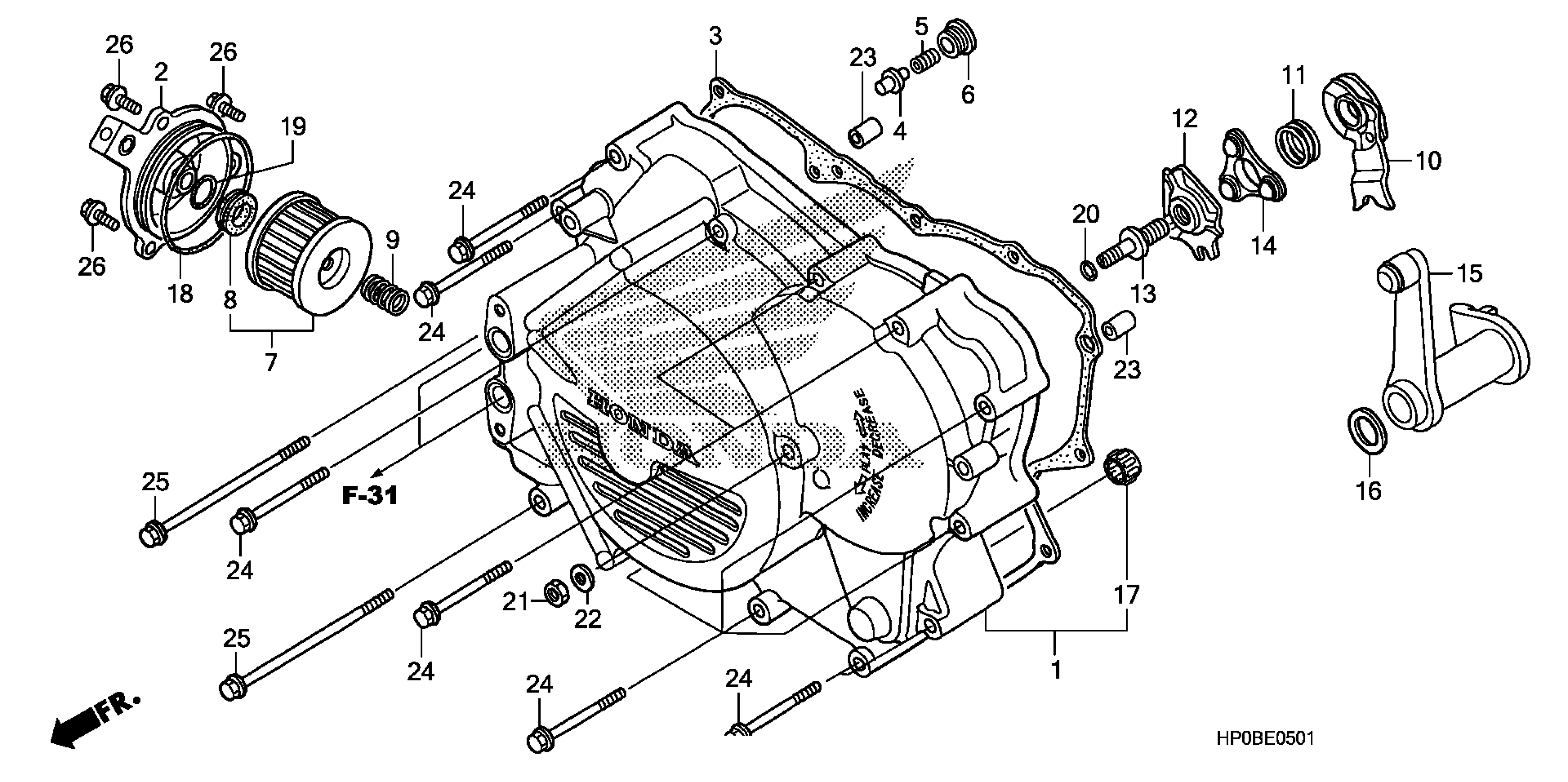

Honda TRX500FM2A (11) FOREMAN, USA, VIN# 1HFTE311-B4600001 FRONT CRANKCASE COVER (TRX500FM/FPM) Diagram

COVER, FR. CRANKCASE

11330-HP0-A00

Unavailable

COVER, OIL FILTER

11333-HP0-A00

$46.08

GASKET, FR. CRANKCASE COVER

11394-HP0-A00

$27.94

VALVE, RELIEF

15231-HP0-A00

Unavailable

SPRING, RELIEF VALVE

15232-HM3-670

$1.93

CAP, RELIEF VALVE

15235-HP0-A00

$9.32

ELEMENT, OIL FILTER

15412-HM5-A10

$5.50

RUBBER, FILTER

15413-MC8-000

$3.35

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

PLATE, CLUTCH CAM

22820-HP0-A00

$34.13

SPRING, CAM PLATE SIDE

22825-HN0-671

$3.73

PLATE, CLUTCH LIFTER

22830-HP0-A00

$17.33

BOLT, CLUTCH ADJUSTING

22841-HP0-A00

$6.54

RETAINER, BALL

22860-HB3-000

$7.81

ARM, SUB-GEARSHIFT SPINDLE

24670-HP0-A00

Unavailable

WASHER (10X21.5)

90413-GE0-000

$3.90

BEARING, NEEDLE (10X14X10) (TORRINGTON)

91021-HN0-671

$13.89

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

O-RING (11X1.9) (NOK)

91303-HA0-004

$2.13

O-RING (8.2X1.5)

91308-MC7-000

$2.31

NUT, HEX. (8MM)

94030-08000

$1.49

WASHER, PLAIN (8MM)

94102-08800

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
