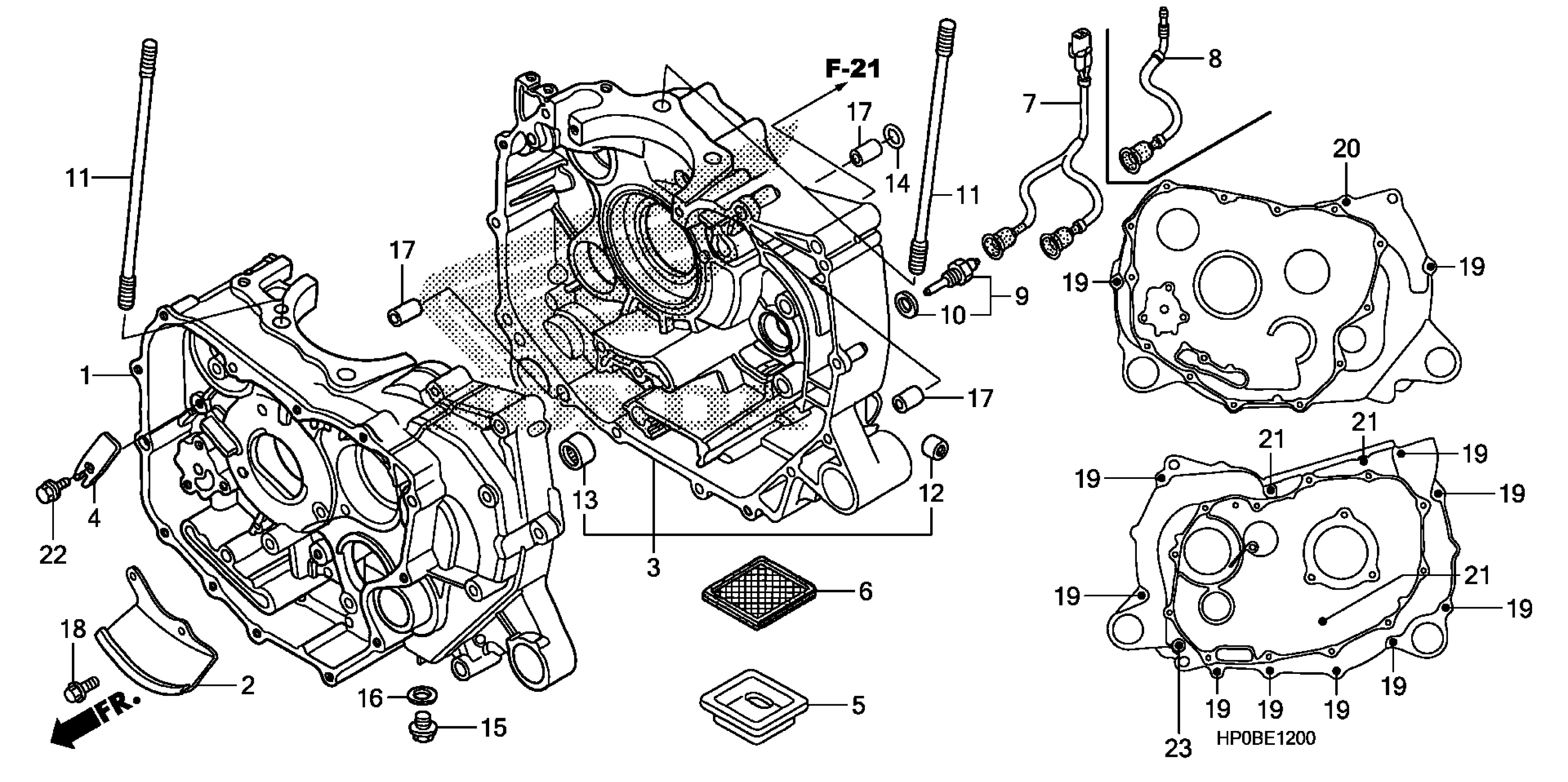

Honda TRX500FM2A (11) FOREMAN, USA, VIN# 1HFTE311-B4600001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, FR.

11100-HP0-A01

$484.49

2

PLATE, OIL SEPARATE

11150-HP0-A01

Unavailable

3

CRANKCASE SET, RR.

11210-HP0-305

$437.22

4

PLATE, CAM FIXING

14115-HM7-000

Unavailable

5

STRAINER, OIL

15153-HN5-670

$6.07

6

SCREEN, OIL FILTER This part replaces 15421-HC4-005.

15421-HR3-A40

$10.69

8

SUB-HARNESS, ENGINE

32103-HP0-670

$25.69

9

SENSOR ASSY., THERMOSTAT OIL (TOYO)

37750-HC4-751

$57.46

9

SENSOR ASSY., THERMOSTAT OIL (TOYO) This part replaces 37750-HN5-M41.

37750-HC4-751

$57.46

10

WASHER, SEALING This part replaces 37751-HN5-M40.

90401-HA8-000

$3.65

10

WASHER, SEALING

90401-HA8-000

$3.65

10

WASHER, SEALING This part replaces 90401-HC4-750.

90401-HA8-000

$3.65

11

BOLT, STUD (10X190)

90032-HP0-A00

$6.96

12

BEARING, NEEDLE (14X20X12) (TORRINGTON)

91105-HN0-671

$3.84

13

BEARING, NEEDLE (20X26X12)

91106-HN0-671

$14.06

14

O-RING (7.5X1.5)

91302-HB3-004

$2.01

15

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.08

16

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

17

PIN, DOWEL (8X14)

94301-08140

$2.62

18

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

19

BOLT, FLANGE (6X40)

95701-06040-00

$1.74

20

BOLT, FLANGE (6X55)

95701-06055-00

$2.59

21

BOLT, FLANGE (6X75)

95701-06075-00

$2.74

22

BOLT, FLANGE (8X16)

95701-08016-00

$1.66

23

BOLT, FLANGE (6X140)

95801-06140-00

$3.09
