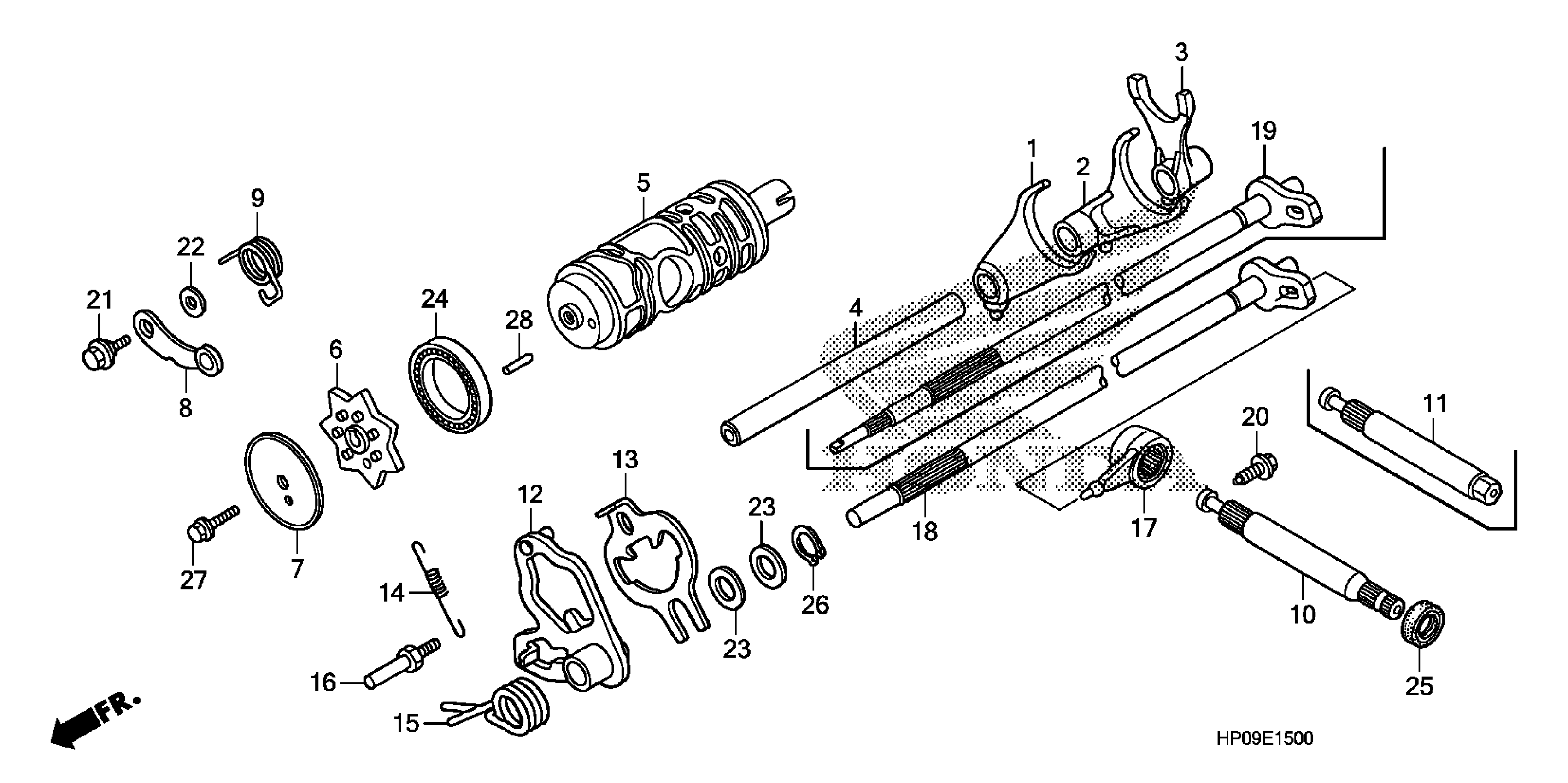

Honda TRX500FM2A (09) FOURTRAX FOREMAN, USA, VIN# 1HFTE311-94400001 TO 1HFTE311-94499999 GEARSHIFT DRUM Diagram

FORK, FR. GEARSHIFT

24211-HM7-000

$76.92

FORK, CENTER GEARSHIFT

24212-HM7-000

$77.49

SWINGARM, GEARSHIFT

24213-HP0-A00

$54.20

SHAFT, GEARSHIFT FORK GUIDE This part replaces 24241-HP0-A50.

24241-HP0-A51

$22.41

SHAFT, GEARSHIFT FORK GUIDE

24241-HP0-A51

$22.41

DRUM, GEARSHIFT

24301-HP0-A00

$89.93

SHIFTER, DRUM

24321-HM8-B40

$22.74

PLATE, SHIFT GUIDE

24328-HB3-000

$6.69

STOPPER, GEARSHIFT DRUM

24430-HB3-000

$12.99

SPRING, SHIFT DRUM STOPPER

24435-HP0-A00

Unavailable

SPINDLE, GEARSHIFT

24611-HP0-A00

$42.02

ARM, GEARSHIFT MASTER

24620-HM7-000

$21.60

PLATE, GEARSHIFT

24631-HM7-010

$8.18

SPRING, SHIFT ARM

24641-HB3-004

$2.64

SPRING, GEARSHIFT RETURN

24651-HP0-A00

Unavailable

PIN, RETURN SPRING

24652-KY4-900

$7.44

ARM A, GEARSHIFT

24661-HP0-A00

$22.29

SPINDLE, SUB-GEARSHIFT

24680-HP0-A00

Unavailable

BOLT, SPECIAL FLANGE (6X15.2)

90009-HN5-670

$2.64

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-MR5-670

$2.12

WASHER, DRUM STOPPER

90417-360-000

$1.58

WASHER, THRUST (12MM)

90451-GF6-000

$2.03

BEARING, RADIAL BALL (6807) (KOYO)

91010-HB7-003

$54.42

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.52

CIRCLIP (OUTER) (12MM)

94510-12000

$1.65

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

ROLLER (4X13.8)

96220-40138

$0.48
