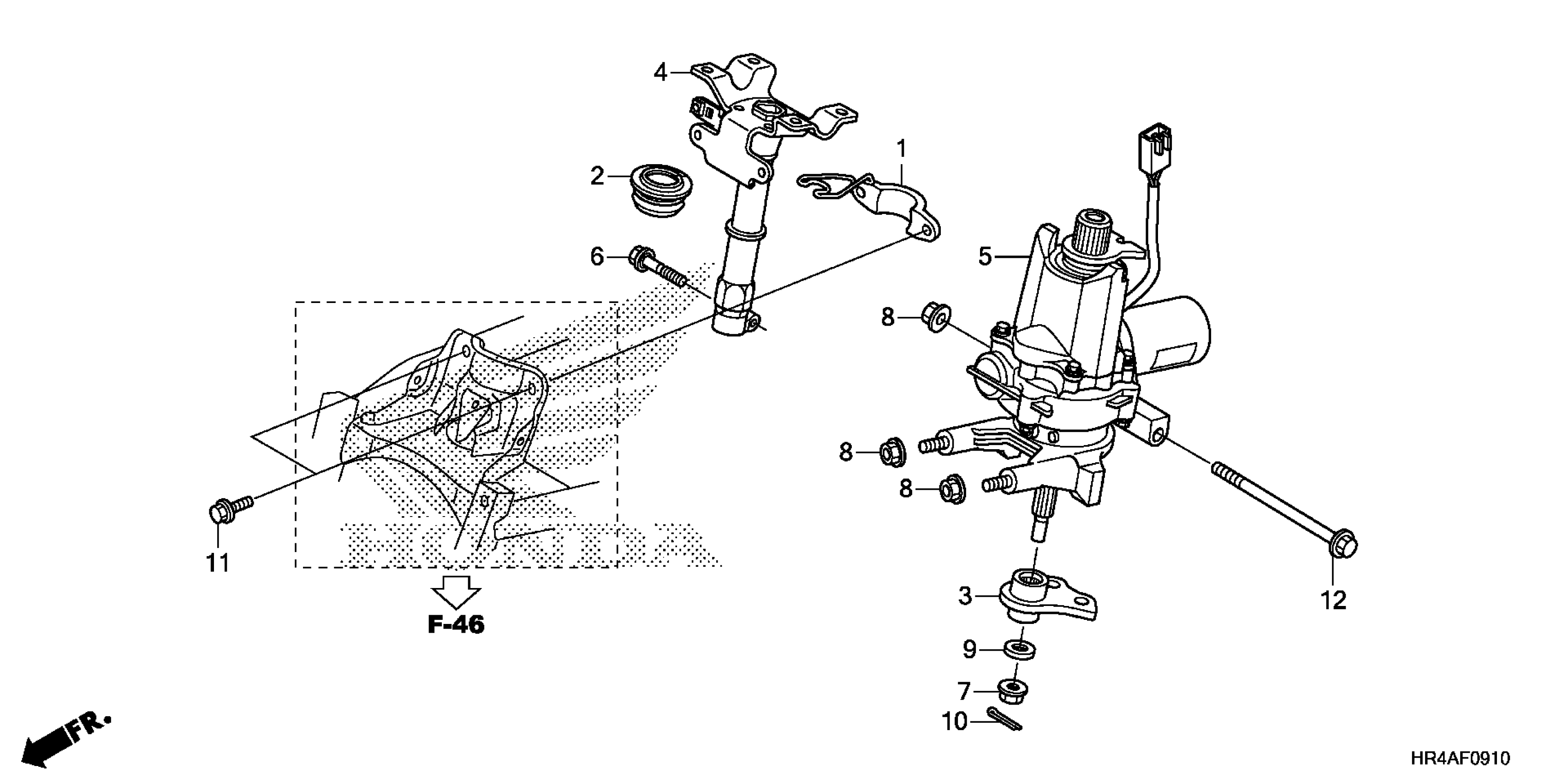

Honda TRX500FM22AC (16) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE44E-G4200001 TO 1HFTE44E-G4299999 STEERING SHAFT (EPS) Diagram

#

Description

Price

1

HOLDER, STEERING SHAFT

53220-HR3-A20

$15.70

2

BUSH, STEERING

53221-HP1-003

$14.49

3

ARM, STEERING

53230-HR4-A50

$28.80

4

SHAFT, STEERING

53310-HR3-A70

$99.18

5

EPS UNIT

53600-HR3-A71

$1,492.34

6

BOLT, FLANGE (10X39)

90103-HP7-A30

$3.47

7

NUT, SELF-LOCK (14MM)

90213-S73-003

$5.15

8

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

9

WASHER, THRUST (14MM)

90417-HA0-000

$3.67

10

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

10

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

10

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

10

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

11

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

12

BOLT, FLANGE (10X160)

95801-10160-00

$4.28
