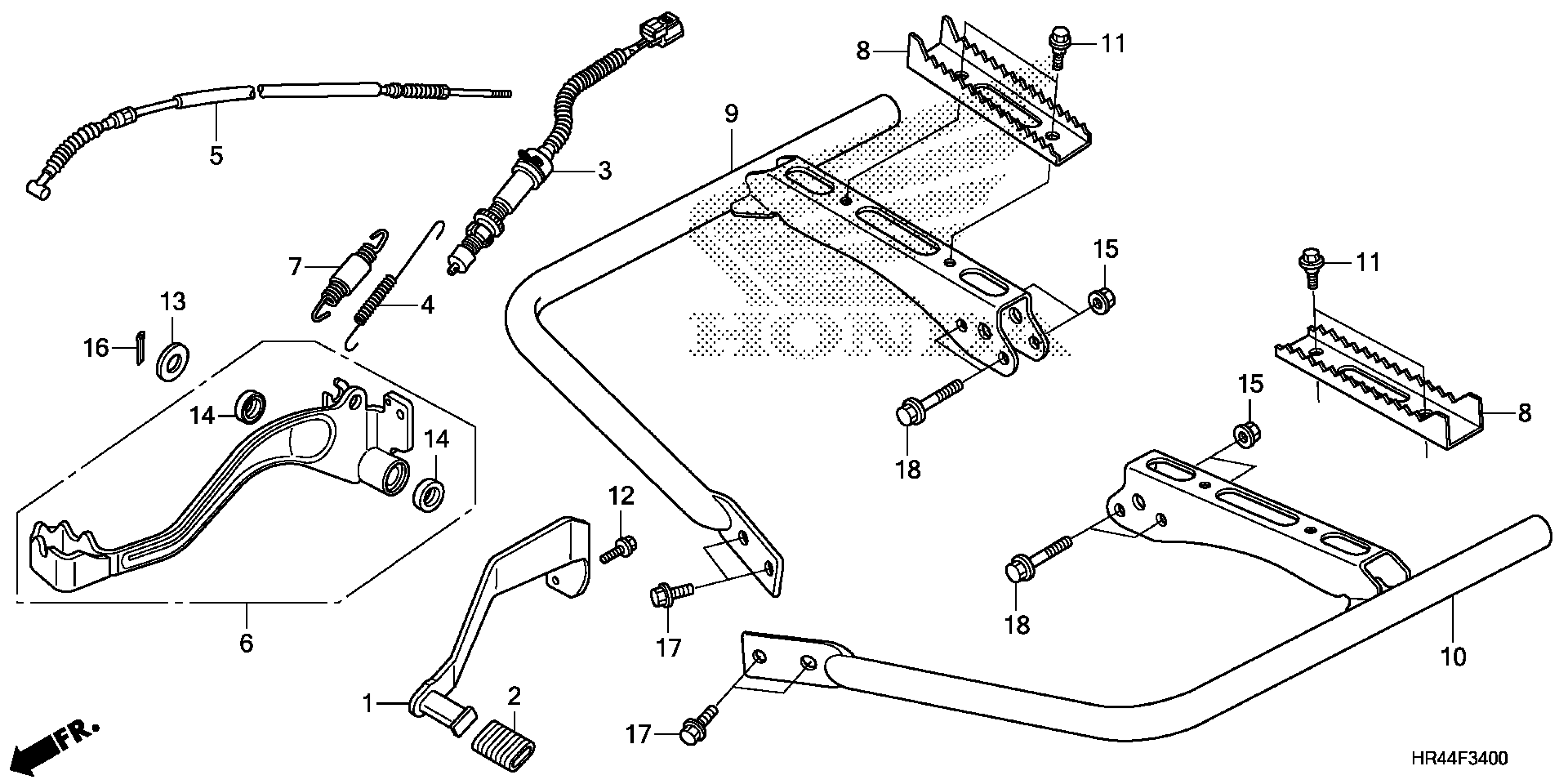

Honda TRX500FM12AC (15) TRX500FM1, USA, VIN# 1HFTE441-F4100001 PEDAL + STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (COO) This part replaces 24700-HR3-A20.

24700-HR3-305

$65.19

1

PEDAL, GEARSHIFT (COO)

24700-HR3-305

$65.19

2

RUBBER, CHANGE PEDAL

24781-371-000

$4.77

3

SWITCH ASSY., RR. STOP

35350-HR3-A21

$16.25

4

SPRING, STOP SWITCH

35357-HP5-600

$2.80

5

CABLE, FOOT BRAKE

43470-HR3-A21

$5.75

6

PEDAL ASSY., BRAKE

46510-HR3-A20

$32.12

7

SPRING ASSY., RR. BRAKE PEDAL

46513-HR3-A20

$4.45

8

STEP

50610-HR3-A20

$4.22

9

BRACKET, R. STEP

50611-HR3-A20

$18.43

10

BRACKET, L. STEP

50612-HR3-A20

Unavailable

11

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

12

BOLT, FLANGE (6X20)

90118-968-000

$3.93

13

WASHER (17.5MM)

90512-303-000

$1.61

14

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.44

14

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.44

15

NUT, FLANGE (8MM)

94050-08000

$0.86

16

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

16

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

16

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

16

PIN, SPLIT (3.0X45)

94201-30450

$0.94

17

BOLT, FLANGE (8X16)

95701-08016-00

$1.64

17

BOLT, FLANGE (8X16) This part replaces 95801-08016-00.

95701-08016-00

$1.64

18

BOLT, FLANGE (8X45)

95801-08045-00

$1.59
