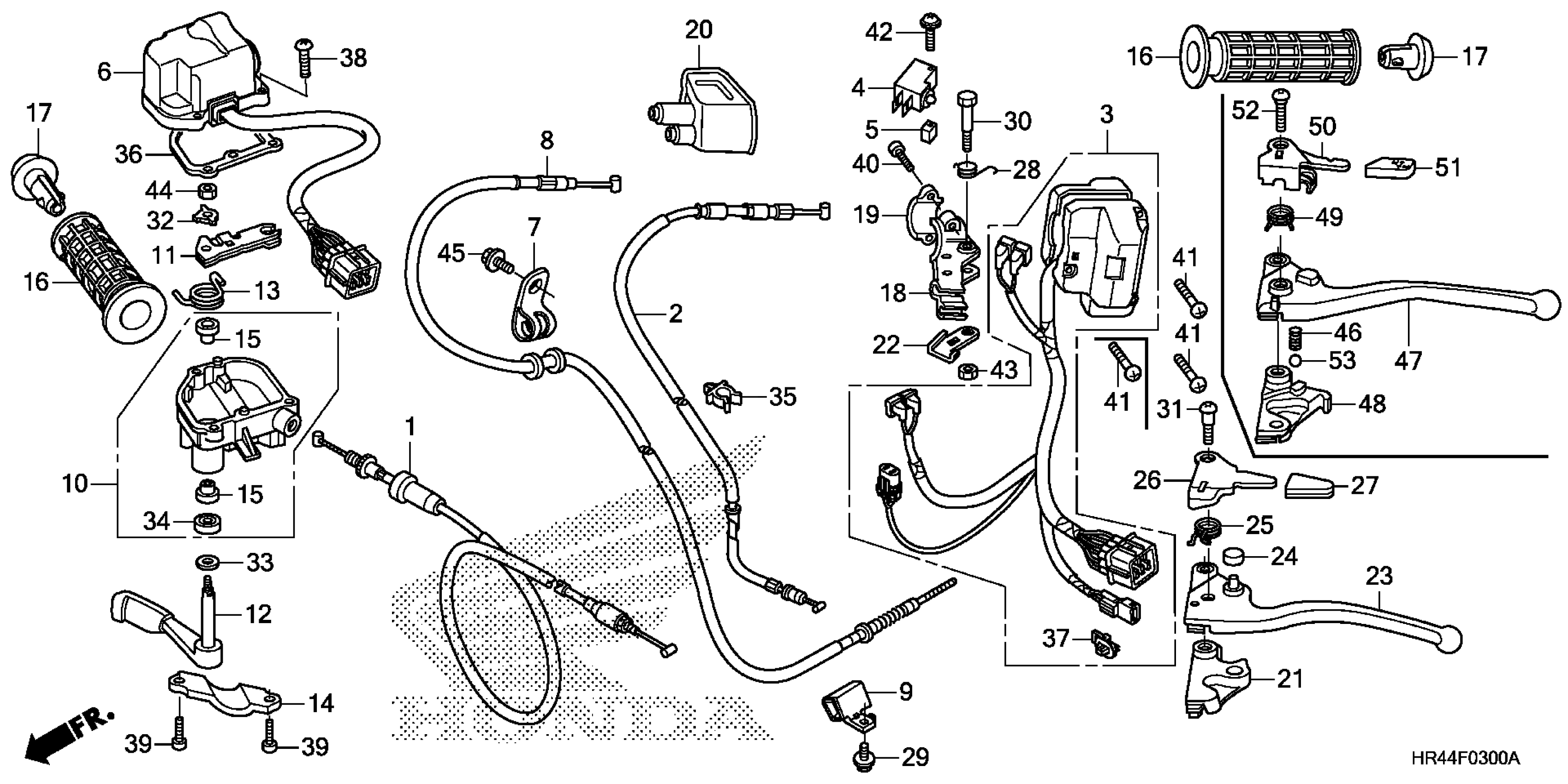

Honda TRX500FM12AC (14) TRX500FM1, USA, VIN# 1HFTE441-E4000001 TO 1HFTE441-E4099999 SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HR3-A21

$12.61

2

CABLE, REVERSE ASSIST

22880-HR3-A21

$12.90

3

SWITCH ASSY., LIGHTING & ENGINE STARTER

35150-HR4-A21

$56.00

4

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

5

COLLAR, STOP SWITCH

35345-HF1-830

$6.01

6

SWITCH ASSY., DIFFERENTIAL LOCK

35400-HR4-A21

$113.36

7

CLAMP, BRAKE CABLE

43452-HR3-A20

$2.70

8

CABLE, HAND BRAKE

43460-HR3-A21

$11.24

9

GUIDE, BRAKE CABLE

50352-HR3-A20

$4.79

10

CASE ASSY., THROTTLE LEVER

53143-HM7-305

$50.26

11

ARM, THROTTLE

53144-HA0-010

$7.72

12

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

13

SPRING, THROTTLE RETURN

53146-HM8-000

$3.10

14

HOLDER, THROTTLE CASE

53147-HM5-850

$3.71

15

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

16

GRIP, HANDLE

53165-HP5-600

$3.83

17

GUARD, HANDLE END

53167-HP5-600

$2.33

18

BRACKET, BRAKE LEVER

53172-HN5-M40

$15.09

19

HOLDER, LEVER BRACKET

53173-376-000

$10.95

20

COVER, L. HANDLE

53177-HN5-M40

$6.45

21

ARM, REVERSE ASSISTANT

53179-HA6-000

$15.17

22

HOLDER, STOP SWITCH SUB CORD

53179-HN5-M40

$2.02

23

LEVER, RR. BRAKE

53180-HA8-770

$29.38

24

CAP, REVERSE PIN

53187-VM6-000

$3.89

25

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

26

LEVER, PARKING BRAKE LOCK

53192-HN0-A00

$12.96

27

CAP, PARKING LEVER

53193-HA0-770

$6.16

28

SPRING, LEVER RETURN

53193-HF1-830

$6.28

29

BOLT, SPECIAL (6MM)

90107-HR3-A20

$2.94

30

BOLT, HANDLE LEVER PIVOT

90114-HM8-000

$9.20

31

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$4.08

32

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

33

WASHER (9X20)

90504-HA0-000

$2.28

34

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

34

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

35

CLIP, TUBE (3.5)

91531-SZ5-003

$4.41

36

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

37

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

38

SCREW, PAN (4X16)

93500-04016-0G

$1.49

39

SCREW, PAN (5X14)

93500-05014-0G

$3.67

40

SCREW, PAN (5X18)

93500-05018-0G

$1.49

41

SCREW, PAN (5X28)

93500-05028-0G

$1.49

42

SCREW-WASHER (4X20)

93893-04020-07

$1.49

43

NUT, HEX. (6MM)

94001-06070-0S

$1.49

44

NUT, HEX. (6MM)

94002-06000-0S

$1.49

45

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
