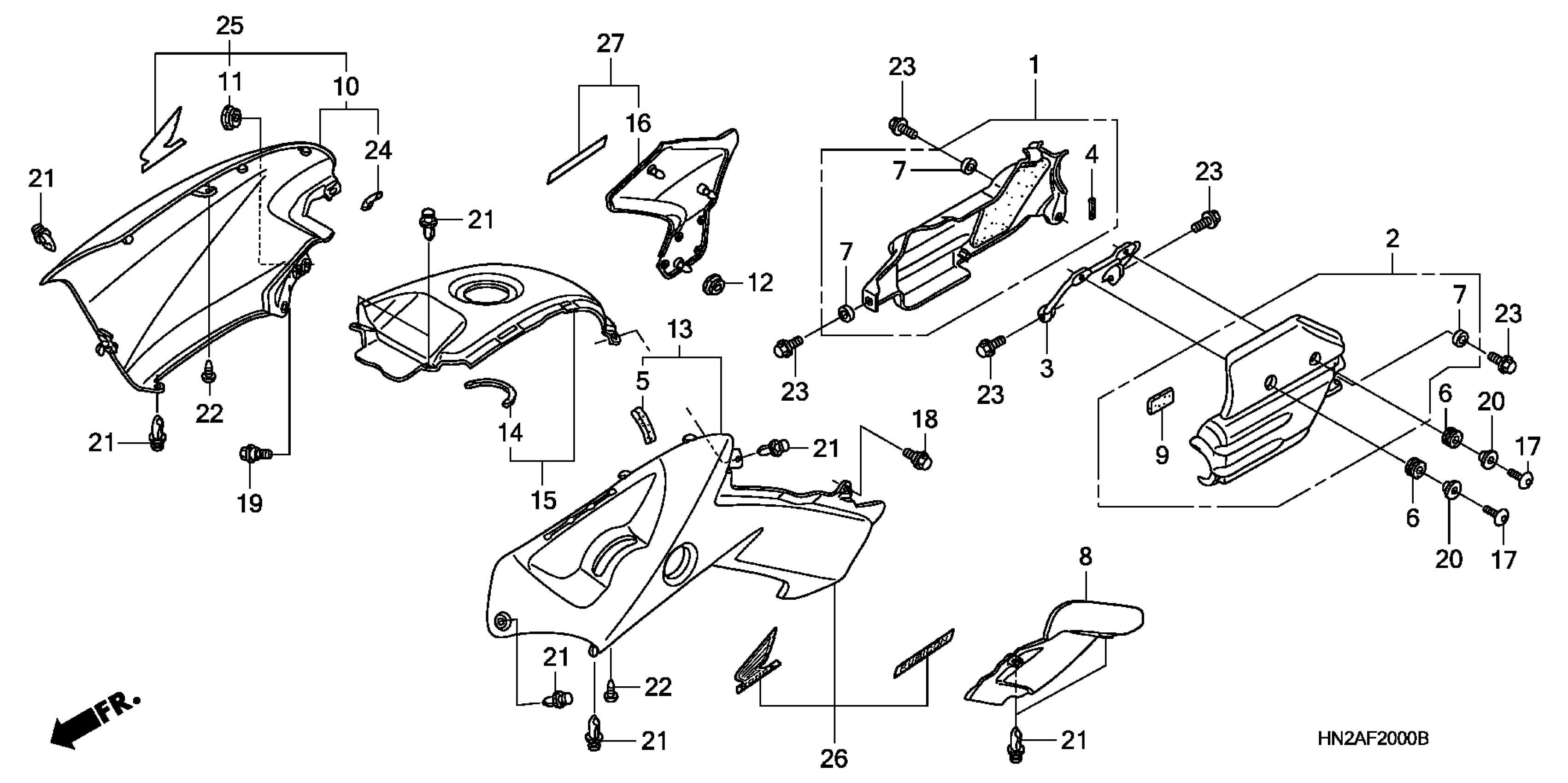

Honda TRX500FGAA (07) RUBICON GPSCAPE, USA, VIN# 1HFTE264-74600001 TO 1HFTE264-74699999 BODY COVER Diagram

#

Description
Price

1

COVER, R. ENGINE SIDE *NH1* (BLACK)

11310-HN2-A60ZA

$36.97

2

COVER, L. ENGINE SIDE *NH1* (BLACK)

11320-HN2-A60ZA

$39.34

3

STAY, L. ENGINE SIDE COVER

11321-HN2-A60

$32.00

4

RUBBER, FUEL TANK PROTECTOR

17511-MR1-300

$3.43

6

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.68

7

COLLAR (6X4)

52156-353-300

$6.04

8

GUIDE, L. RR. ENGINE AIR *NH1* (BLACK)

61896-HP0-A00ZA

$54.07

9

RUBBER, SPACER

80126-GAG-750

$2.19

11

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

12

GROMMET, SIDE COVER

83551-HM5-730

$1.13

14

SEAL, TOP COVER

83701-HP0-A50

$2.97

15

COVER *NH1* This part replaces 83750-HP0-A50ZA.

83750-HP0-305ZA

$30.94

17

SCREW, PAN (6X14)

90118-MR1-000

$2.95

18

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

19

BOLT, FLANGE (6MM)

90111-162-000

$2.66

20

COLLAR, REFLECTOR SETTING

90129-463-770

$3.00

21

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

22

SCREW, TAPPING (4X10)

93903-24220

$0.84

23

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

24

SEAL A, HEAT PROTECTOR

17525-HP0-A50

$8.25

25

COVER SET, R. TANK SIDE (TYPE1) (WL)

83550-HP0-A50ZA

$388.13

25

COVER SET, R. TANK SIDE (TYPE2) (WL)

83550-HP0-A50ZB

$840.87

25

COVER SET, R. TANK SIDE (TYPE2) (WL) | Adventure green G152; This part replaces 83550-HP0-A50ZE.

83550-HP0-A50ZB

$840.87

25

COVER SET, R. TANK SIDE (TYPE1) (WL) | Patriot red R232; This part replaces 83550-HP0-A50ZG.

83550-HP0-A50ZA

$388.13

26

COVER SET, L. TANK SIDE *G152* (WL) (ADVENTURE GREEN) | Adventure green G152;

83650-HN2-A60ZA

$128.37

26

COVER SET, L. TANK SIDE *R232* (WL) (PATRIOT RED) | Patriot red R232;

83650-HN2-A60ZC

Unavailable

27

COVER SET, R. SIDE *G152* (WL) (ADVENTURE GREEN) | Adventure green G152;

83850-HN2-A60ZA

Unavailable

27

COVER SET, R. SIDE *R232* (WL) (PATRIOT RED) | Patriot red R232;

83850-HN2-A60ZC

$138.76
