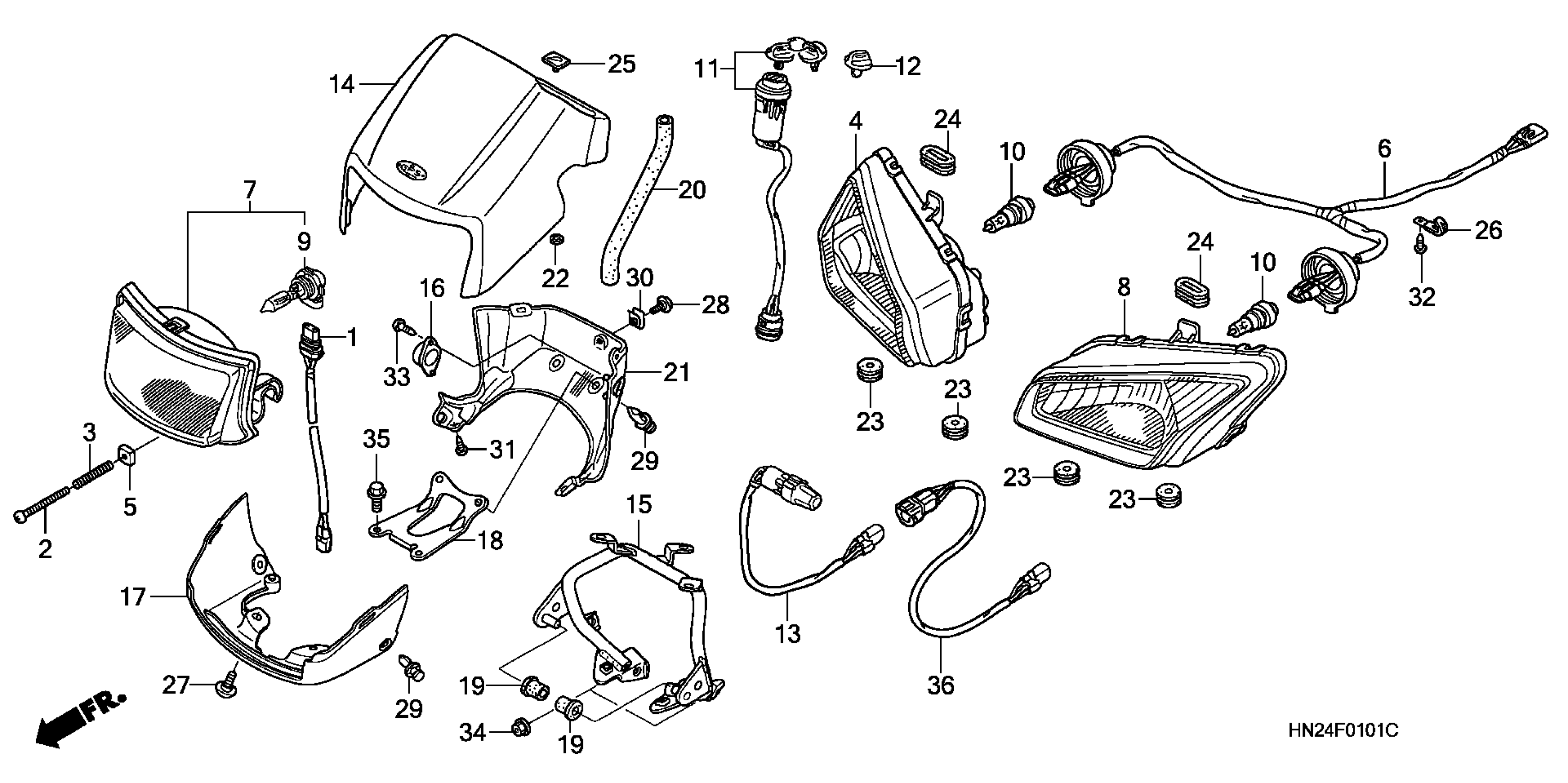

Honda TRX500FGAA (05) RUBICON GPSCAPE, USA, VIN# 1HFTE264-54400001 HEADLIGHT (TRX500FA/FGA'05) Diagram

#

Description
Price

1

SUB-WIRE, ASSIST HEADLIGHT

32500-HP0-A00

$7.68

2

SCREW, PAN (4X45)

33103-KAE-770

$0.94

3

SPRING, BEAM ADJUSTING This part replaces 33107-KAE-770.

33107-KAE-771

$2.41

3

SPRING, BEAM ADJUSTING

33107-KAE-771

$2.41

4

HEADLIGHT UNIT, R.

33110-HP0-A00

Unavailable

5

NUT, BEAM ADJUSTING

33117-KBR-730

$2.80

6

SOCKET, HEADLIGHT

33130-HP0-A00

Unavailable

7

HEADLIGHT ASSY., ASSIST (12V 45W)

33150-HP0-A00

Unavailable

8

HEADLIGHT UNIT, L.

33160-HP0-A00

Unavailable

9

BULB, HEADLIGHT (12V 45W) (HOBBS)

34901-HN2-000

Unavailable

10

BULB, HEADLIGHT (12V 30/30W)

34901-HP0-A01

$30.13

11

SWITCH ASSY., IGNITION

35100-HP0-A00

$45.94

12

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-HF1-881

$8.61

12

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$8.61

13

SWITCH ASSY., MODE SELECT | Use up to Frame SN 54400081

35300-HN2-A21

Unavailable

13

SWITCH ASSY., MODE SELECT | Use from Frame SN 54400082

35300-HN2-A22

Unavailable

14

COVER, METER (UPPER) *G152* (ADVENTURE GREEN)

53205-HN2-A30ZA

$14.61

14

COVER, METER (UPPER) *R232* (PATRIOT RED)

53205-HN2-A30ZB

$14.61

14

COVER, METER (UPPER) *Y151R* (STARBURST YELLOW)

53205-HN2-A30ZC

$13.97

15

STAY, METER COVER

53207-HP0-A00

$128.20

16

HOLDER, MODE SELECT SWITCH

53209-HN2-A20

$6.46

17

COVER, FR. METER (LOWER) *NH1* (BLACK)

53210-HP0-A00ZA

$10.93

18

STAY, METER COVER (LOWER) | Use from Frame SN 54400082

53211-HN2-A20

Unavailable

18

STAY, METER COVER (LOWER) | Use up to Frame SN 54400081

53211-HP0-A00

$36.25

19

BOOT, ASSIST HEADLIGHT

53212-HP0-A00

$2.04

20

TUBE, GUIDE

53213-HP0-A00

$3.99

21

COVER, RR. METER (LOWER) *NH1* (BLACK)

53215-HN2-A20ZA

$10.39

22

NUT, SPEED (4MM)

64206-MJ0-000

$1.38

23

RUBBER, TAILLIGHT MOUNTING

80219-HC4-000

$2.90

24

GROMMET A, SIDE COVER

83601-MB0-000

$4.20

25

EMBLEM, PRODUCT (UEHARA)

86150-HN8-004

$6.84

26

CLIP, TUBE

90010-GE0-710

$1.99

27

SCREW, PAN (6X14)

90106-KBV-000

$3.64

28

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$1.99

29

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

30

NUT, CLIP (5MM)

90677-KAN-961

$3.79

31

SCREW, TAPPING (5X10)

93903-25180

$0.83

32

SCREW, TAPPING (5X12)

93903-25220

$0.83

33

SCREW, TAPPING (5X12)

93904-25220

$0.77

34

NUT, FLANGE (8MM)

94050-08070

$1.36

35

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

36

SUB-HARNESS, MODE SWITCH | Use from Frame SN 54400082

32150-HN2-A20

Unavailable
