Description

Price

1

COIL, IGNITION

30510-HR0-F01

$77.73

2

SPACER, IGNITION COIL

30520-ML7-000

$3.61

3

CAP ASSY., NOISE SUPPRESSOR

30700-MBN-671

$25.53

4

RECTIFIER ASSY., REGULATOR This part replaces 31600-HR0-F01.

31600-MGZ-J01

$172.04

4

RECTIFIER ASSY., REGULATOR

31600-MGZ-J01

$172.04

7

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

8

WIRE HARNESS

32100-HR0-F00

$1,303.63

9

SUB-HARNESS, FR.

32105-HR0-F00

$73.76

10

SUB-HARNESS, RR. FENDER

32115-HR0-F00

$41.16

12

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$13.70

13

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.18

14

SENSOR ASSY., BANK ANGLE

35160-HR0-F01

$84.57

15

COLLAR

35162-MGC-003

$4.15

16

GROMMET

35163-MGC-003

$2.07

17

COVER SET, FUSE

38230-HR0-F00

$25.88

18

RELAY, WATERPROOF (15AX2) (Honda Code 8557167)

38580-HP5-601

$42.59

19

PGM-FI UNIT

38770-HR0-F01

$227.41

20

CUSHION, PGM-FI UNIT

38771-HP5-600

$11.29

23

BRACKET, IGNITION COIL

50305-HR0-F00

$3.10

27

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

28

BOLT, HEX. (6X20)

92101-06020-4J

$1.28

29

BOLT, HEX. (6X22)

92101-06022-0A

$1.43

30

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

31

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

32

BOLT, FLANGE (6X22)

95701-06022-00

$1.66

33

FUSE, MINI (10A)

98200-41000

$1.22

34

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.12

35

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62

36

CLIP, TUBE (135MM) (BLACK)

91558-SM4-003

$5.49

37

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

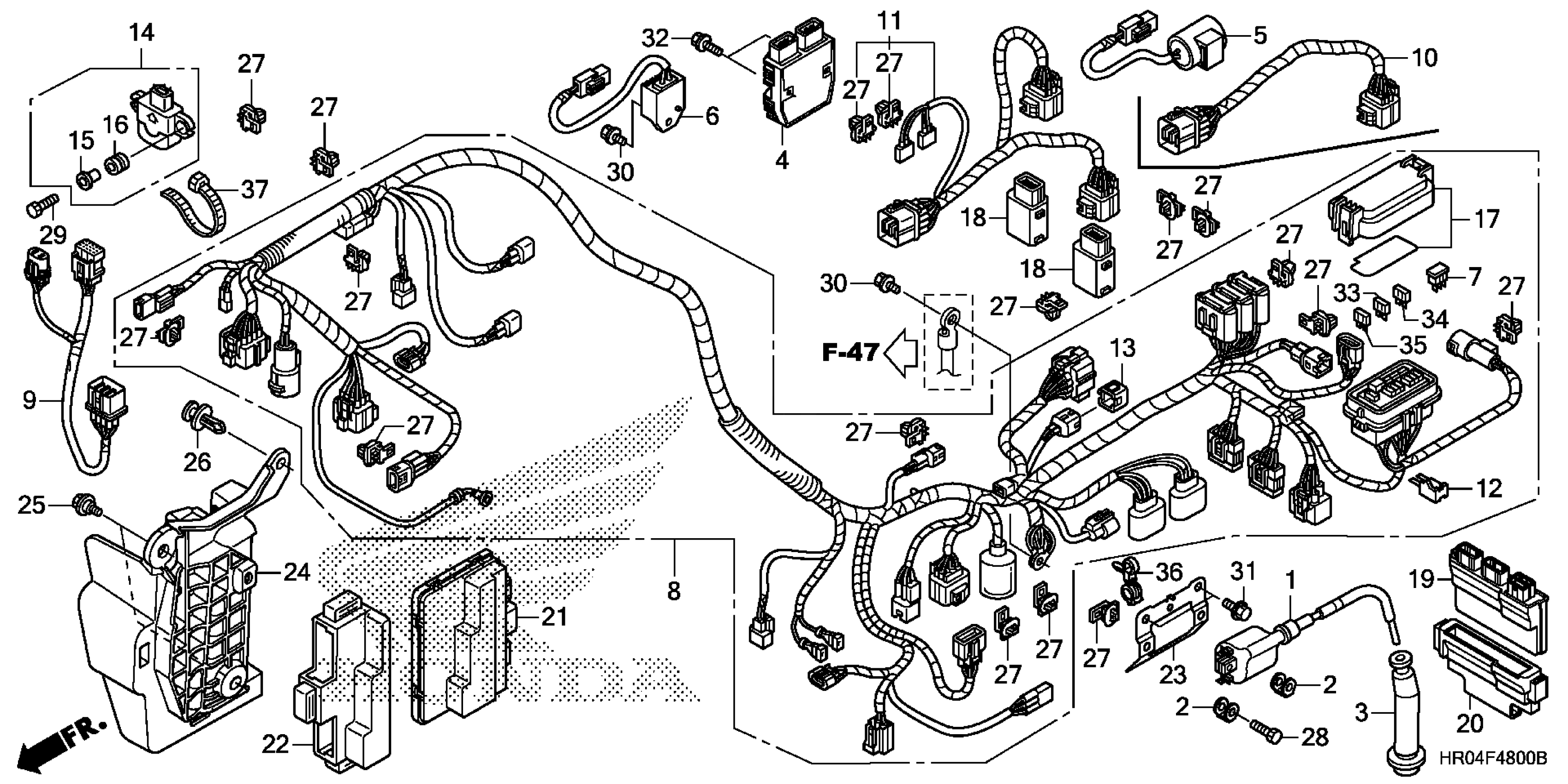

Honda TRX500FEAC (13) FOREMAN 4X4 ES, USA, VIN# 1HFTE387-D4100001 WIRE HARNESS Diagram
