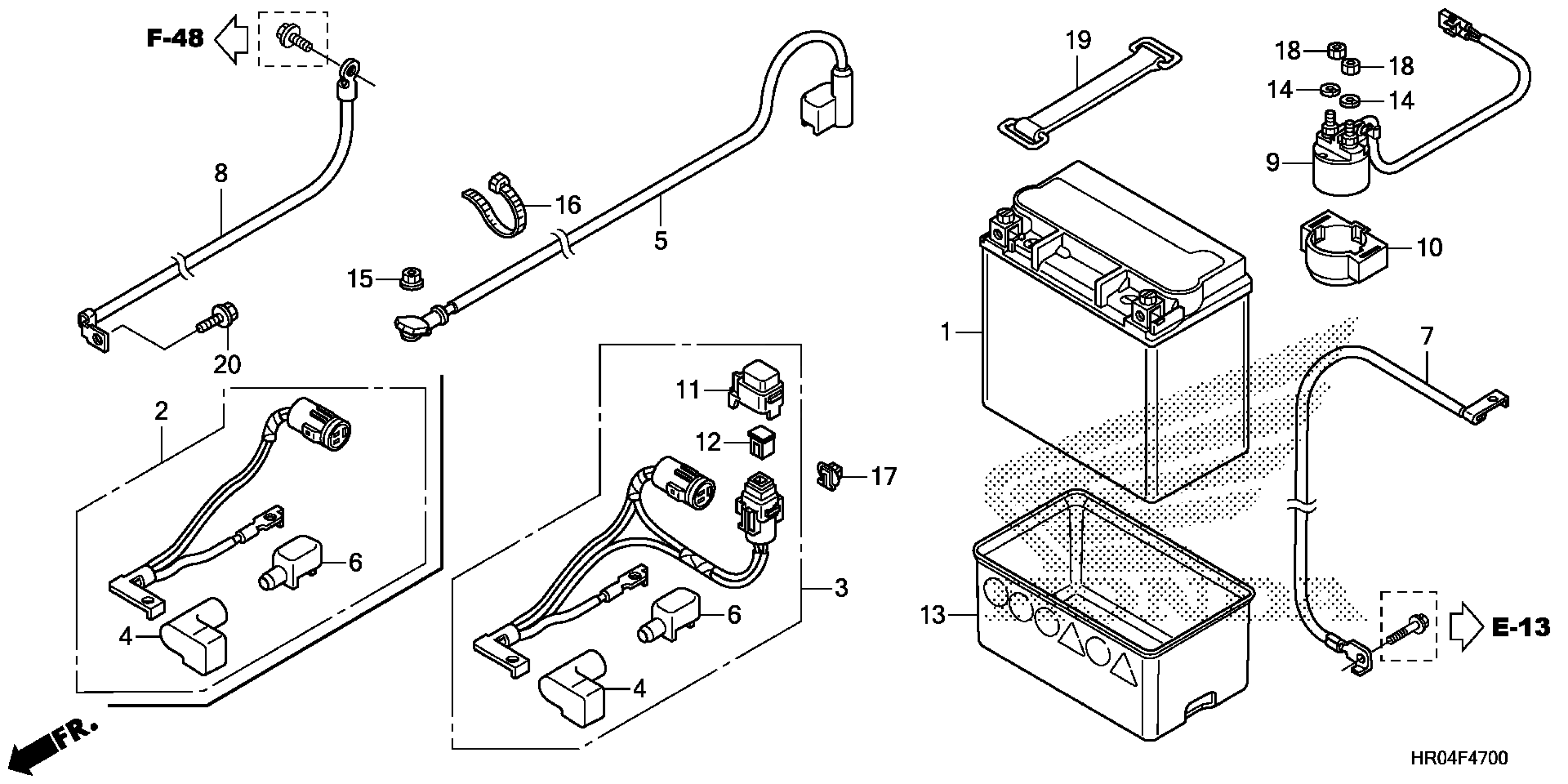

Honda TRX500FEAC (13) FOREMAN 4X4 ES, USA, VIN# 1HFTE387-D4100001 BATTERY Diagram

BATTERY (GYZ16H) This part replaces 31500-HR0-F01.

31500-HR0-F02AH

$112.25

BATTERY (GYZ16H) (YUASA) (MSDS)

31500-HR0-F01AH

$112.25

CABLE, RELAY BATTERY

32401-HP5-A50

$103.02

COVER, BATTERY TERMINAL

32404-HP0-B00

$2.80

CABLE, STARTER MOTOR

32405-HP5-600

$17.51

COVER A, TERMINAL

32412-HW1-670

$2.59

CABLE, BATTERY GROUND

32601-HP5-600

$10.01

CABLE, FRAME GROUND

32603-HR0-F00

$6.57

SWITCH ASSY., STARTER MAGNETIC

35850-HP5-600

$54.74

RUBBER, MAGNETIC SHOCK (Honda Code 8611063)

35856-HP5-600

$4.44

RUBBER, BATTERY

50334-HR0-F00

$7.14

WASHER, SPRING (6MM) (Honda Code 1310549)

90052-ZA0-800

$1.49

NUT-WASHER (6MM)

90071-MB0-000

$1.97

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

NUT, HEX. (6MM)

94002-06390-0S

$1.49

BAND F, BATTERY (155MM)

95012-17001

$7.23

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
