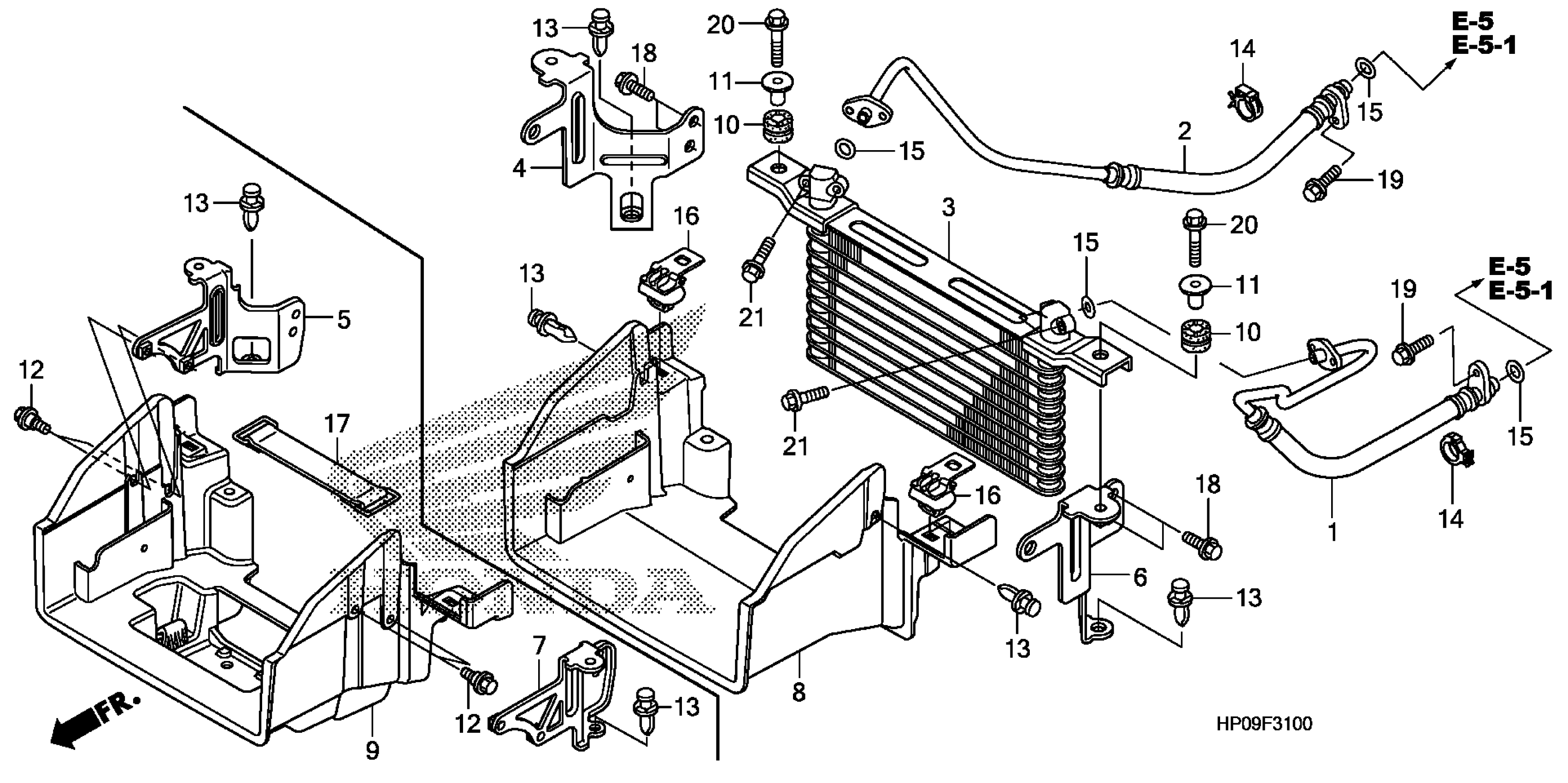

Honda TRX500FEA (09) FOURTRAX FOREMAN ES, USA, VIN# 1HFTE317-94400001 TO 1HFTE317-94499999 OIL COOLER Diagram

HOSE, L. OIL

15540-HP0-B00

$51.23

HOSE, R. OIL

15550-HP0-B00

$41.36

COOLER, OIL

15600-HP0-A51

$254.78

STAY, R. FR. OIL COOLER

15610-HP0-A50

$19.26

STAY, L. FR. OIL COOLER

15620-HP0-A50

$19.26

SPLASH GUARD, OIL COOLER

15640-HP0-A50

$8.43

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.26

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

O-RING (11X2.4)

91314-HN6-000

$1.70

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.42

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

BOLT, FLANGE (6X18)

95701-06018-00

$1.48

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

BOLT, FLANGE (6X20)

96001-06020-00

$1.13
