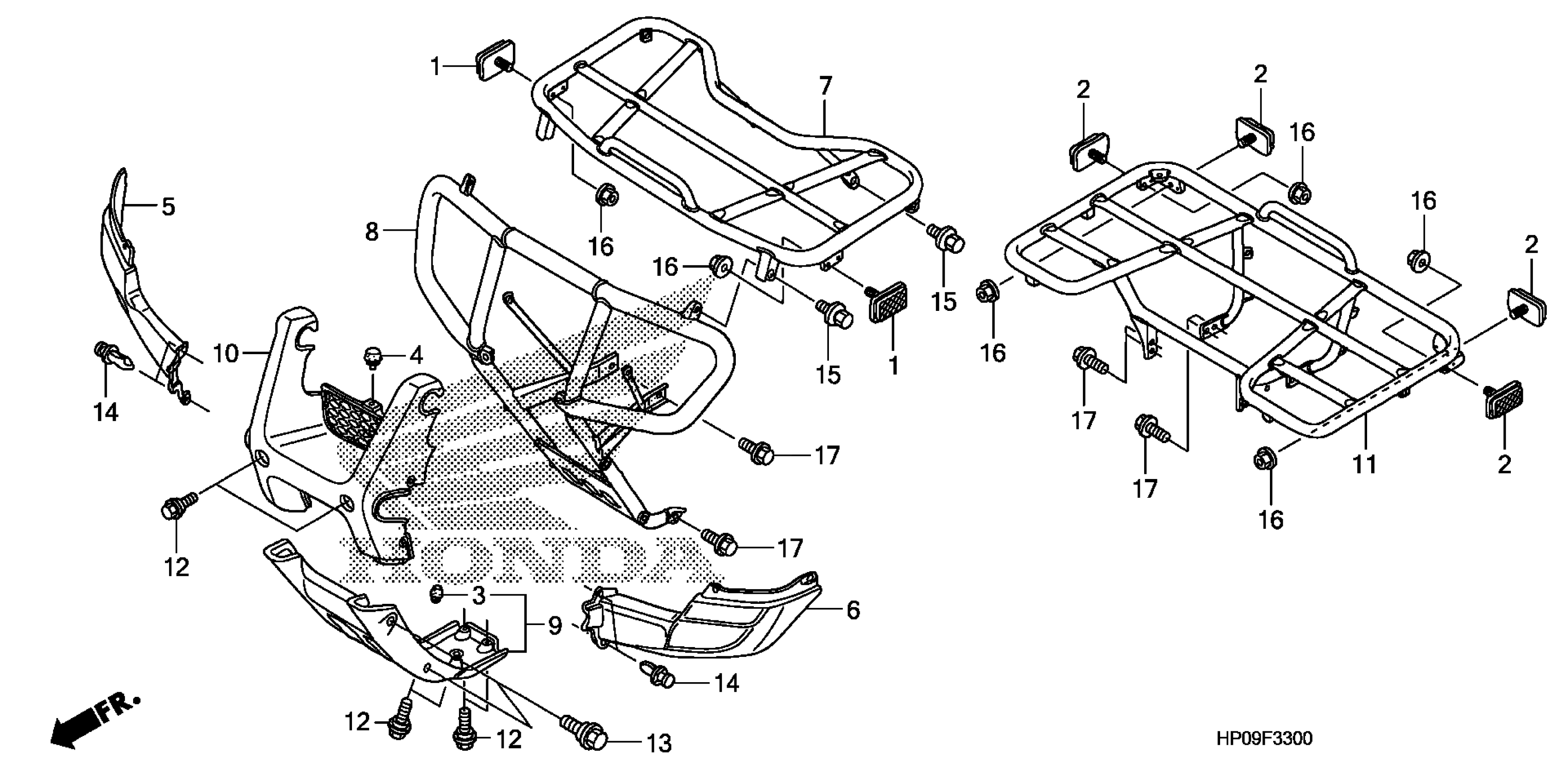

Honda TRX500FEA (09) FOURTRAX FOREMAN ES, USA, VIN# 1HFTE317-94400001 TO 1HFTE317-94499999 CARRIER Diagram

RUBBER A, STOPPER

50352-HM5-730

$22.38

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

GRILLE, R. FR. *NH1* (BLACK)

66300-HP0-A00ZA

$24.44

GRILLE, L. FR. *NH1* (BLACK)

66500-HP0-A00ZA

$24.44

CARRIER, FR. LUGGAGE *NH1* (BLACK)

81100-HP0-A00ZA

$302.97

PIPE, FR. CARRY *NH456M* (SILVER METALLIC) | Adventure green G152; Chaos black metallic-r NHA79MR; Patriot red R232; Natural camo YRA02L;

81150-HP0-A50ZA

$261.29

PLATE ASSY., FR. SKID *NHA44MR* (IMPACT SILVER METALLIC-R) | Adventure green G152; Chaos black metallic-r NHA79MR; Patriot red R232;

81160-HP0-A50ZA

$151.44

GUARD, FR. PIPE *NH1* (BLACK)

81170-HN2-B70ZA

$11.67

CARRIER, RR. LUGGAGE *NH1* (BLACK)

81300-HP0-A00ZA

$1,557.21

BOLT, FLANGE (6MM)

90111-187-000

$5.59

BOLT, FLANGE (8X18)

90186-GBC-000

$1.49

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

BOLT-WASHER (8X16)

93401-08016-07

$2.00

BOLT, FLANGE (8X16)

95701-08016-07

$1.80
