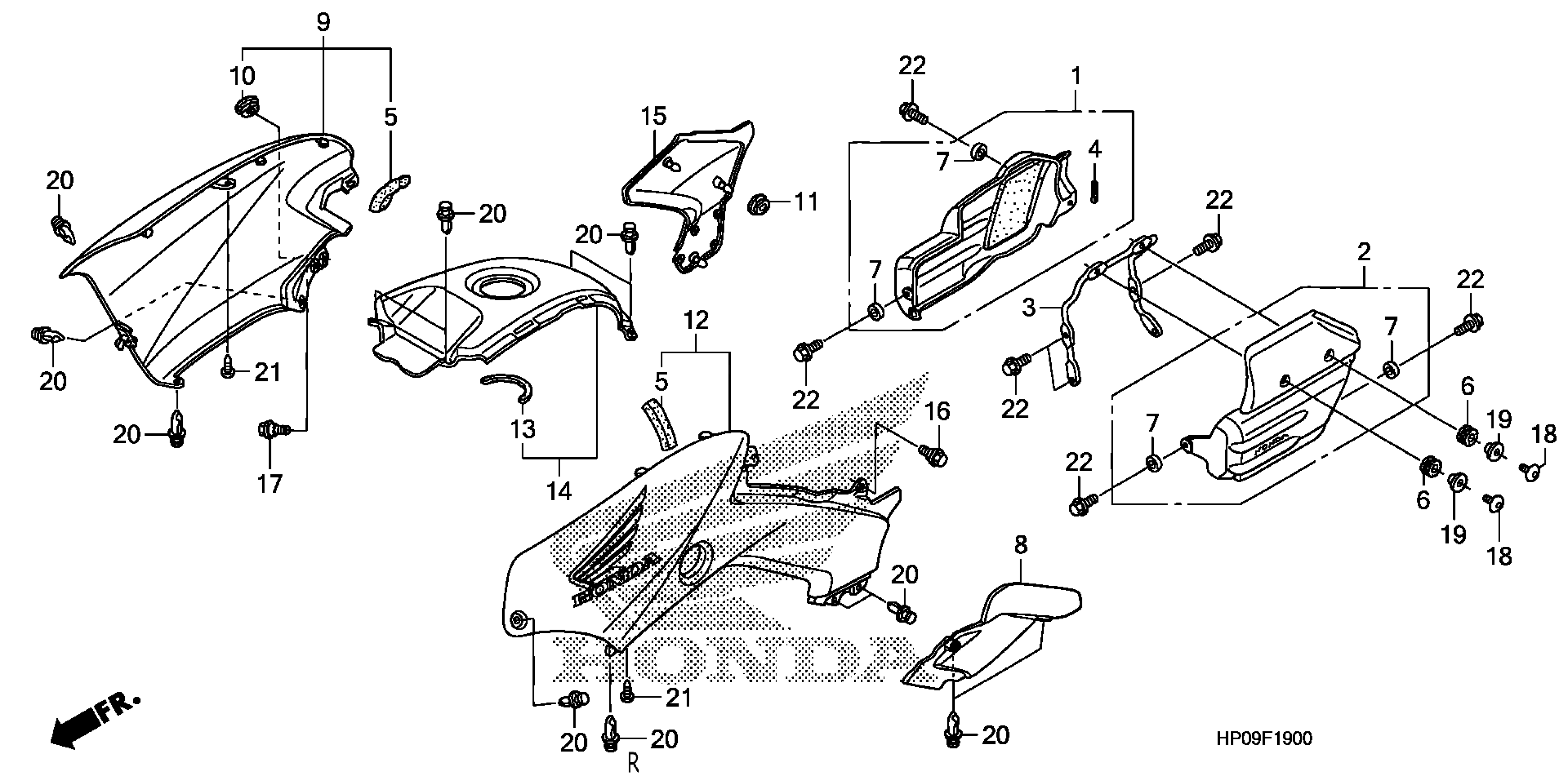

Honda TRX500FEA (09) FOURTRAX FOREMAN ES, USA, VIN# 1HFTE317-94400001 TO 1HFTE317-94499999 BODY COVER Diagram

#

Description
Price

1

COVER, R. ENGINE SIDE *NH1* (BLACK)

11310-HP0-A50ZA

$50.66

2

COVER, L. ENGINE SIDE *NH1* (BLACK)

11320-HP0-A50ZA

$36.00

3

STAY, L. ENGINE SIDE COVER

11321-HP0-A00

$7.20

4

RUBBER, FUEL TANK PROTECTOR

17511-MR1-300

$3.70

5

SEAL A, HEAT PROTECTOR

17525-HP0-A50

$9.20

6

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.90

7

COLLAR (6X4)

52156-353-300

$6.32

8

GUIDE, L. RR. ENGINE AIR *NH1* (BLACK)

61896-HP0-A00ZA

$60.28

9

COVER SET, R. TANK SIDE *G152* (WL) (ADVENTURE GREEN) | Adventure green G152;

83550-HN2-B40ZA

$210.38

9

COVER SET, R. TANK SIDE *NHA79MR* (WL) (CHAOS BLACK METALLIC-R) | Chaos black metallic-r NHA79MR; Adventure green G152;

83550-HN2-B40ZB

$615.31

9

COVER SET, R. TANK SIDE *R232* (WL) (PATRIOT RED) | Patriot red R232;

83550-HN2-B40ZC

$188.61

10

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

11

GROMMET, SIDE COVER

83551-HM5-730

$1.49

12

COVER, L. TANK SIDE *G152* (ADVENTURE GREEN) | Adventure green G152;

83650-HP0-H00ZA

$889.95

12

COVER, L. TANK SIDE *NHA79MR* (WL) (CHAOS BLACK METALLIC-R) | Chaos black metallic-r NHA79MR;

83650-HP0-H00ZB

$174.95

12

COVER, L. TANK SIDE *R232* (PATRIOT RED) | Patriot red R232;

83650-HP0-H00ZC

$290.49

13

SEAL, TOP COVER

83701-HP0-A50

$3.31

14

COVER *NH1* This part replaces 83750-HP0-A50ZA.

83750-HP0-305ZA

$31.43

15

COVER, R. SIDE *G152* (ADVENTURE GREEN) | Adventure green G152;

83800-HP0-A00ZA

$82.60

15

COVER, R. SIDE *R232* (PATRIOT RED) | Patriot red R232;

83800-HP0-A00ZB

$78.05

15

COVER, R. SIDE *NHA79MR* (CHAOS BLACK METALLIC-R) | Chaos black metallic-r NHA79MR;

83800-HP0-A00ZG

$83.10

16

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.66

17

BOLT, FLANGE (6MM)

90111-162-000

$2.89

18

SCREW, PAN (6X14)

90118-MR1-000

$3.10

19

COLLAR, REFLECTOR SETTING

90129-463-770

$3.15

20

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

21

SCREW, TAPPING (4X10)

93903-24220

$1.49

22

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
