Description

Price

1

CLIP, OIL DRAIN TUBE

15707-634-000

$4.78

2

PETCOCK ASSY.

16950-HP0-A01

$73.99

3

SCREEN SET, FUEL STRAINER

16952-HP0-A01

$22.50

4

TUBE, FUEL

16955-HP0-A00

$9.41

5

LEVER, PETCOCK NH1 (BLACK)

16963-HP0-A00ZA

$11.28

6

O-RING (11.8X3.55)

16997-467-000

$2.01

7

TANK, FUEL

17510-HP0-A00

$222.58

8

PLATE, UNIT SET

17515-GBL-760

$4.49

9

PROTECTOR, TANK HEAT (LOWER)

17515-HP0-A00

$21.31

10

RUBBER, RR. SEAL

17516-HP0-A00

$4.78

11

RUBBER, L. FR. SEAL

17517-HP0-A00

$2.41

12

RUBBER, R. FR. SEAL

17518-HP0-A00

$2.20

13

TUBE, FUEL CAP BREATHER

17521-HA2-670

$6.51

14

CAP ASSY., FUEL TANK

17620-HF7-000

$49.53

15

GASKET, FUEL CAP

17624-HF7-000

$7.28

16

COLLAR, FUEL TANK SETTING

17626-467-000

$4.45

17

RUBBER, MUFFLER

18334-KA3-830

$3.62

18

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

19

FUEL UNIT SET This part replaces 37080-HP0-A00.

37080-HP0-A01

$75.97

20

GASKET, BASE

37801-GA7-700

$4.81

21

RUBBER, TAILLIGHT MOUNTING

80219-HC4-000

$2.90

22

BOLT, SPECIAL (6X32)

90101-HM8-000

$4.09

23

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.33

24

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

25

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.23

26

CLIP, WIRE HARNESS

91405-MG1-000

$2.20

27

CLIP, WASHER MOUTH

91504-SD5-901

$4.09

28

CLIP, TUBE (B12)

95002-02120

Unavailable

29

RUBBER C, STAND STOPPER

95011-63000

$3.64

30

BAND A, BATTERY

95012-11001

$2.77

31

BOLT, FLANGE (6X10)

96001-06010-00

$1.48

32

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

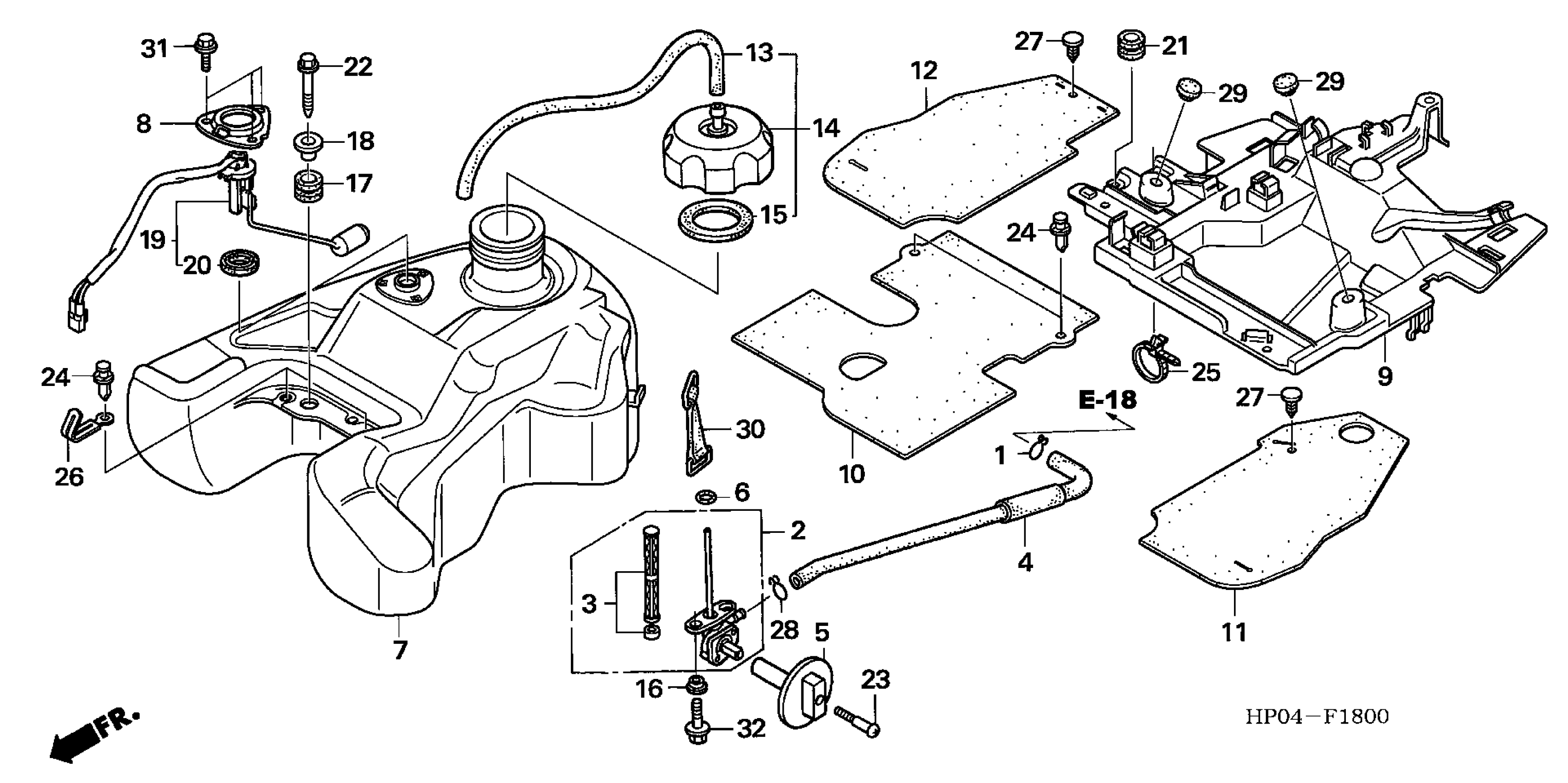

Honda TRX500FEA (06) FOURTRAX FOREMAN 4X4 ES, USA, VIN# 1HFTE317-64100001 FUEL TANK Diagram
