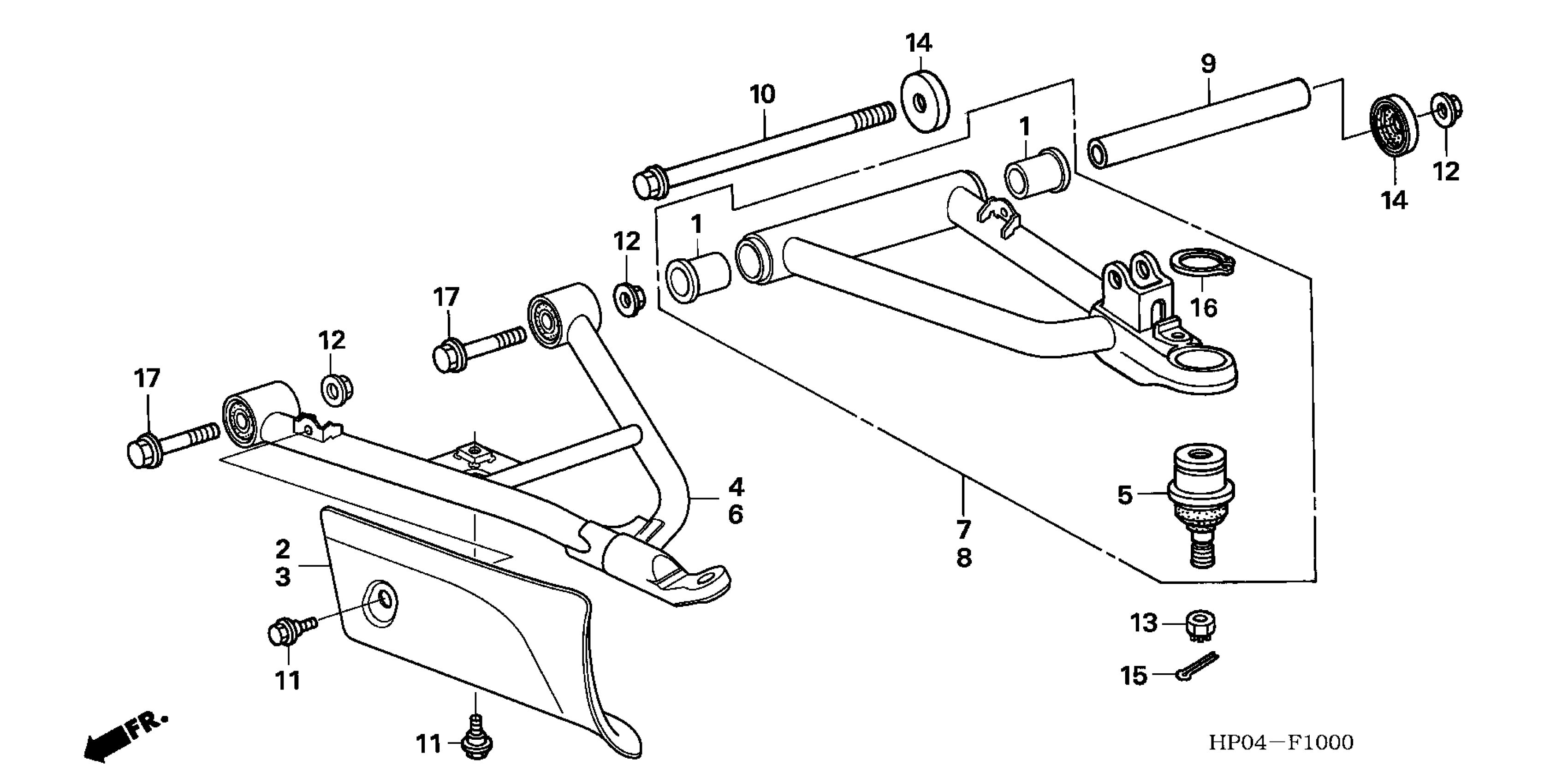

Honda TRX500FEA (06) FOURTRAX FOREMAN 4X4 ES, USA, VIN# 1HFTE317-64100001 FRONT ARM Diagram

#

Description
Price

1

BUSH, ARM (UPPER)

51108-HP0-A00

$17.10

2

GUARD, R. FR. INBOARD

51315-HN2-B70

$9.54

2

GUARD, R. FR. INBOARD This part replaces 51315-HP0-A00.

51315-HN2-B70

$9.54

3

GUARD, L. FR. INBOARD This part replaces 51316-HP0-A00.

51316-HN2-B70

$9.54

4

ARM ASSY., R. FR. (LOWER)

51350-HP0-A00

$130.92

5

JOINT A, ARM BALL This part replaces 51355-HN0-A01.

51375-HP5-601

$20.53

5

JOINT A, ARM BALL

51375-HP5-601

$20.53

6

ARM ASSY., L. FR. (LOWER)

51360-HP0-A00

$134.19

7

ARM ASSY., R. FR. (UPPER) This part replaces 51370-HP0-A00.

51370-HP0-B00

$143.76

7

ARM ASSY., R. FR. (UPPER)

51370-HP0-B00

$143.76

8

ARM ASSY., L. FR. (UPPER) This part replaces 51380-HP0-A00.

51380-HP0-B00

$147.36

8

ARM ASSY., L. FR. (UPPER)

51380-HP0-B00

$147.36

9

COLLAR, ARM (UPPER)

51464-HN2-000

$11.64

10

BOLT, ENGINE HANGER

90103-162-000

$12.16

11

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

12

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

13

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

14

SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK)

91262-MA0-015

$11.15

15

PIN, SPLIT (3.0X18)

94201-30180

$1.49

16

CIRCLIP (OUTER) (34MM)

94514-34000

$1.85

17

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

17

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
