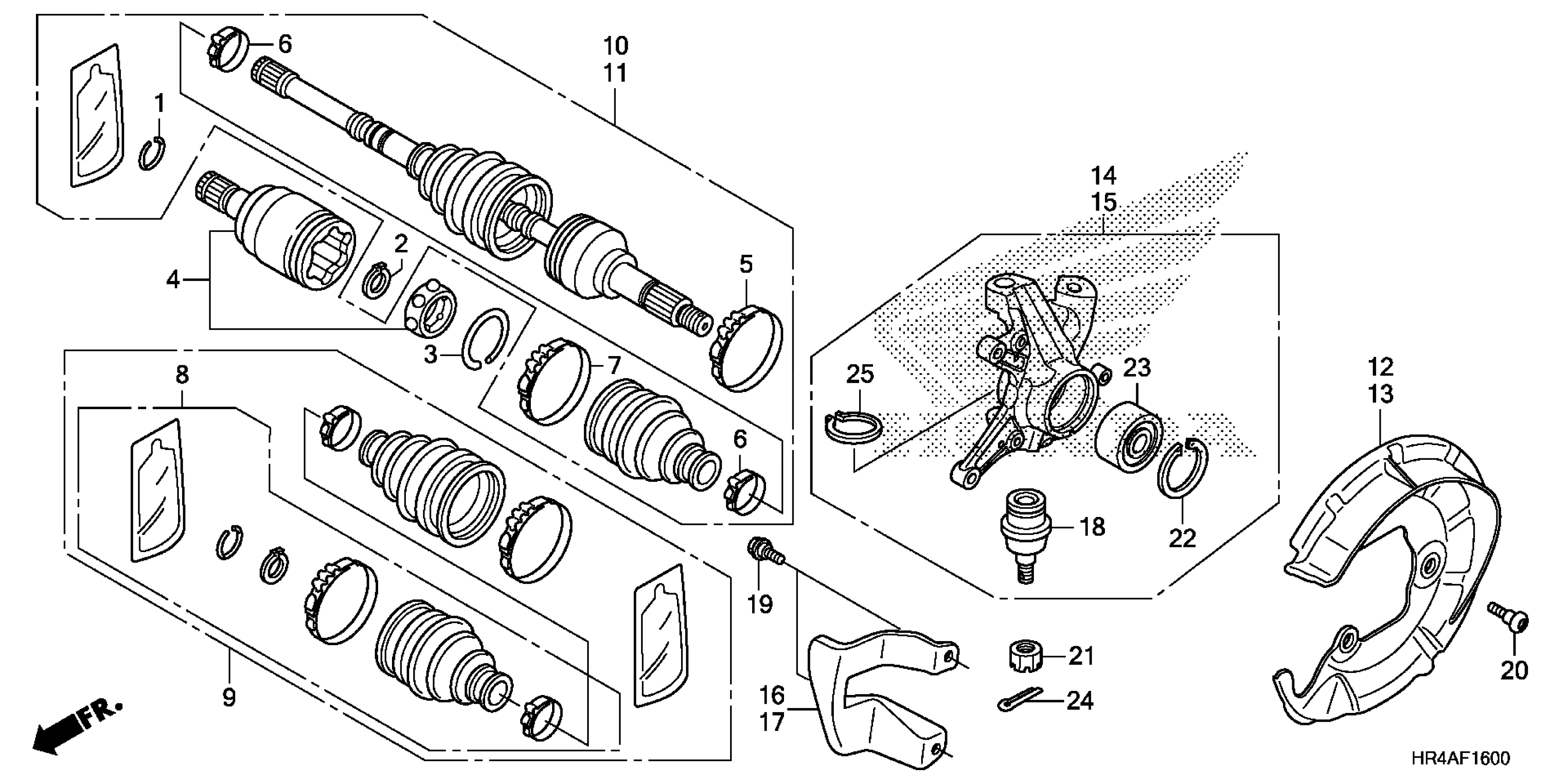

Honda TRX500FE2AC (17) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE44H-H4300001 FRONT KNUCKLE@FRONT DRIVE SHAFT Diagram

RING, SNAP

42206-HA7-671

$1.49

CIRCLIP

42209-HC5-003

$1.49

RING, SNAP

44207-HN8-A41

$7.95

JOINT, INBOARD

44220-HR3-A21

$107.61

BAND, OUTBOARD BOOT (NTN)

44225-HR3-A21

$4.25

BAND, SHAFT BOOT (NTN)

44226-HR3-A21

$3.75

BAND, INBOARD BOOT (NTN)

44228-HR3-A21

$3.80

BOOT SET, INBOARD

44230-HR3-A22

$77.34

BOOT SET

44240-HR3-A22

$85.32

DRIVESHAFT SET, R. FR.

44250-HR4-A22

$173.70

DRIVESHAFT SET, L. FR.

44350-HR4-A22

$173.40

SPLASH GUARD, R.

45255-HR3-A20

$6.20

SPLASH GUARD, L.

45256-HR3-A20

$6.20

KNUCKLE ASSY., R. FR.

51200-HR3-A20

$120.70

KNUCKLE ASSY., L. FR.

51250-HR3-A20

$120.70

GUARD, R. FR. OUTBOARD

51325-HR3-A20

$5.64

GUARD, L. FR. OUTBOARD

51326-HR3-A20

$5.12

JOINT A, ARM BALL

51375-HP5-601

$20.53

BOLT, FLANGE (6MM)

90111-187-000

$5.59

BOLT, SOCKET (6X15)

90114-HP0-A00

$2.11

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

CIRCLIP, SPECIAL (INNER) (56MM)

90651-HR3-A20

$8.96

BEARING, ANGULAR BALL (27X55X32)

91051-HR3-A21

$78.45

PIN, SPLIT (3.0X18)

94201-30180

$1.49

CIRCLIP (OUTER) (34MM)

94514-34000

$1.85
