Description

Price

1

COVER, THROTTLE BODY

16721-HR0-F00

$7.89

2

JOINT ASSY., FUEL

16958-HN8-A61

$10.56

3

O-RING (11.8X3.55)

16997-467-000

$2.11

4

CLIP, OIL DRAIN TUBE

17316-611-000

$9.23

5

TRAY, FUEL TANK

17507-HR0-F00

$13.08

6

TUBE, FUEL TRAY

17508-HR0-F00

Unavailable

7

TANK, FUEL

17510-HR0-F00

$331.20

8

PLATE, UNIT SET

17515-GBL-760

$4.93

9

PROTECTOR, TANK HEAT (LOWER)

17515-HR0-F00

$18.03

10

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

11

CAP ASSY., FUEL TANK

17620-HP5-600

Unavailable

12

GASKET, FUEL CAP (Honda Code 4067716)

17624-HF7-000

$7.81

13

RUBBER, MUFFLER

18334-KA3-830

$3.89

14

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

15

FUEL UNIT This part replaces 37800-HR0-F01.

37800-HR0-F02

$104.75

15

FUEL UNIT

37800-HR0-F02

$104.75

16

GASKET, BASE

37801-GA7-700

$5.17

17

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.45

18

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

19

JOINT, TUBE

91463-393-780

$1.80

20

CLAMP (18.5MM)

91546-SP0-A01

$5.72

21

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

22

RUBBER C, STAND STOPPER

95011-63000

$3.90

23

BAND A, BATTERY

95012-11001

$2.92

24

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

25

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

26

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

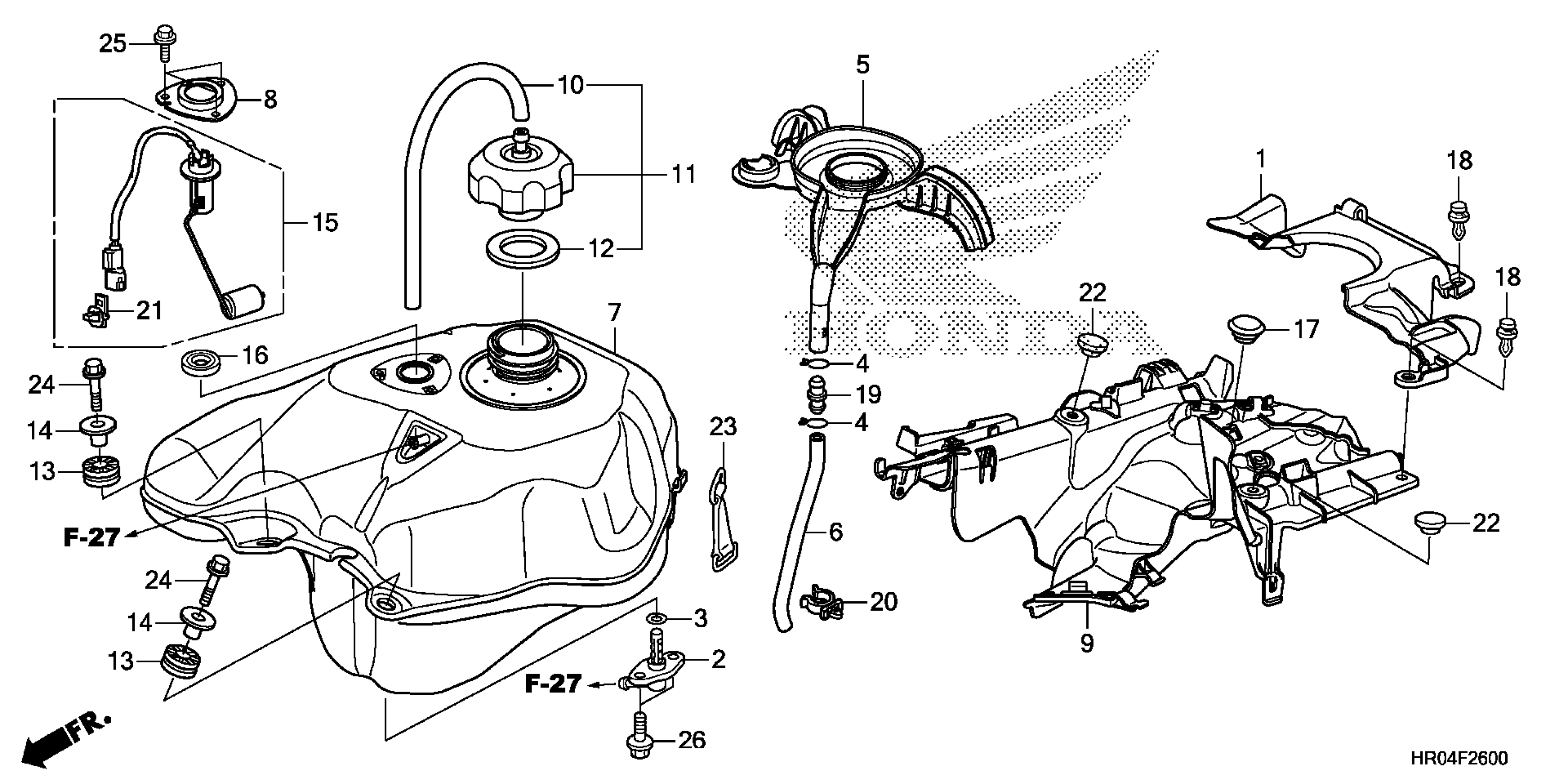

Honda TRX500FE2AC (13) FOREMAN 4X4 ES, USA, VIN# 1HFTE385-D4100001 FUEL TANK Diagram
