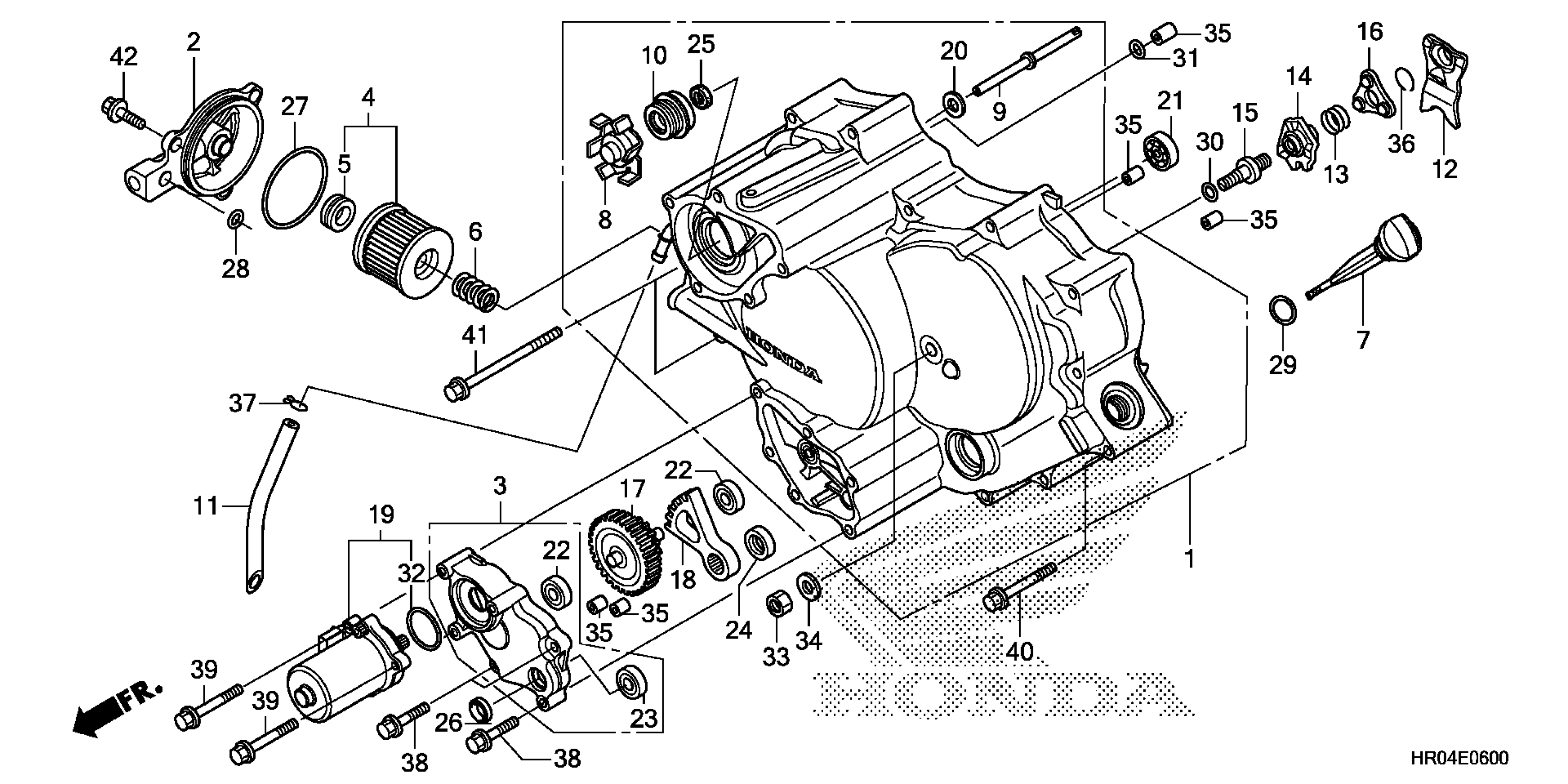

Honda TRX500FE2AC (13) FOREMAN 4X4 ES, USA, VIN# 1HFTE385-D4100001 FRONT CRANKCASE COVER Diagram

#

Description
Price

1

COVER ASSY., FR. CRANKCASE

11300-HR0-F00

$290.88

2

COVER, OIL FILTER

11333-HR0-F00

$66.05

3

COVER, REDUCTION GEAR

11335-HR0-F00

$64.34

4

ELEMENT, OIL FILTER

15412-HM5-A10

$5.52

5

RUBBER, FILTER

15413-MC8-000

Unavailable

6

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.05

7

DIPSTICK, OIL

15650-HP5-600

$10.47

8

IMPELLER, WATER PUMP

19215-MEG-300

$23.57

9

SHAFT, WATER PUMP

19216-HP5-600

$31.99

10

SEAL, MECHANICAL

19217-MAL-300

$48.70

11

HOSE, DRAIN

19507-HP5-600

$1.19

12

PLATE, CLUTCH CAM

22821-HP5-600

$13.53

13

SPRING, CAM PLATE SIDE

22825-HP5-600

$2.75

14

PLATE, CLUTCH LIFTER

22830-HP5-600

$16.16

15

BOLT, CLUTCH ADJUSTING

22841-HR0-F00

$7.03

16

RETAINER, BALL

22860-HP5-600

$7.57

17

GEAR, REDUCTION SHAFT (10T/84T)

24615-HP5-601

Unavailable

18

GEAR, SHIFT REDUCTION (70T)

24617-HP5-601

Unavailable

19

MOTOR ASSY., CONTROL This part replaces 31300-HP5-601.

31300-HP5-602

$236.27

20

WASHER, THRUST (12X23X2)

90599-767-C10

$2.54

21

BEARING, RADIAL BALL (15X32X9)

91009-HF1-671

$20.57

22

BEARING, RADIAL BALL (608ZZ)

91011-HP5-601

$5.78

23

BEARING, RADIAL BALL (699ZZ)

91050-HN7-003

$7.28

24

OIL SEAL (12X22X5)

91201-965-000

$3.87

25

OIL SEAL (12X26X7) (ARAI)

91201-MV4-003

$4.90

26

OIL SEAL (9X18X7) (ARAI)

91201-PA9-004

$5.85

27

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.31

28

O-RING (11X1.9) (NOK) O-RING (1.9X11)

91303-HA0-004

$1.97

29

O-RING (18X3) (ARAI)

91307-KF0-003

Unavailable

30

O-RING (8.2X1.5)

91308-MC7-000

$2.13

31

O-RING (7.8X1.9) (NOK)

91313-MN5-004

$2.01

32

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.65

33

NUT, HEX. (8MM)

94030-08000

Unavailable

34

WASHER, PLAIN (8MM)

94102-08800

$0.87

35

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.76

36

CLIP, PISTON PIN (15MM)

94601-15000

$0.94

37

CLIP, TUBE (B12.5)

95002-02130

$1.06

38

BOLT, FLANGE (6X30)

95701-06030-00

$1.88

39

BOLT, FLANGE (6X55)

95701-06055-00

$2.75

40

BOLT, FLANGE (6X60)

95701-06060-00

$0.29

41

BOLT, FLANGE (6X110)

95701-06110-00

$4.32

42

BOLT, FLANGE (6X18)

96001-06018-00

$1.79
