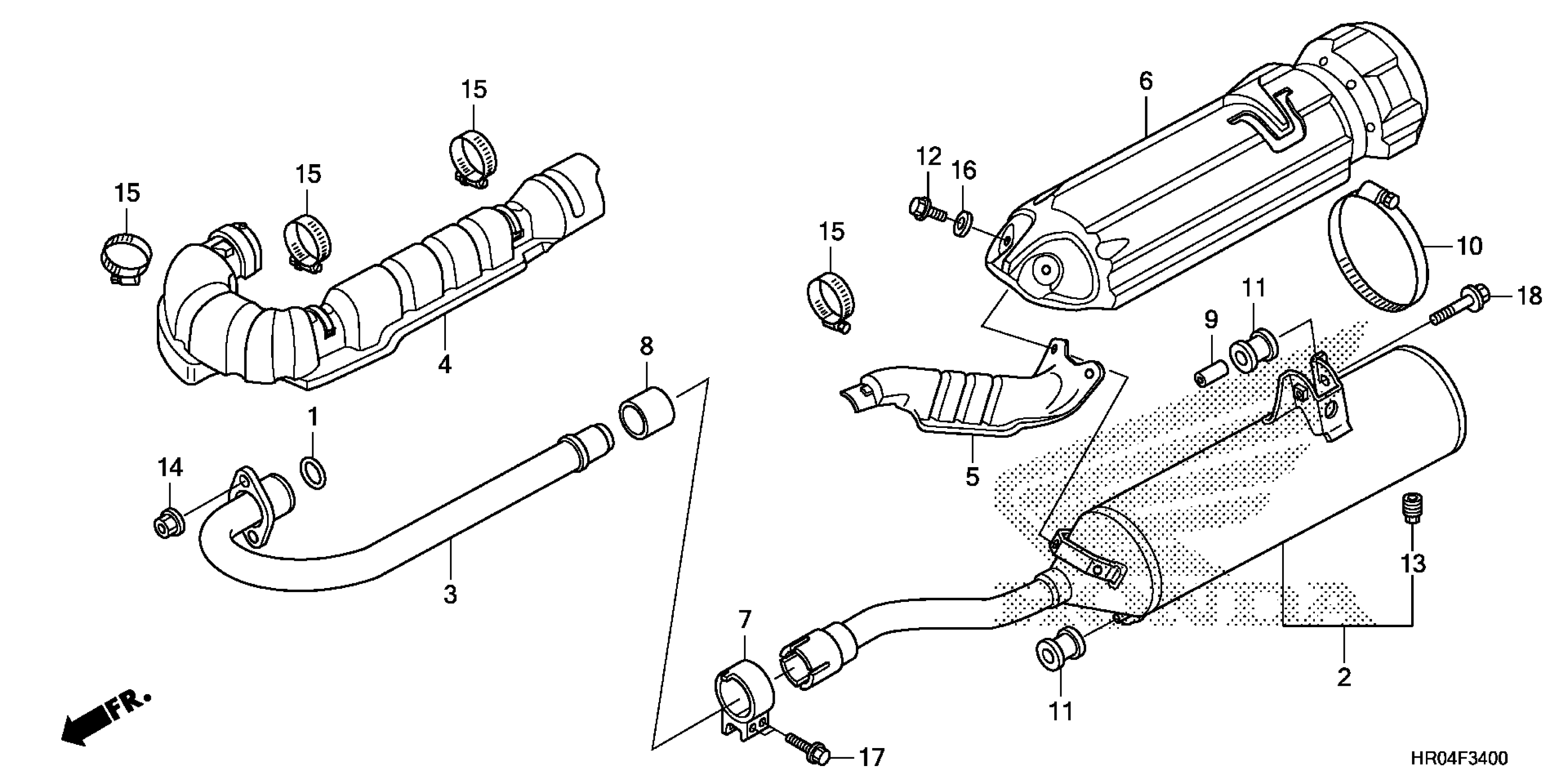

Honda TRX500FE2AC (13) FOREMAN 4X4 ES, USA, VIN# 1HFTE385-D4100001 EXHAUST MUFFLER Diagram

GASKET, EX. PIPE

18291-MN4-920

$5.07

MUFFLER

18310-HP7-A01

Unavailable

PIPE, EX.

18320-HR0-F00

$97.19

COVER, EX. PIPE

18321-HP7-A00

$51.49

COVER, FR. MUFFLER

18322-HP5-601

$34.41

COVER, MUFFLER

18323-HP5-602

$139.47

BAND, MUFFLER

18373-HA7-671

$19.10

GASKET, MUFFLER

18391-HM7-A00

$11.29

COLLAR, MUFFLER MOUNTING

18422-HP5-600

$20.94

BAND, MUFFLER COVER (89-140MM) This part replaces 19084-HP0-A50.

19084-HR6-B00

$4.54

RUBBER, MUFFLER MOUNTING

50608-HR0-F00

$10.51

BOLT, FLANGE (6X12)

90011-750-801

$1.31

BOLT, ARRESTER

90183-HM5-850

$2.31

NUT, FLANGE (8MM)

90301-HM8-000

$2.50

BAND, AIR CLEANER CONNECTING TUBE (38)

90638-HN7-000

$3.93

WASHER, PLAIN (6MM)

94103-06000

Unavailable

BOLT, FLANGE (8X35)

95701-08035-08

$1.29

BOLT, FLANGE (8X50)

95701-08050-08

$2.19
