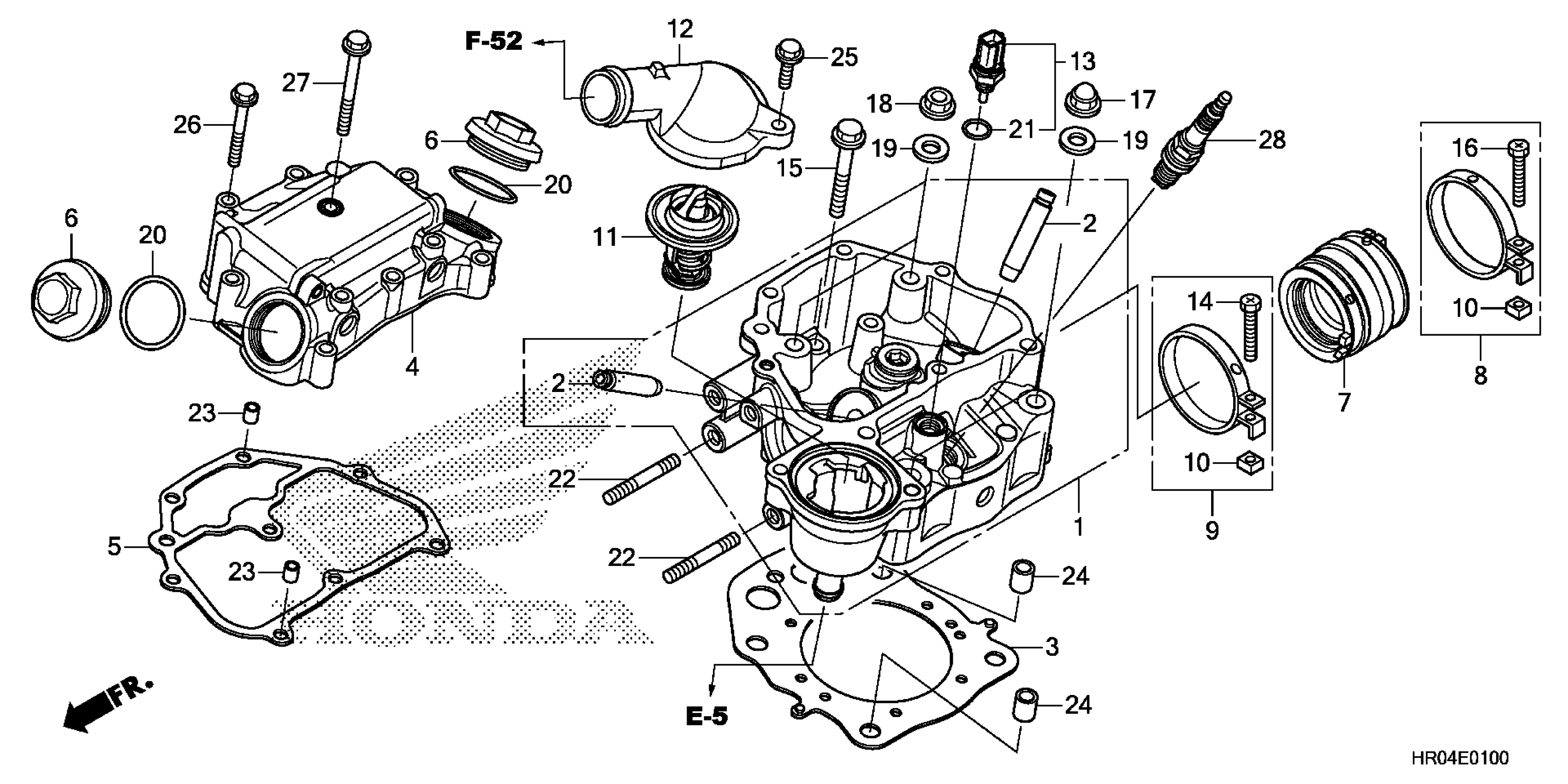

Honda TRX500FE2AC (13) FOREMAN 4X4 ES, USA, VIN# 1HFTE385-D4100001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-HP7-A01

$595.81

2

GUIDE, VALVE (OVER SIZE)

12204-HP7-305

$32.54

3

GASKET, CYLINDER HEAD

12251-HR0-F01

Unavailable

4

COVER, CYLINDER HEAD

12310-HP5-600

$151.60

5

GASKET, HEAD COVER

12315-HR0-F01

$17.91

6

CAP, TAPPET ADJUSTING HOLE

12361-HP5-600

$16.99

7

INSULATOR, THROTTLE BODY

16211-HR0-F00

$15.44

8

BAND, INSULATOR

16217-MBW-J20

$3.90

9

BAND, INSULATOR

16217-MEG-000

$3.90

10

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$1.99

11

THERMOSTAT SET This part replaces 19300-HN8-003.

19300-HN8-305

$60.18

12

COVER, THERMOSTAT

19321-HN2-000

$28.97

13

SENSOR ASSY., WATER (Honda Code 8489817) TEMPERATURE (NTCL)

37870-RZA-007

$81.74

14

BOLT, RECESSED (5X32)

90005-MM4-000

$0.99

15

BOLT, FLANGE (8X55)

90009-PNA-000

$5.64

16

BOLT, RECESSED (5X28) (GQ51B C)

90023-MM5-000

$2.80

17

NUT, FLANGE CAP (10MM)

90201-HA0-000

$6.15

18

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.66

18

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.66

18

NUT, FLANGE (10MM)

94050-10000

$1.66

19

WASHER (10MM)

90465-MM9-000

Unavailable

20

O-RING (35.5X3) (NOK)

91301-428-003

$2.04

21

O-RING (Honda Code 8522617)

91307-RZA-007

$3.66

22

BOLT, STUD (8X25)

92900-08025-0B

$2.74

23

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.76

24

PIN A, DOWEL (12X16)

94301-12160

Unavailable

25

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.78

26

BOLT, FLANGE (6X50) (Honda Code 2410975)

95701-06050-00

$2.75

27

BOLT, FLANGE (6X65) (Honda Code 2552545)

95701-06065-00

$1.40

28

SPARK PLUG (BKR5E-11) (NGK)

98079-5514E

$2.80
