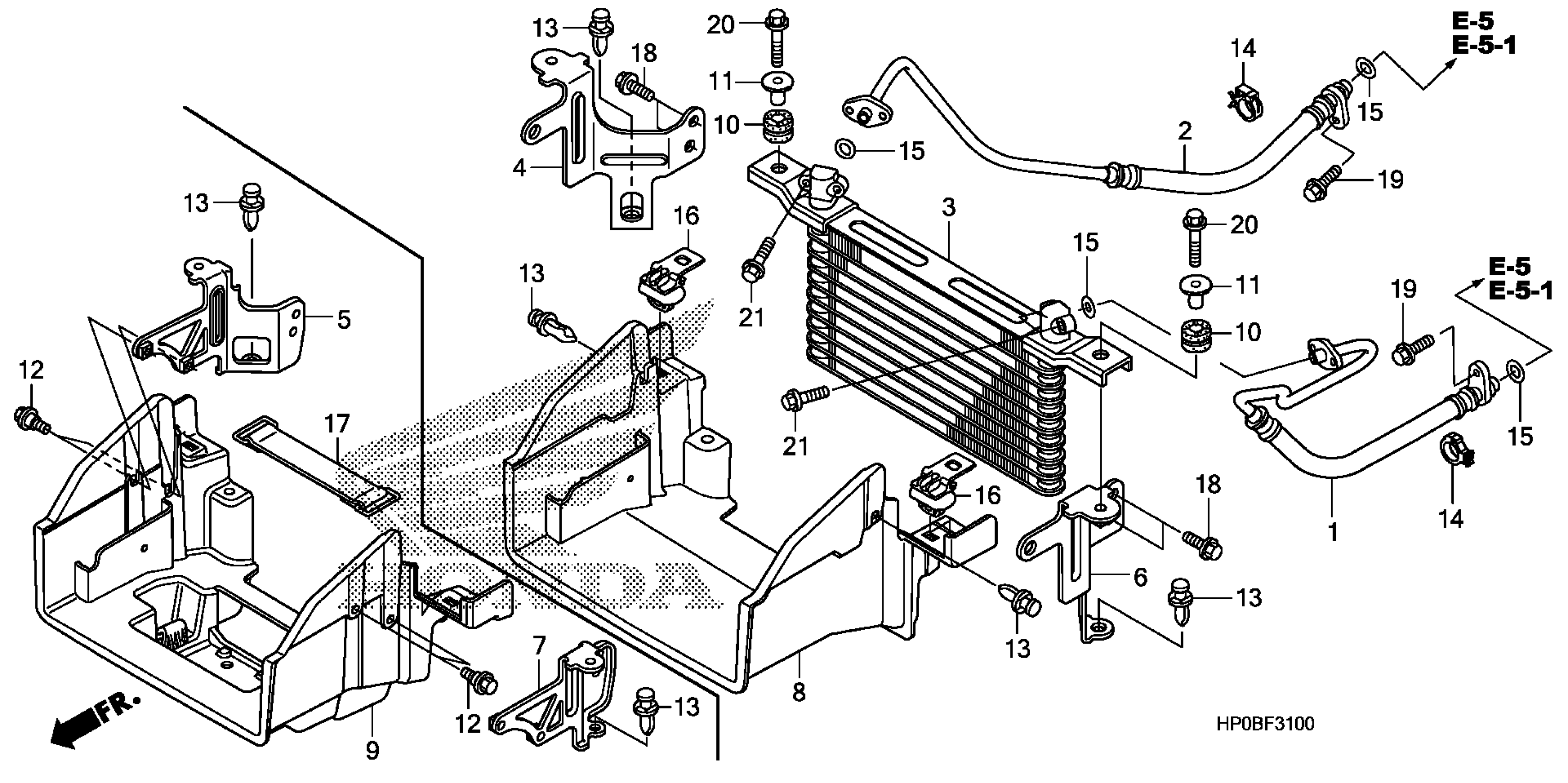

Honda TRX500FE2A (11) FOREMAN ES, USA, VIN# 1HFTE315-B4600001 OIL COOLER Diagram

HOSE, L. OIL

15540-HP0-B00

$51.99

HOSE, R. OIL

15550-HP0-B00

$41.97

COOLER, OIL

15600-HP0-A51

$258.53

STAY, R. FR. OIL COOLER

15610-HP0-A50

$19.54

STAY, L. FR. OIL COOLER

15620-HP0-A50

$19.54

SPLASH GUARD, OIL COOLER

15640-HP0-A50

$8.56

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.29

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.29

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

CLIP, CABLE (20MM)

90690-GHB-661

$2.01

O-RING (11X2.4)

91314-HN6-000

$1.72

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.52

BOLT, FLANGE (6X12)

95701-06012-00

$1.84

BOLT, FLANGE (6X18)

95701-06018-00

$1.50

BOLT, FLANGE (6X22)

95701-06022-00

$1.66

BOLT, FLANGE (6X20)

96001-06020-00

$1.15
