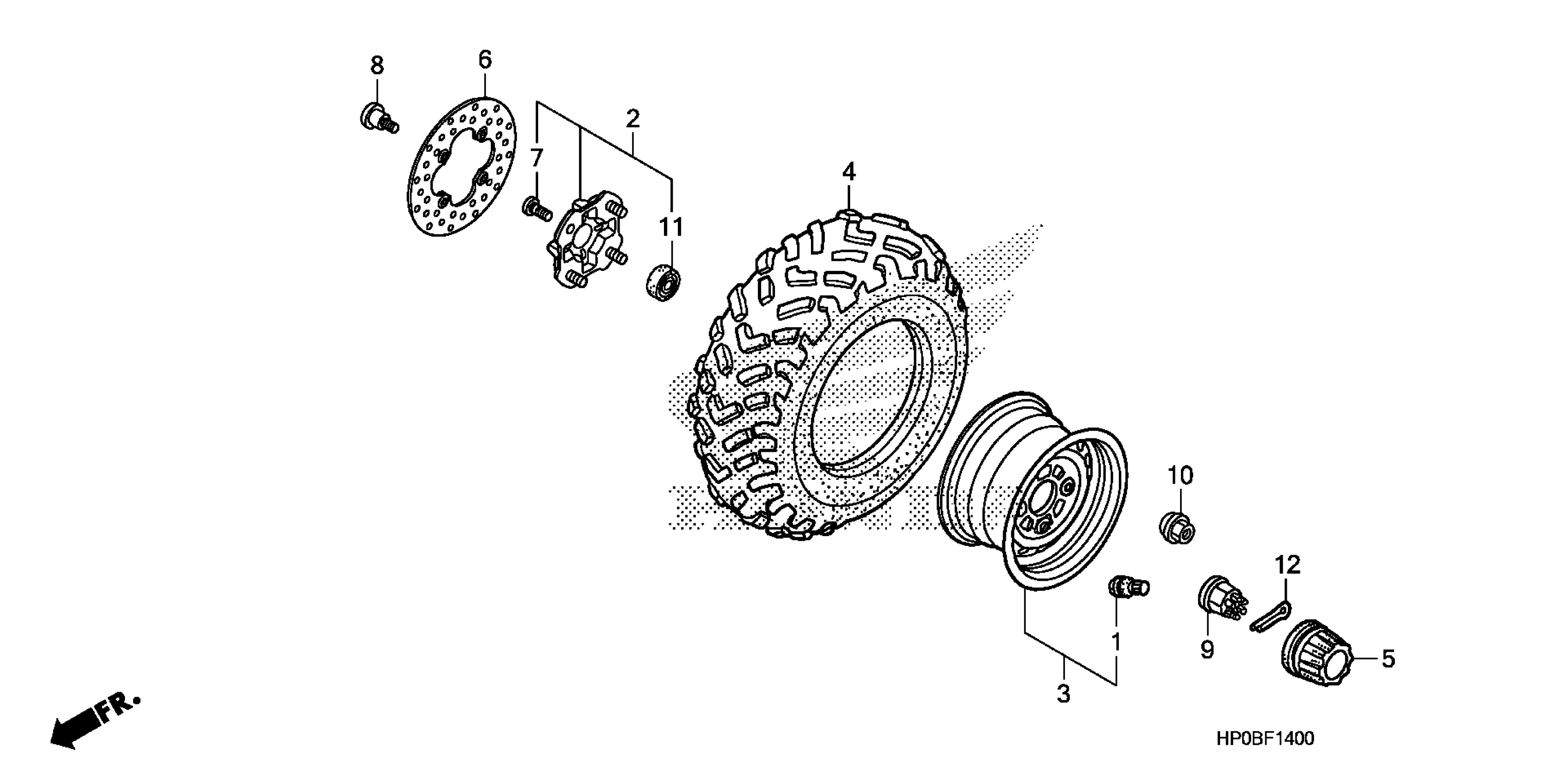

Honda TRX500FE2A (11) FOREMAN ES, USA, VIN# 1HFTE315-B4600001 FRONT WHEEL Diagram

VALVE, RIM (TR412)

42753-HF1-670

$5.37

HUB SUB-ASSY., FR.

44615-HP0-A50

$234.95

WHEEL SUB-ASSY., FR. (BLACK)

44650-HP0-A80

$97.10

TIRE (25X8-12) (DUNLOP) This part replaces 44711-HN2-A21.

44711-HP0-A01

Unavailable

TIRE (25X8-12) (MAXXIS) | (Optional). This part replaces 44711-HR0-F01.

44711-HR4-AJ1

$94.01

CAP, WHEEL CENTER

44732-HC4-010

$23.29

DISK, FR. BRAKE This part replaces 45251-HP0-A51.

45251-HS2-A51

$176.38

BOLT, WHEEL (10X30)

90103-HB3-300

$6.45

BOLT, FR. DISK (8X24) (SAGA)

90105-KL8-741

$5.90

BOLT, FR. DISK (8X24)

90105-KR3-000

$6.07

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

NUT, CASTLE (16MM)

90305-HM5-A80

$5.12

NUT, WHEEL

90314-HM5-A10

$3.39

DUST SEAL (19X22.5X10.5) (ARAI)

91263-HA7-771

$6.45

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49
