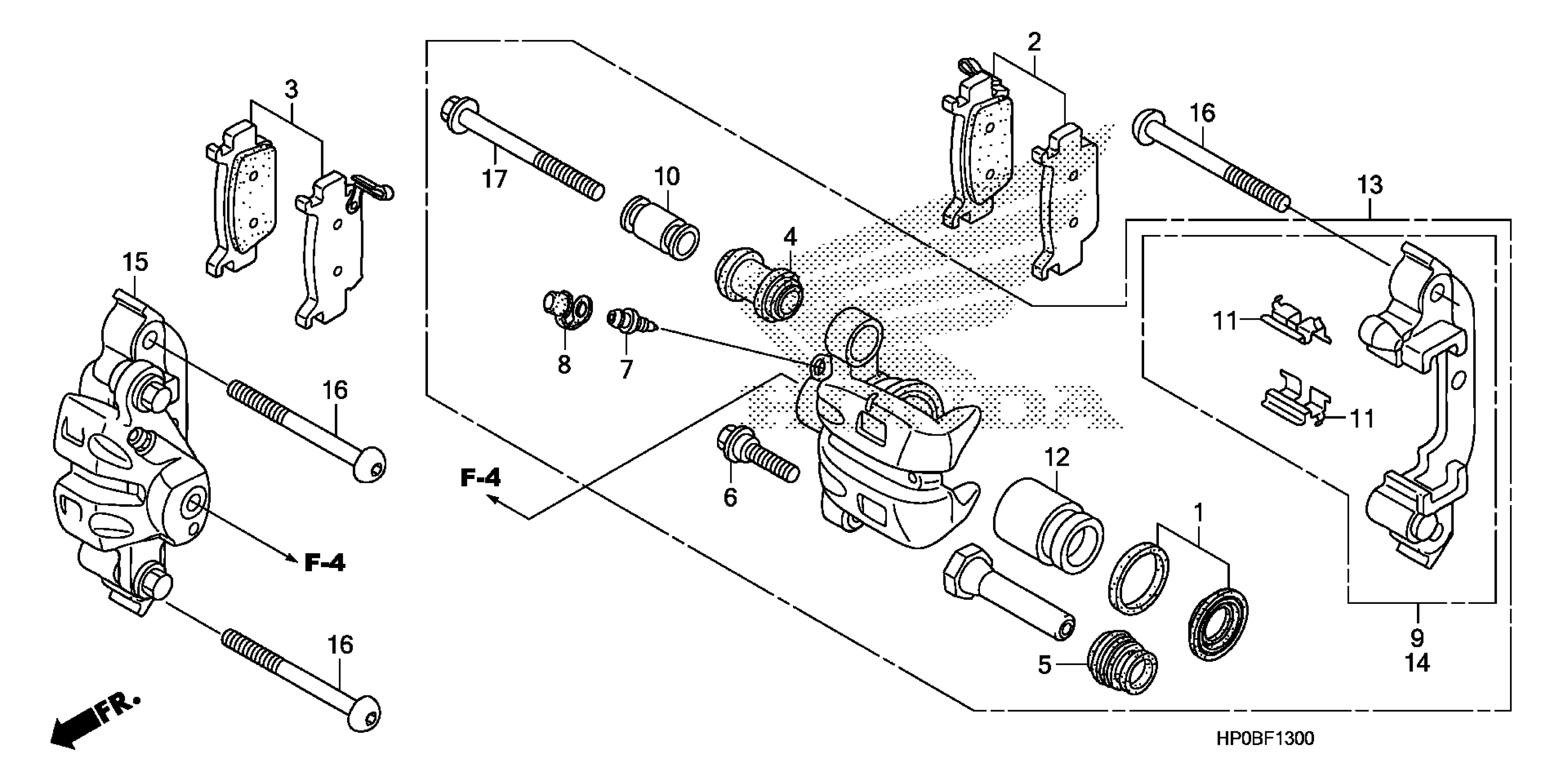

Honda TRX500FE2A (11) FOREMAN ES, USA, VIN# 1HFTE315-B4600001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06450-HP0-A01

$8.42

PAD SET, L. FR.

06451-HP0-A02

$43.46

PAD SET, R. FR.

06452-HP0-A02

$42.49

BOOT, SLEEVE

43132-KT7-761

$7.85

COVER, DUST

43234-S04-003

$6.50

BOLT, FLANGE (8X26)

43240-S6M-J51

$5.92

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

BRACKET, L. FR.

45110-HP0-B81

$83.78

SLEEVE

45111-MA3-006

$12.28

RETAINER, FR. BRACKET

45112-HP0-B81

$6.11

PISTON (34)

45117-HP0-A01

$34.40

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-HP0-B81

$223.68

BRACKET, R. FR.

45210-HP0-B81

$83.78

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-HP0-B81

$223.68

BOLT, SOCKET (10X50)

90102-HP0-A00

$3.98

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80
