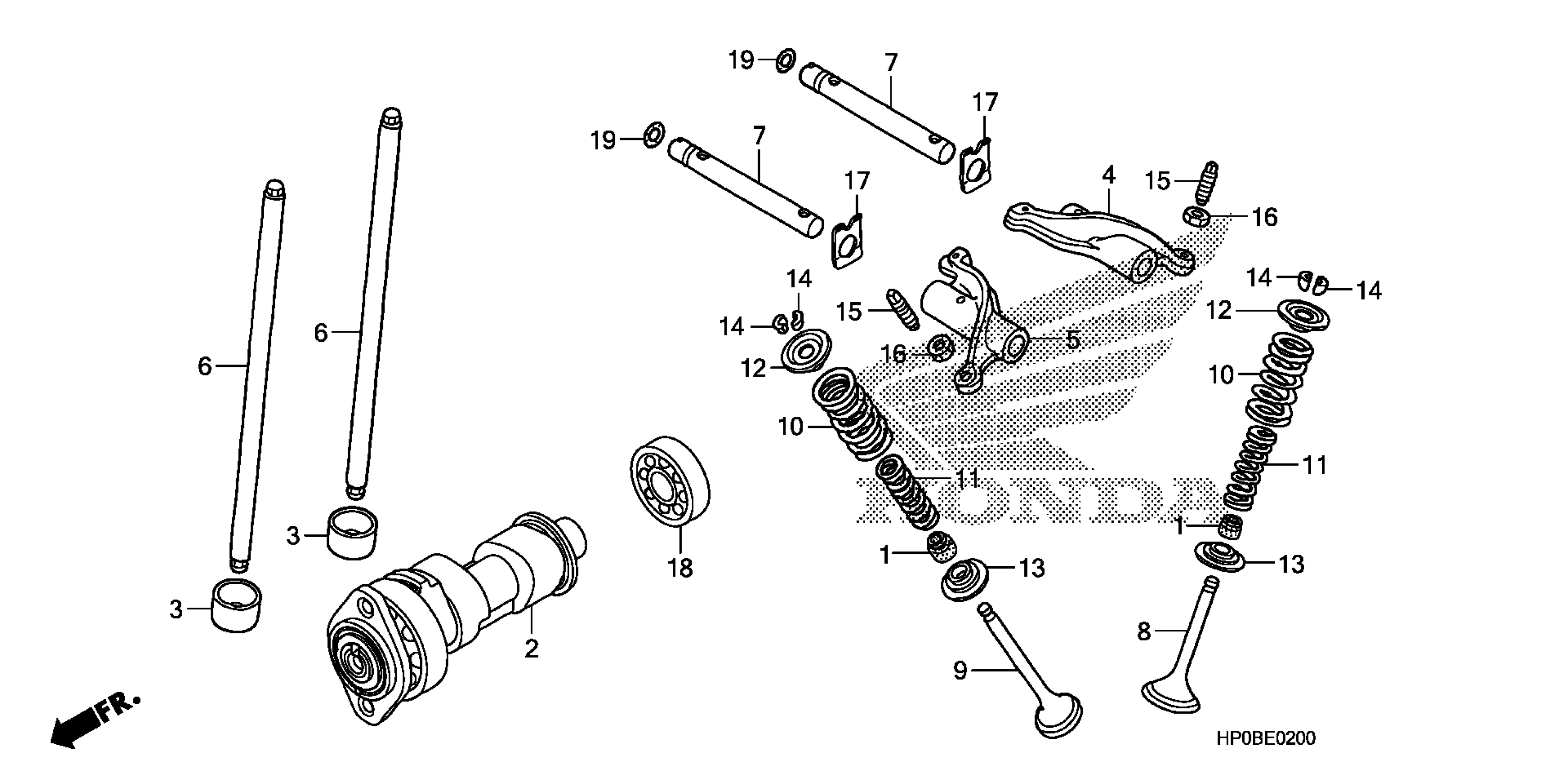

Honda TRX500FE2A (11) FOREMAN ES, USA, VIN# 1HFTE315-B4600001 CAMSHAFT Diagram

Description

Price

SEAL, EX. VALVE STEM

12208-MBB-003

$11.67

CAMSHAFT

14100-HP0-A00

$176.44

FOLLOWER, CAM

14421-HM7-000

$35.38

ARM, IN. VALVE ROCKER

14431-HN6-000

$52.14

ARM, EX. VALVE ROCKER

14432-HN6-000

$52.14

ROD, PUSH

14440-HP0-A00

$17.96

SHAFT, ROCKER ARM

14451-HP0-A00

$17.41

VALVE, IN.

14711-HP0-A00

$44.51

VALVE, EX.

14721-HP0-A00

$65.01

SPRING, VALVE (OUTER)

14751-HP0-A00

$8.18

SPRING, VALVE (INNER)

14761-HP0-A00

$5.94

RETAINER, VALVE SPRING

14771-HP0-A00

$8.69

SEAT, VALVE SPRING

14775-HP0-A00

$6.96

COTTER, VALVE

14781-MBB-003

$4.33

SCREW, TAPPET ADJUSTING

90012-426-000

$5.94

NUT, TAPPET ADJUSTING

90206-250-000

$2.94

WASHER, SPRING

90402-HN6-000

$3.38

BEARING, RADIAL BALL (6203)

91004-HN0-671

$11.80

O-RING (7.7X2.5)

91303-428-003

$1.90
