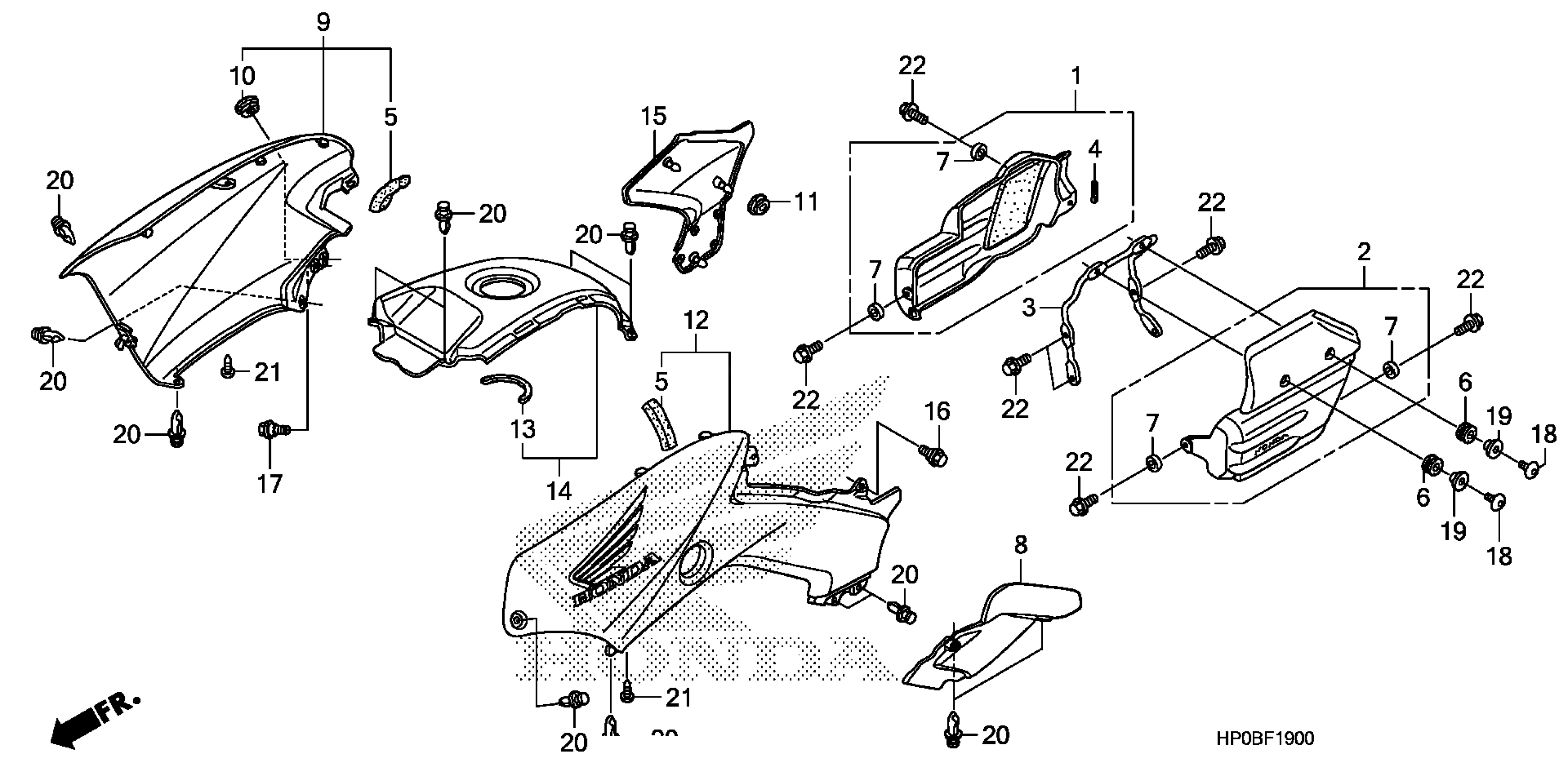

Honda TRX500FE2A (11) FOREMAN ES, USA, VIN# 1HFTE315-B4600001 BODY COVER Diagram

#

Description
Price

1

COVER, R. ENGINE SIDE *NH1* (BLACK)

11310-HP0-A50ZA

$45.44

2

COVER, L. ENGINE SIDE *NH1* (BLACK)

11320-HP0-A50ZA

$32.29

3

STAY, L. ENGINE SIDE COVER

11321-HP0-A00

$6.46

4

RUBBER, FUEL TANK PROTECTOR

17511-MR1-300

$3.43

5

SEAL A, HEAT PROTECTOR

17525-HP0-A50

$8.25

6

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.68

7

COLLAR (6X4)

52156-353-300

$6.04

8

GUIDE, L. RR. ENGINE AIR *NH1* (BLACK)

61896-HP0-A00ZA

$54.07

9

COVER SET, R. TANK SIDE *YRA02L* (WL) (NATURAL CAMO)

83550-HP0-A81ZA

Unavailable

10

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

11

GROMMET, SIDE COVER

83551-HM5-730

$1.13

12

COVER, L. TANK SIDE *YRA02L* (NATURAL CAMO) This part replaces 83650-HP0-H21ZB.

83650-HP0-H21ZA

$265.63

12

COVER, L. TANK SIDE *YRA02L* (NATURAL CAMO)

83650-HP0-H21ZA

$265.63

13

SEAL, TOP COVER

83701-HP0-A50

$2.97

14

COVER *NH1* This part replaces 83750-HP0-A50ZA.

83750-HP0-305ZA

$30.94

15

COVER, R. SIDE *YRA02L* (NATURAL CAMO)

83800-HP0-A81ZA

Unavailable

16

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.03

17

BOLT, FLANGE (6MM)

90111-162-000

$2.66

18

SCREW, PAN (6X14)

90118-MR1-000

$2.95

19

COLLAR, REFLECTOR SETTING

90129-463-770

$3.00

20

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

21

SCREW, TAPPING (4X10)

93903-24220

$0.84

22

BOLT, FLANGE (6X16)

95701-06016-00

$1.50
