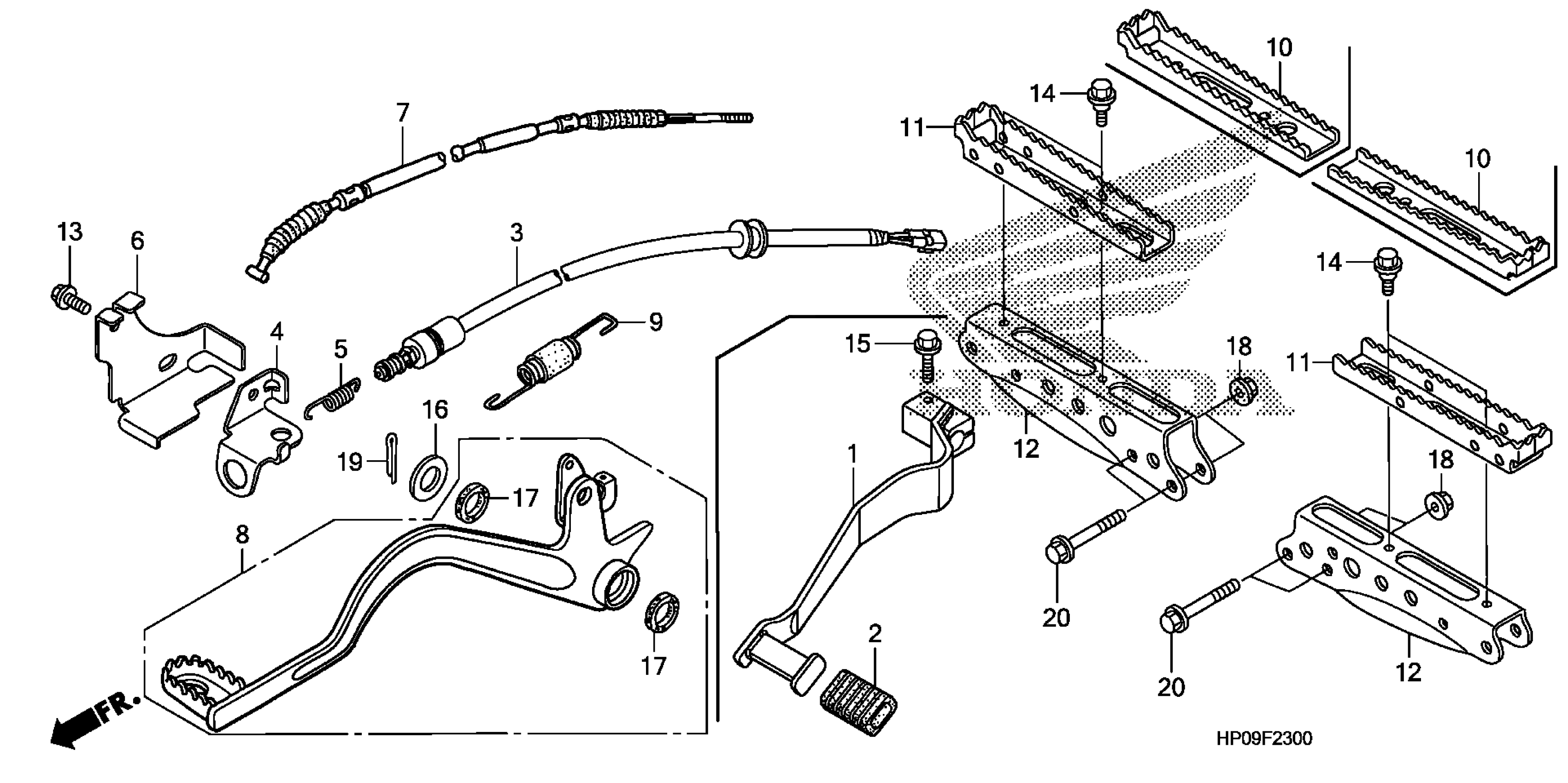

Honda TRX500FE2A (09) FOURTRAX FOREMAN ES, USA, VIN# 1HFTE315-94400001 TO 1HFTE315-94499999 STEP + PEDAL Diagram

SWITCH ASSY., RR. STOP

35350-HP0-A00

$59.72

STAY, STOP SWITCH

35351-HP0-A00

$8.15

SPRING, STOP SWITCH

35357-HP0-A00

$2.56

GUARD, RR. STOP SWITCH

35359-HP0-A00

$93.08

CABLE, FOOT BRAKE

43470-HP0-A00

$11.94

PEDAL, BRAKE

46500-HP0-A00

$49.69

SPRING ASSY., RR. BRAKE PEDAL

46513-HM7-000

$11.69

STEP

50610-HN2-000

$37.48

BRACKET, STEP

50611-HP0-A00

$48.36

BOLT, FLANGE (6X14)

90105-MCE-750

$1.49

BOLT, FLANGE (6MM)

90111-HP0-A00

$2.66

WASHER (17.5MM)

90512-303-000

$1.77

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.69

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

BOLT, FLANGE (8X45)

95801-08045-00

$1.80
