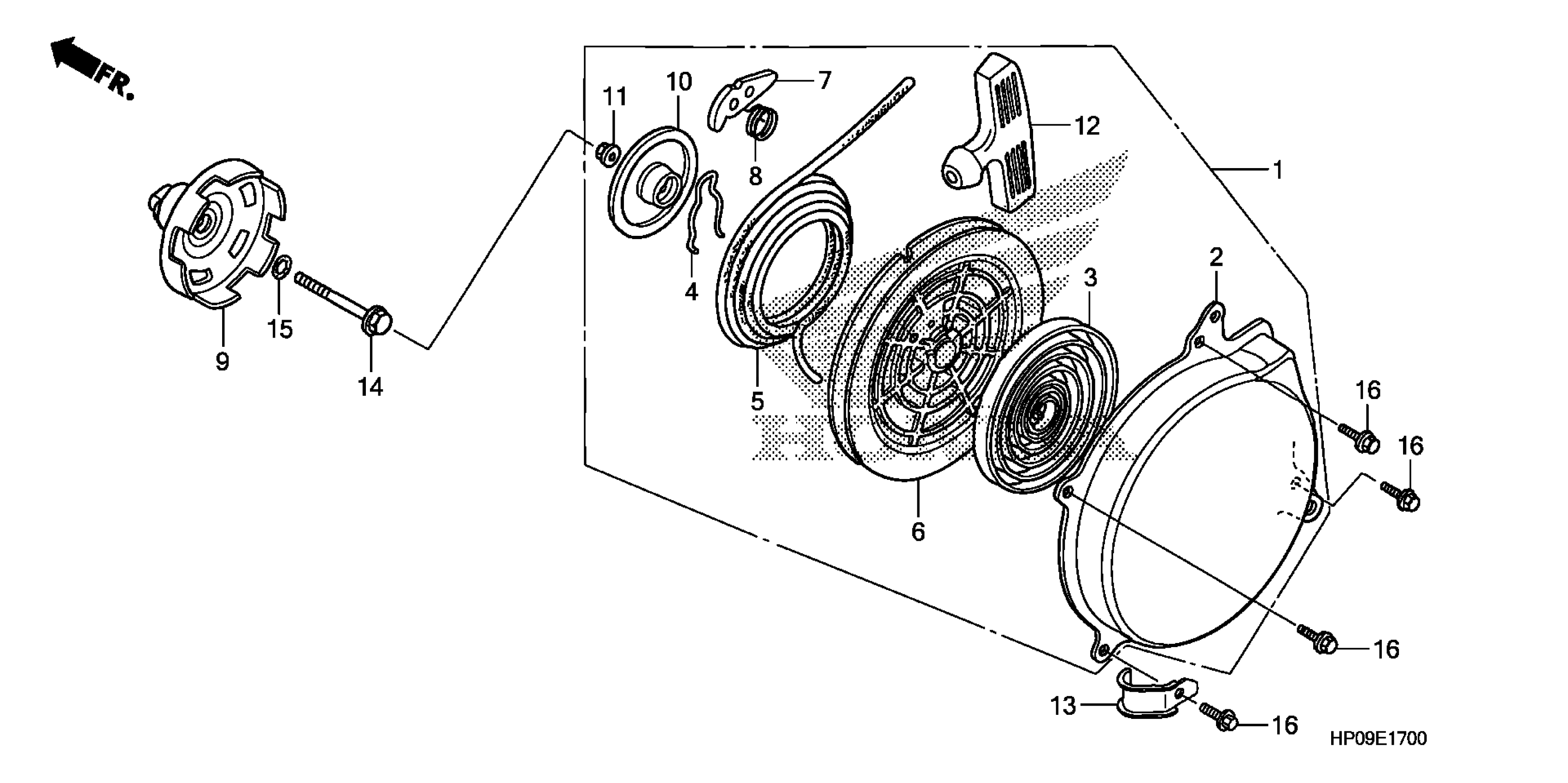

Honda TRX500FE2A (09) FOURTRAX FOREMAN ES, USA, VIN# 1HFTE315-94400001 TO 1HFTE315-94499999 RECOIL STARTER Diagram

Description

Price

STARTER ASSY., RECOIL

28400-HP0-A01

$52.88

CASE, RECOIL STARTER

28401-HP0-A01

$25.39

SPRING, RECOIL STARTER

28402-HM7-A11

$68.53

SPRING, FRICTION

28404-HM7-A51

$1.72

ROPE, RECOIL STARTER

28407-HM7-A11

$22.66

REEL, RECOIL STARTER

28420-HM7-A11

$14.86

RATCHET, STARTER

28422-HE0-004

$11.35

SPRING, RETURN

28424-HM7-A51

$7.28

PULLEY, RECOIL

28430-HN0-670

$33.59

PLATE, FRICTION

28431-HE0-004

Unavailable

NUT, FLANGE

28448-HM7-A11

$0.64

KNOB, RECOIL STARTER

28461-HM7-A51

$5.30

CLAMP, WIRE

32961-HP0-A00

Unavailable

BOLT, SPECIAL (12MM)

90081-HN5-670

$5.90

O-RING (11.5X2.3)

91303-679-003

Unavailable

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
