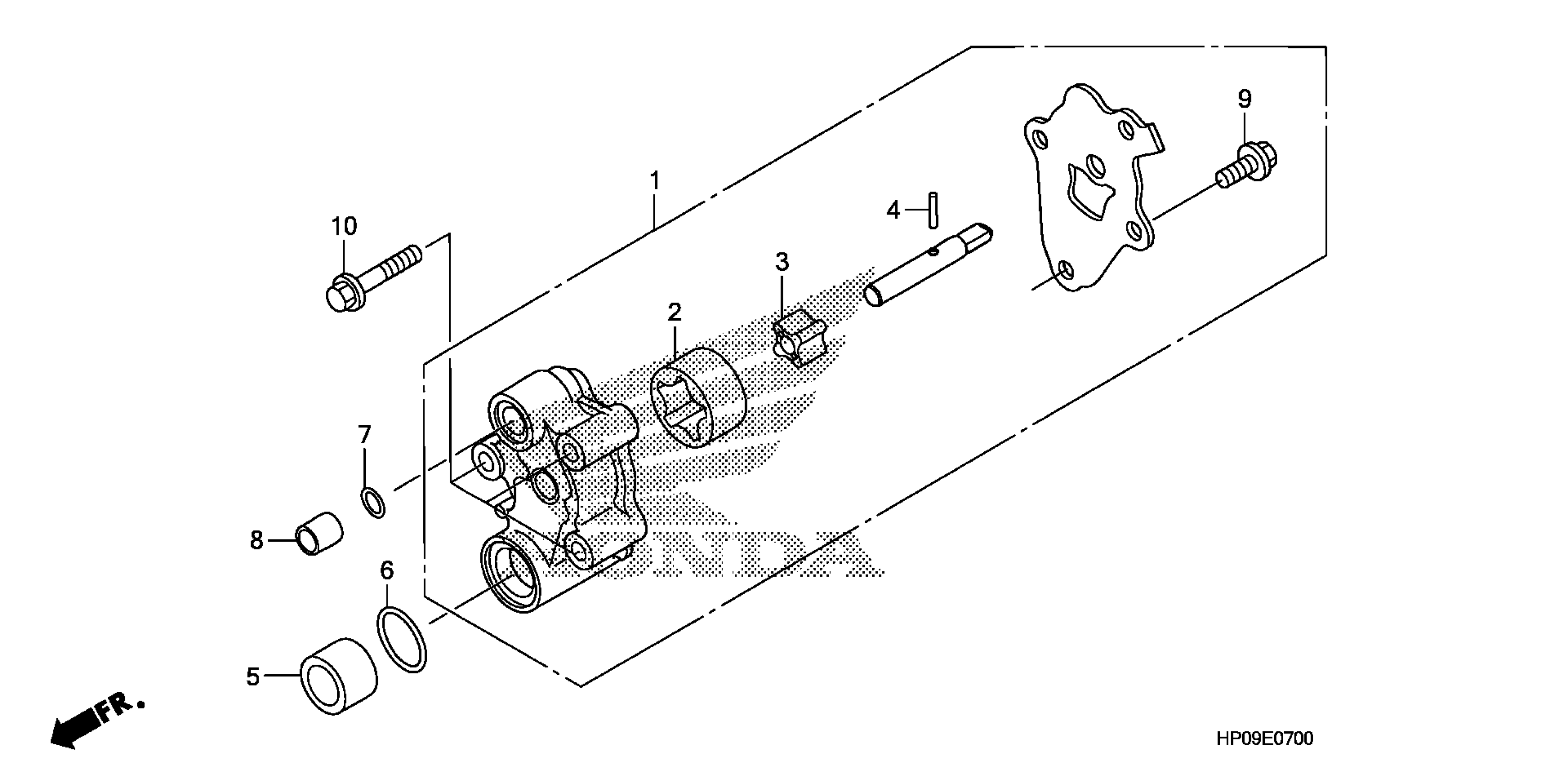

Honda TRX500FE2A (09) FOURTRAX FOREMAN ES, USA, VIN# 1HFTE315-94400001 TO 1HFTE315-94499999 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-HP0-A00

$52.77

2

ROTOR, OIL PUMP (OUTER)

15122-HP0-A01

$7.22

3

ROTOR, OIL PUMP (INNER)

15123-HP0-A01

$7.19

4

ROLLER (2.5X11.8)

15141-HP0-A00

$1.25

5

COLLAR, O-RING

15155-HP0-A00

$2.48

6

O-RING (15X2.5)

91302-377-000

$4.94

7

O-RING (10X2) (ARAI)

91304-HA5-003

$3.66

8

PIN, DOWEL (10X16)

94301-10160

$2.24

9

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

10

BOLT, FLANGE (6X35)

95801-06035-00

$0.97
