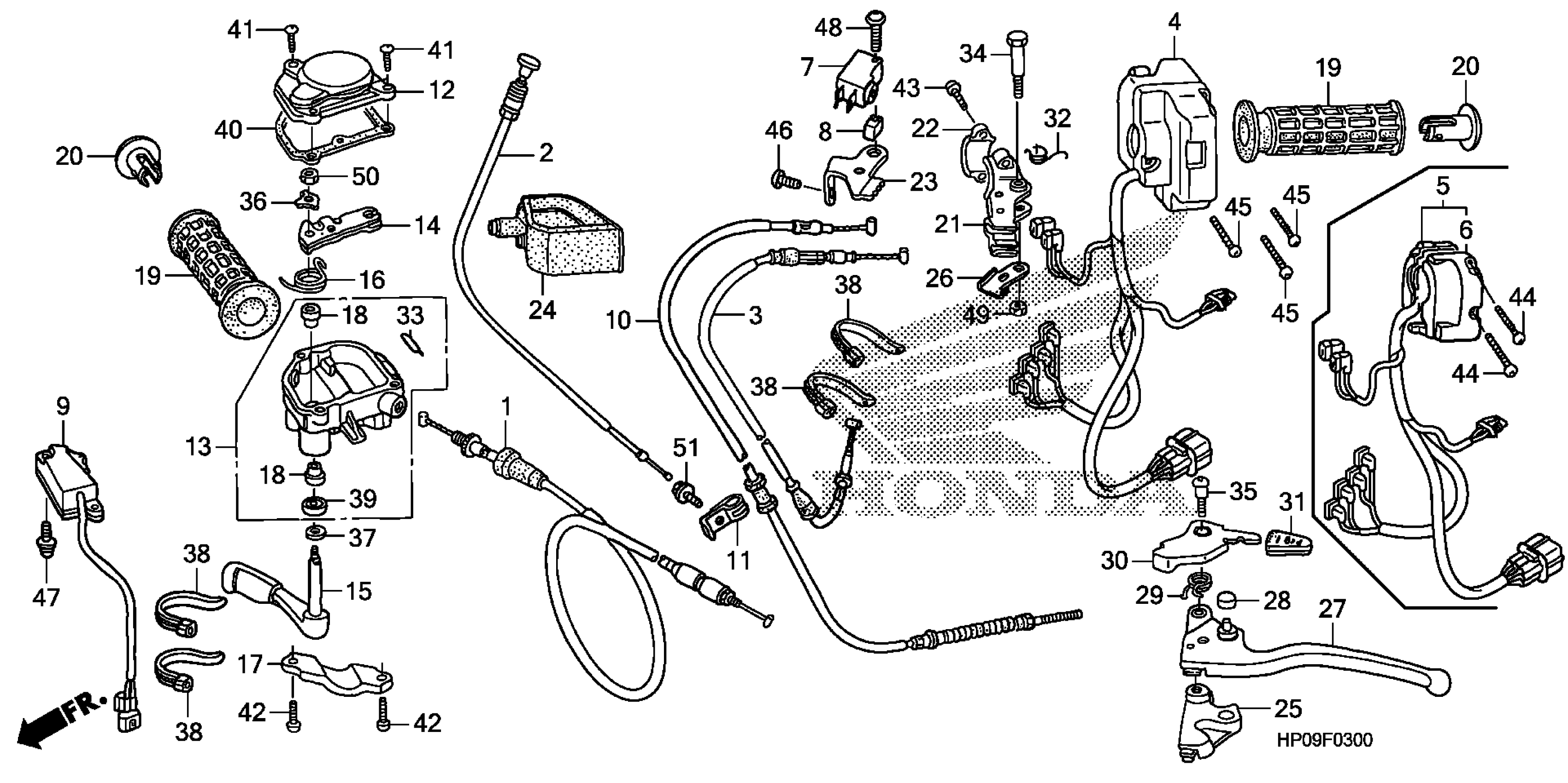

Honda TRX500FE2A (09) FOURTRAX FOREMAN ES, USA, VIN# 1HFTE315-94400001 TO 1HFTE315-94499999 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HP0-A00

$35.39

2

CABLE, CHOKE

17950-HP0-A00

$9.48

3

CABLE, REVERSE ASSIST

22880-HP0-A00

$22.55

4

SWITCH ASSY., L. HANDLE

35140-HP0-B90

$105.38

7

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

7

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

8

COLLAR, STOP SWITCH

35345-HF1-830

$6.01

9

SWITCH ASSY., SELECT (2WD/4WD)

35400-HP0-A71

$24.86

10

CABLE, HAND BRAKE

43460-HP0-A00

$17.99

11

CLAMP, BRAKE CABLE

50352-HN2-000

$1.49

12

COVER, THROTTLE CASE

53141-HP1-000

$36.58

13

CASE ASSY., THROTTLE LEVER

53143-HN0-305

$47.56

14

ARM, THROTTLE

53144-HA0-010

$7.72

15

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

15

LEVER, THROTTLE

53145-HA0-770

$24.05

16

SPRING, THROTTLE RETURN

53146-HM8-000

$3.10

17

HOLDER, THROTTLE CASE

53147-HN0-670

$14.30

18

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

19

GRIP, HANDLE

53165-HP5-600

$3.83

20

GUARD, HANDLE END

53167-HP5-600

$2.33

21

BRACKET, BRAKE LEVER

53172-HN5-V70

$19.08

22

HOLDER, LEVER BRACKET

53173-376-000

$10.95

23

STAY, PARKING BRAKE STOPPER

53174-HP0-A00

$3.56

24

COVER, L. HANDLE LEVER

53177-HP0-A00

$19.13

25

ARM, REVERSE ASSISTANT

53179-HA6-000

$15.17

26

HOLDER, STOP SWITCH SUB CORD

53179-HN5-M40

$2.02

27

LEVER, RR. BRAKE

53180-HP0-A00

$16.74

28

CAP, REVERSE PIN

53187-VM6-000

$3.89

29

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

30

LEVER, PARKING BRAKE LOCK

53192-HP0-A00

$5.43

31

CAP, PARKING LEVER

53193-HA0-770

$6.16

32

SPRING, RETURN LEVER

53193-HP0-A10

$4.14

33

MARK, SELECT (2WD/4WD)

87516-HN0-670

$15.34

34

BOLT, HANDLE LEVER PIVOT

90114-HM8-000

$9.20

35

SCREW, PARKING LEVER PIVOT

90115-HA6-000

$4.08

36

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

37

WASHER (9X20)

90504-HA0-000

$2.28

38

BAND, WIRE HARNESS

90651-MA6-720

$3.73

39

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

39

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

40

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

41

SCREW, PAN (4X16)

93500-04016-0G

$1.49

42

SCREW, PAN (5X14)

93500-05014-0G

$3.67

43

SCREW, PAN (5X18)

93500-05018-0G

$1.49

45

SCREW, PAN (5X28)

93500-05028-0G

$1.49

46

SCREW, PAN (6X16)

93500-06016-0G

$1.49

47

SCREW-WASHER (4X12)

93891-04012-07

$1.49

48

SCREW-WASHER (4X22)

93893-04022-07

$1.49

49

NUT, HEX. (6MM)

94001-06070-0S

$1.49

50

NUT, HEX. (6MM)

94002-06000-0S

$1.49

51

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
