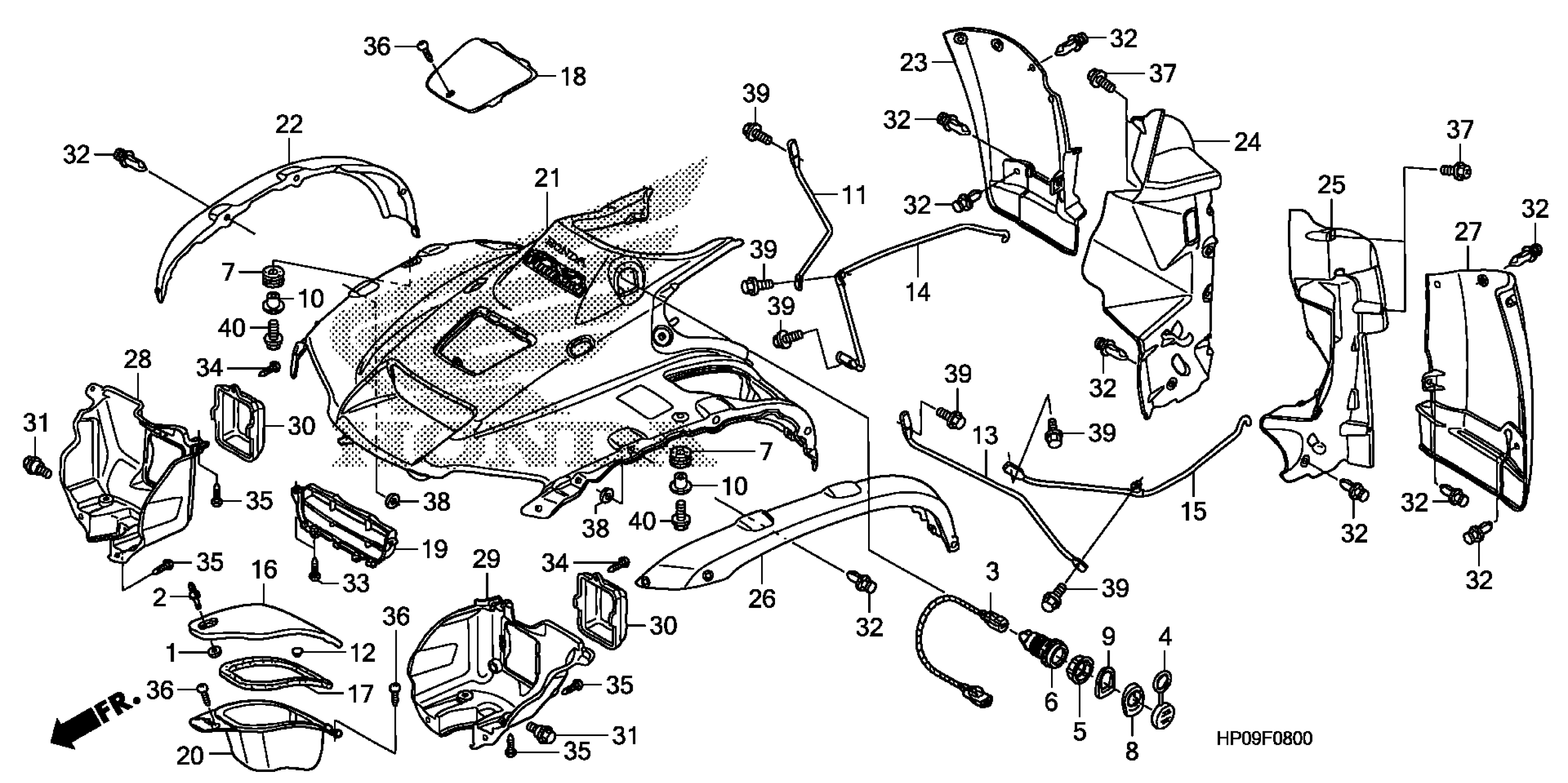

Honda TRX500FE2A (09) FOURTRAX FOREMAN ES, USA, VIN# 1HFTE315-94400001 TO 1HFTE315-94499999 FRONT FENDER Diagram

#

Description
Price

1

WASHER, AIR CLEANER COVER SETTING

17224-KN5-670

$1.49

2

STUD (6X21) This part replaces 17225-KN5-670.

17225-KN5-671

$6.99

3

SUB-HARNESS, ACCESSORY

31651-HP0-A70

$3.71

4

CAP

31652-HP0-A01

$2.24

5

NUT

31653-HP0-A01

$1.49

6

SOCKET, ACCESSORY

31655-HP0-A01

$24.16

7

RUBBER, FR. FENDER MOUNTING

61103-HM5-850

$1.52

8

SPACER, ACCESSORY SOCKET (OUTER) *NH1* (BLACK)

61103-HN5-670ZB

$2.28

9

SPACER, ACCESSORY SOCKET INSIDE *NH1* (BLACK)

61104-HN5-670ZA

$2.70

10

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

10

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

11

STAY, R. FR. FENDER

61105-HP0-A00

$6.36

12

PLUG, FR. FENDER

61105-KA8-000

$1.49

13

STAY, L. FR. FENDER

61106-HP0-A00

$11.96

14

STAY, R. CENTER SPLASH GUARD SIDE

61107-HP0-A00

$76.56

15

STAY, L. CENTER SPLASH GUARD SIDE

61108-HP0-A00

$72.17

16

LID, GLOVE BOX *YRA02L* (NATURAL CAMO) | Natural camo YRA02L; This part replaces 61120-HP0-A80ZA.

61120-HP0-A81ZA

$68.38

17

SEAL, GLOVE BOX

61122-HP0-A00

$3.87

18

LID, FR. FENDER *YRA02L* (NATURAL CAMO) | Natural camo YRA02L; This part replaces 61130-HP0-A80ZA.

61130-HP0-A81ZA

$131.92

19

GUIDE, FR. AIR *NH1* (BLACK) | Natural camo YRA02L;

61140-HP0-A00ZE

$308.38

20

BOX, GLOVE

61150-HP0-A00

$14.76

21

FENDER SET, FR. *YRA02L* (NATURAL CAMO) | Natural camo YRA02L; This part replaces 61150-HP0-H30ZA.

61150-HP0-H31ZA

$648.52

21

FENDER SET, FR. *YRA02L* (NATURAL CAMO)

61150-HP0-H31ZA

$648.52

22

SPLASH GUARD, R. FR. SIDE *NH1* (BLACK)

61861-HP0-A00ZA

$39.63

23

SPLASH GUARD, R. FR. (LOWER) *NH1* (BLACK)

61862-HP0-A00ZA

$143.40

24

FENDER, R. FR.

61863-HP0-A00

$107.89

25

FENDER, L. FR.

61864-HP0-A00

$107.89

26

SPLASH GUARD, L. FR. SIDE *NH1* (BLACK)

61866-HP0-A00ZA

$76.80

27

SPLASH GUARD, L. FR. (LOWER) *NH1* (BLACK)

61868-HP0-A00ZA

$124.65

28

COVER, R. HEADLIGHT

66301-HP0-A00

$12.16

29

COVER, L. HEADLIGHT

66302-HP0-A00

$12.16

30

CAP, HEADLIGHT TAIL

66303-HN5-670

$4.62

31

BOLT, FLANGE (6MM)

90111-162-000

$2.89

32

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

33

SCREW, TAPPING (4X10)

93903-24220

$1.49

34

SCREW, TAPPING (4X12)

93903-24320

$1.49

35

SCREW, TAPPING (5X12)

93903-25220

$1.49

36

SCREW, TAPPING (5X12)

93903-25280

$1.49

37

SCREW, TAPPING (6X16)

93904-26210

$1.49

38

WASHER, PLAIN (8MM)

94103-08800

$1.49

39

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

40

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
