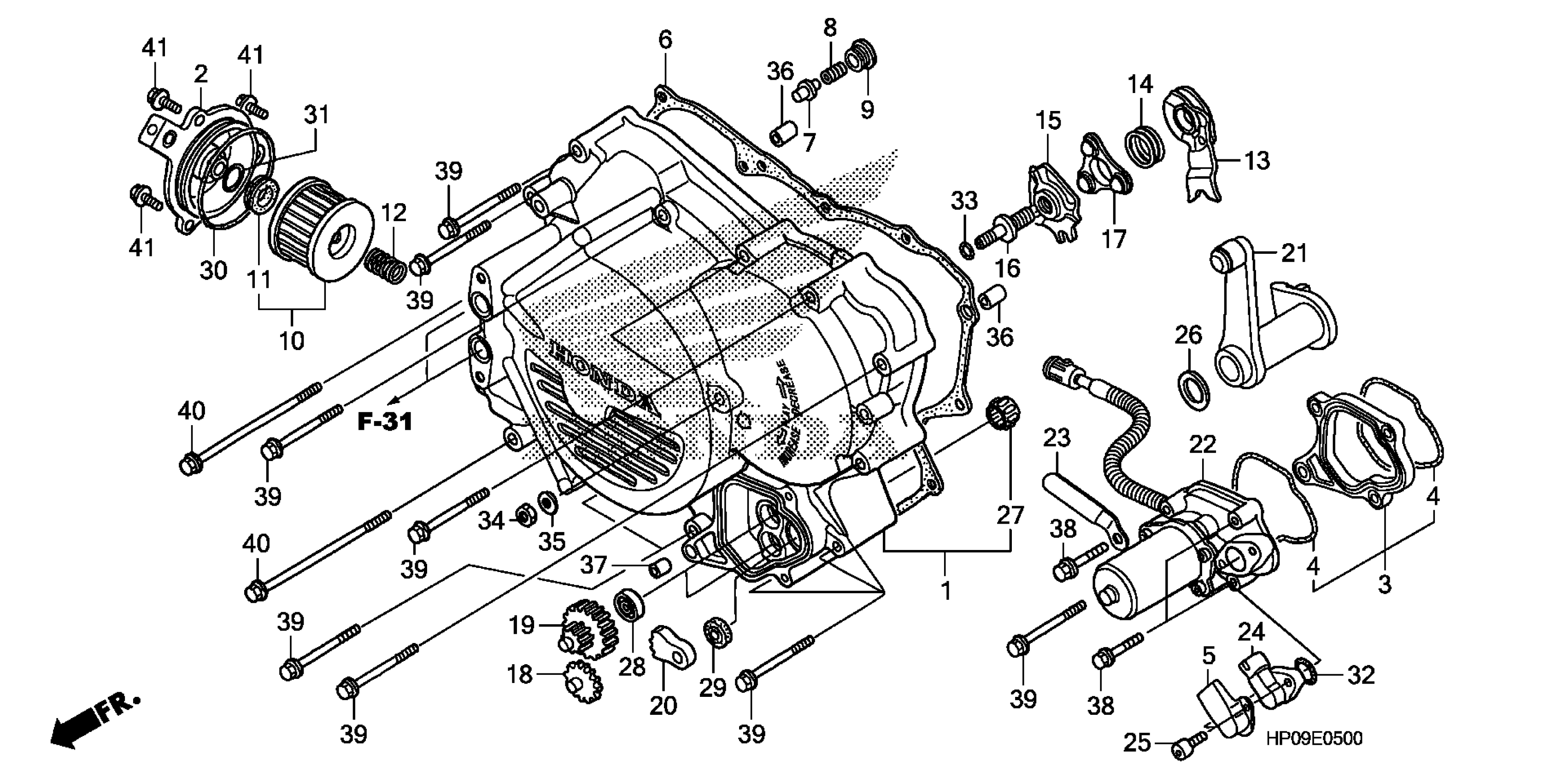

Honda TRX500FE2A (09) FOURTRAX FOREMAN ES, USA, VIN# 1HFTE315-94400001 TO 1HFTE315-94499999 FRONT CRANKCASE COVER (TRX500FE/FPE) Diagram

#

Description
Price

1

COVER, FR. CRANKCASE

11330-HP0-A10

Unavailable

2

COVER, OIL FILTER

11333-HP0-A00

$46.08

3

SPACER, BRACKET

11334-HP0-A10

$20.14

4

O-RING

11336-HN0-A10

$8.77

5

PROTECTOR, ANGLE SENSOR

11339-HP0-A10

$15.74

6

GASKET, FR. CRANKCASE COVER

11394-HP0-A00

$27.94

7

VALVE, RELIEF

15231-HP0-A00

Unavailable

8

SPRING, RELIEF VALVE

15232-HM3-670

$1.93

9

CAP, RELIEF VALVE

15235-HP0-A00

$9.32

10

ELEMENT, OIL FILTER

15412-HM5-A10

$5.50

11

RUBBER, FILTER

15413-MC8-000

$3.35

12

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

13

PLATE, CLUTCH CAM

22820-HP0-A00

$34.13

14

SPRING, CAM PLATE SIDE

22825-HN0-671

$3.73

15

PLATE, CLUTCH LIFTER

22830-HP0-A00

$17.33

16

BOLT, CLUTCH ADJUSTING

22841-HP0-A00

$6.54

17

RETAINER, BALL

22860-HB3-000

$7.81

18

GEAR, REDUCTION (41T/10T)

24615-HN0-771

$16.62

19

GEAR, REDUCTION (40T/12T)

24616-HN0-771

$18.28

20

GEAR, REDUCTION (7/43T)

24617-HN0-771

$8.13

21

ARM, SUB-GEARSHIFT SPINDLE

24670-HP0-A10

Unavailable

22

MOTOR ASSY., CONTROL

31300-HP0-A11

$266.01

23

CLIP, SUB-WIRE

32901-MA1-000

$4.95

24

SENSOR ASSY., ANGLE This part replaces 38800-HP0-A11.

38800-HR3-A21

$27.06

25

BOLT, SOCKET (5X20)

90116-HP5-600

$3.10

26

WASHER (10X21.5)

90413-GE0-000

$3.90

27

BEARING, NEEDLE (10X14X10) (TORRINGTON)

91021-HN0-671

$13.89

28

BEARING, RADIAL BALL (626ZZ)

91060-HN0-A11

$10.91

29

OIL SEAL (10X20X5) (ARAI) This part replaces 91201-KM1-005.

91202-HC0-003

$3.54

29

OIL SEAL (10X20X5) (ARAI)

91202-HC0-003

$3.54

30

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

31

O-RING (11X1.9) (NOK)

91303-HA0-004

$2.13

32

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.72

33

O-RING (8.2X1.5)

91308-MC7-000

$2.31

34

NUT, HEX. (8MM)

94030-08000

$1.49

35

WASHER, PLAIN (8MM)

94102-08800

$1.49

36

PIN, DOWEL (8X14)

94301-08140

$2.25

37

PIN, DOWEL (8X20)

94301-08200

$2.25

38

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

38

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

39

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

40

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

41

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
