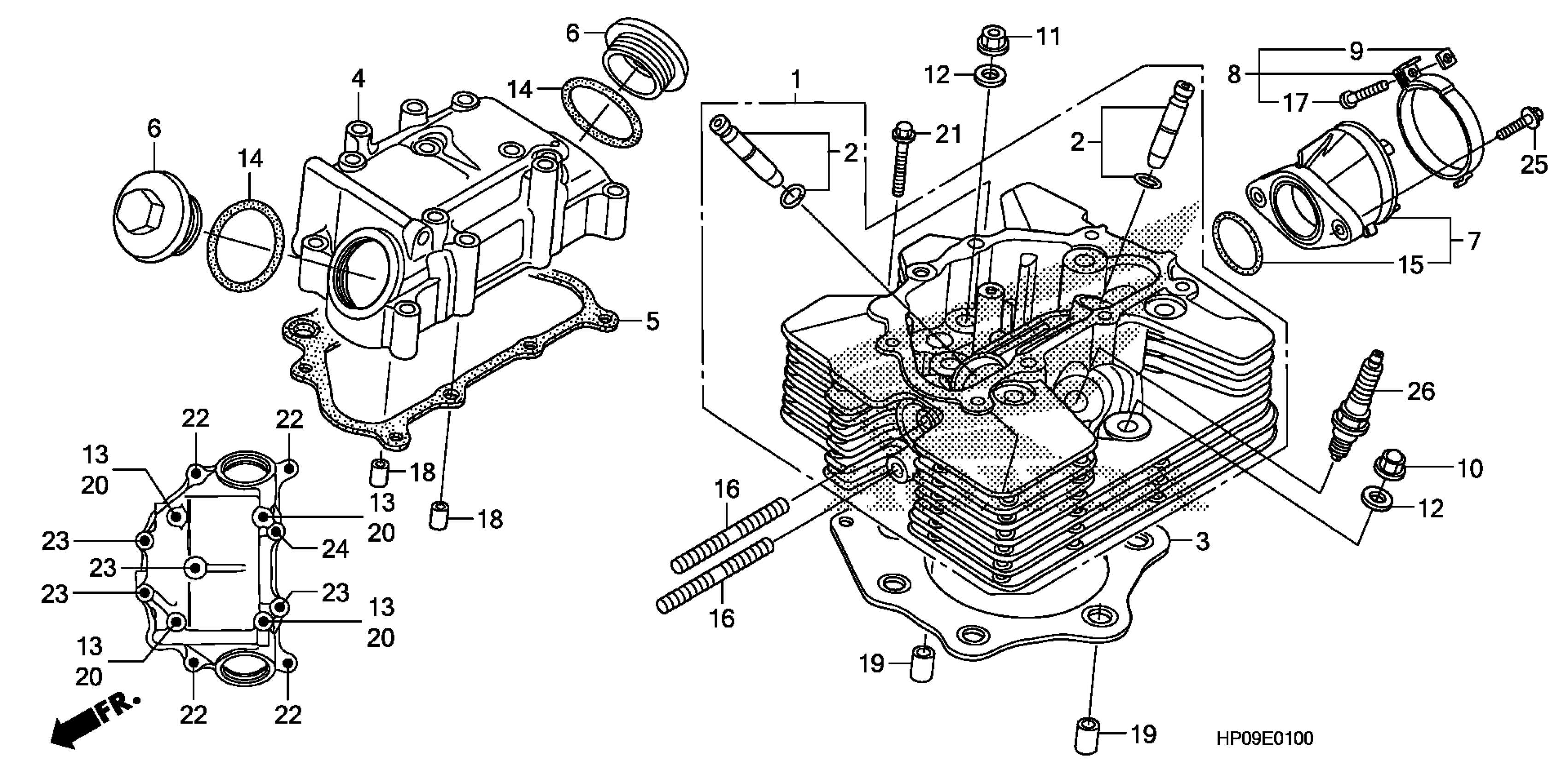

Honda TRX500FE2A (09) FOURTRAX FOREMAN ES, USA, VIN# 1HFTE315-94400001 TO 1HFTE315-94499999 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-HP0-A01

$469.87

2

GUIDE ASSY., VALVE (OVER SIZE)

12204-HP0-305

$19.65

3

GASKET, CYLINDER HEAD

12251-HP0-A00

$18.60

3

GASKET, CYLINDER HEAD (OVER SIZE) | (Optional).

12252-HP0-305

$21.45

4

COVER, CYLINDER HEAD

12310-HP0-A00

$155.20

5

GASKET, HEAD COVER

12315-HP0-A00

$14.08

6

CAP, TAPPET ADJUSTING HOLE

12361-028-000

$7.89

7

INSULATOR, CARBURETOR

16210-HP0-A00

$35.24

8

BAND A, INSULATOR

16217-MW4-000

$5.14

9

NUT, SQUARE (5MM)

16222-MV4-300

$1.96

10

NUT, CAP (10MM)

90201-HA0-000

$5.99

10

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$5.99

11

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.41

11

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.41

11

NUT, FLANGE (10MM)

94050-10000

$1.41

12

WASHER, PLAIN (10MM)

90401-KF9-900

$1.97

13

WASHER, SEALING (6MM)

90441-706-000

$1.06

14

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.18

14

O-RING (33.5X3.0)

91304-HB3-003

$7.18

15

O-RING (39.5X2.6)

91352-MG2-792

$7.77

16

BOLT, STUD (8X25)

92900-08025-0B

$2.00

17

SCREW, PAN (5X25)

93500-05025-0G

$0.68

18

PIN, DOWEL (8X14)

94301-08140

$2.04

19

PIN A, DOWEL (12X16)

94301-12160

Unavailable

20

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

21

BOLT, FLANGE (6X32)

95701-06032-00

$1.71

22

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

23

BOLT, FLANGE (6X65)

95701-06065-00

$1.38

24

BOLT, FLANGE (6X75)

95701-06075-00

$2.09

25

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

26

SPARK PLUG (BKR5E-11) (NGK)

98079-5514E

$2.77
