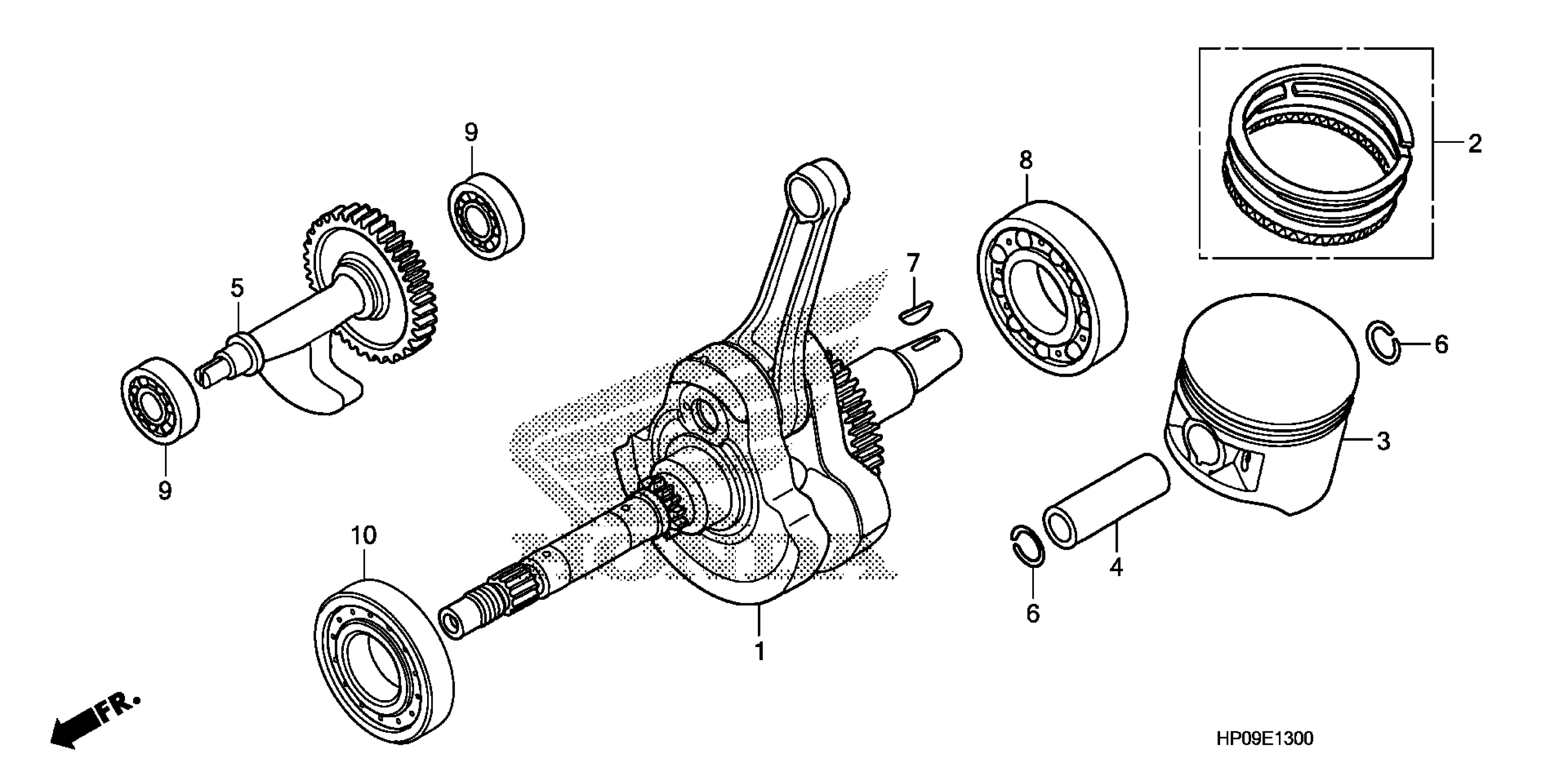

Honda TRX500FE2A (09) FOURTRAX FOREMAN ES, USA, VIN# 1HFTE315-94400001 TO 1HFTE315-94499999 CRANKSHAFT + PISTON Diagram

CRANKSHAFT

13000-HP0-A00

$761.38

RING SET, PISTON (STD)

13010-HP0-A01

$50.19

RING SET, PISTON (0.25) | (Optional).

13011-HP0-A01

$49.83

RING SET, PISTON (0.50) | (Optional).

13012-HP0-A01

$51.31

RING SET, PISTON (0.75) | (Optional).

13013-HP0-A01

$59.54

RING SET, PISTON (1.00) | (Optional).

13014-HP0-A01

$59.54

PISTON (STD)

13101-HP0-A00

$103.83

PISTON (0.25) | (Optional).

13102-HP0-A00

$122.77

PISTON (0.50) | (Optional).

13103-HP0-A00

$122.77

PISTON (0.75) | (Optional).

13104-HP0-A00

$122.77

PISTON (1.00) | (Optional).

13105-HP0-A00

Unavailable

PIN, PISTON

13111-HN2-000

$19.05

SHAFT, BALANCER

13420-HP0-A00

Unavailable

CLIP, PISTON PIN (1.2X20)

90601-KA5-000

$1.28

KEY, SPECIAL WOODRUFF (25X18)

90741-ZE2-000

$2.81

BEARING, RADIAL BALL

91001-HM7-008

$50.81

BEARING, RADIAL BALL RSH (6203)

91003-HA7-672

$23.90

BEARING, RADIAL ROLLER (40X76X17.5)

91010-HP0-A01

$49.91
