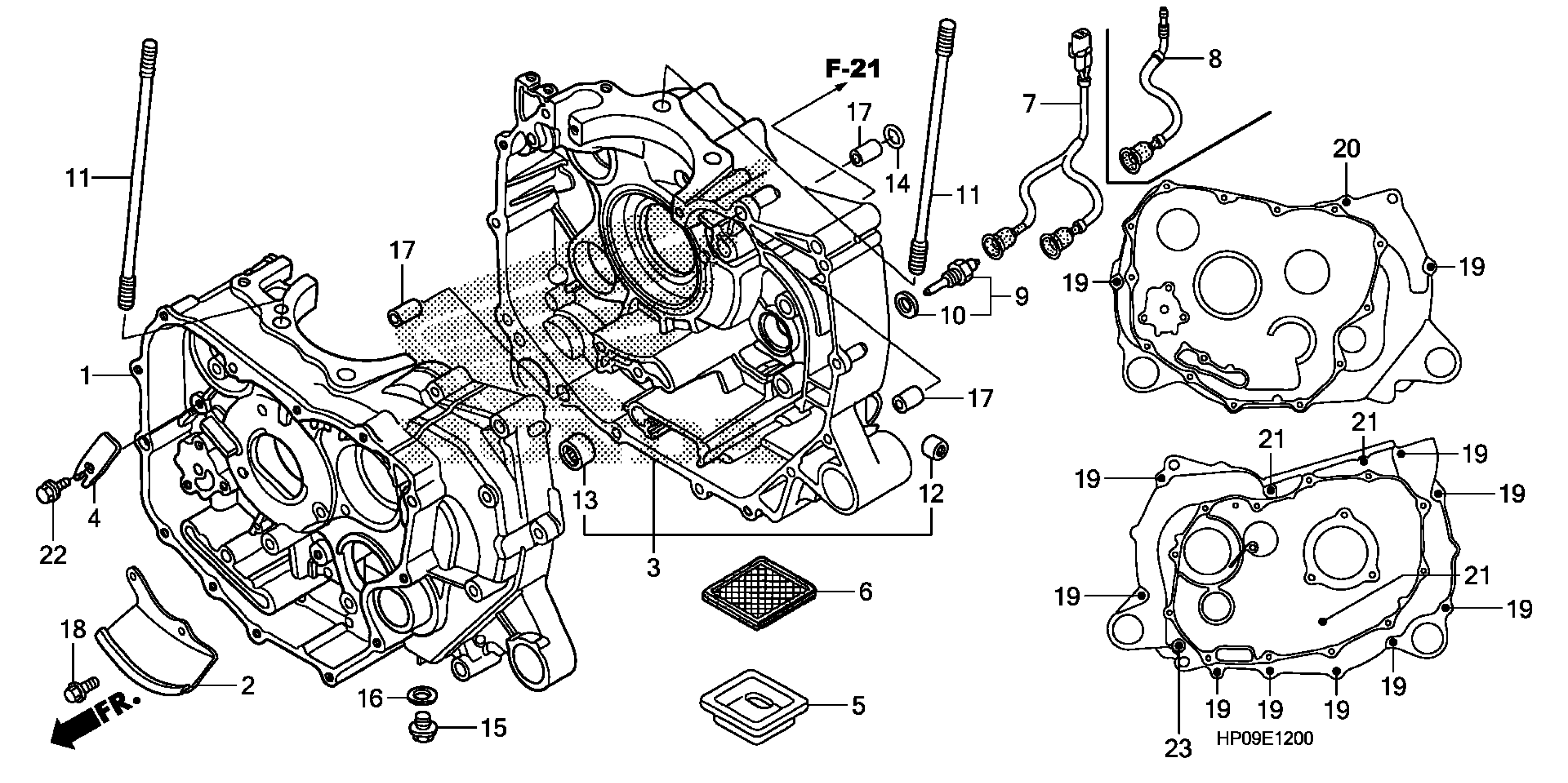

Honda TRX500FE2A (09) FOURTRAX FOREMAN ES, USA, VIN# 1HFTE315-94400001 TO 1HFTE315-94499999 CRANKCASE Diagram

CRANKCASE, FR. This part replaces 11100-HP0-A00.

11100-HP0-A01

$477.46

CRANKCASE, FR.

11100-HP0-A01

$477.46

PLATE, OIL SEPARATE

11150-HP0-A01

Unavailable

CRANKCASE SET, RR.

11210-HP0-305

$430.88

PLATE, CAM FIXING

14115-HM7-000

Unavailable

STRAINER, OIL

15153-HN5-670

$5.99

SCREEN, OIL FILTER This part replaces 15421-HC4-005.

15421-HR3-A40

$10.46

SUB-HARNESS, ENGINE

32103-HP0-A10

$25.32

SENSOR ASSY., THERMOSTAT OIL (TOYO)

37750-HC4-751

$56.20

SENSOR ASSY., THERMOSTAT OIL (TOYO) This part replaces 37750-HN5-M41.

37750-HC4-751

$56.20

WASHER, SEALING This part replaces 37751-HN5-M40.

90401-HA8-000

$3.55

WASHER, SEALING

90401-HA8-000

$3.55

WASHER, SEALING This part replaces 90401-HC4-750.

90401-HA8-000

$3.55

BOLT, STUD (10X190)

90032-HP0-A00

$6.86

BEARING, NEEDLE (14X20X12) (TORRINGTON)

91105-HN0-671

$3.78

BEARING, NEEDLE (20X26X12)

91106-HN0-671

$13.86

O-RING (7.5X1.5)

91302-HB3-004

$1.99

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.00

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

PIN, DOWEL (8X14)

94301-08140

$2.04

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

BOLT, FLANGE (6X55)

95701-06055-00

$1.97

BOLT, FLANGE (6X75)

95701-06075-00

$2.09

BOLT, FLANGE (8X16)

95701-08016-00

$1.64

BOLT, FLANGE (6X140)

95801-06140-00

$3.04
