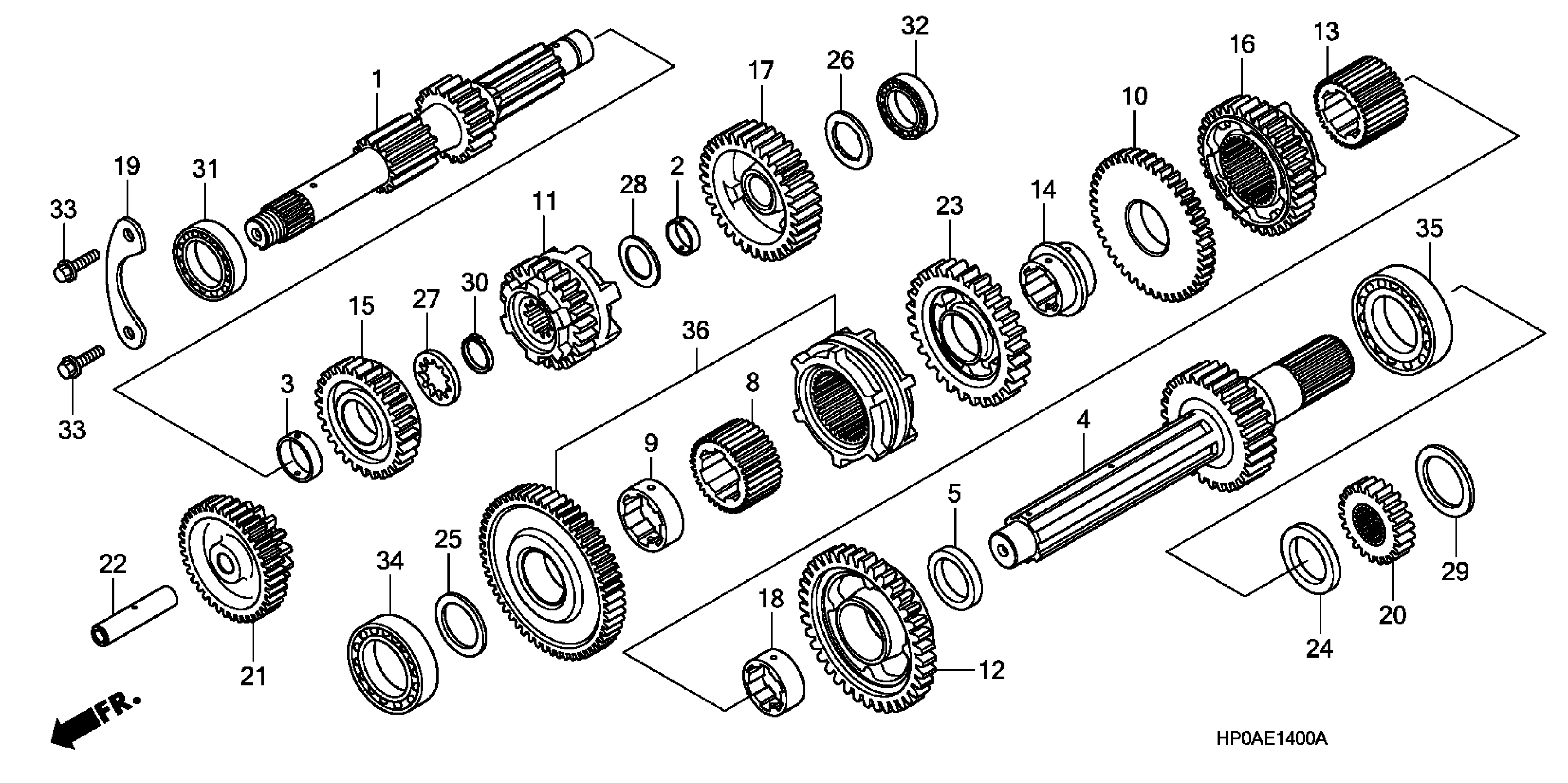

Honda TRX500FE2A (08) FOURTRAX FOREMAN 4X4 ES, USA, VIN# 1HFTE315-84300001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T/18T)

23211-HP0-A00

$166.44

2

BUSH (17MM)

23212-HP0-A00

$8.07

3

BUSH A (22MM)

23214-HA0-000

$17.03

4

COUNTERSHAFT, TRANSMISSION

23221-HP0-A00

$151.54

5

COLLAR, COUNTERSHAFT

23224-HP0-A00

Unavailable

8

COLLAR, SPLINE

23413-HA7-670

Unavailable

9

BUSH, SPLINE (25MM)

23414-HA0-000

$22.78

10

GEAR, COUNTERSHAFT SECOND (43T)

23431-HP0-A00

$149.51

11

GEAR, MAINSHAFT THIRD (23T)

23441-HP0-A00

$115.52

12

GEAR, COUNTERSHAFT THIRD (37T)

23451-HP0-A00

$143.56

13

COLLAR, COUNTERSHAFT FOURTH SPLINE

23453-HN0-A10

Unavailable

14

BUSH A, SPLINE (25MM)

23454-HA0-000

$34.18

15

GEAR, MAINSHAFT FOURTH (28T)

23461-HP0-A00

$82.64

16

GEAR, COUNTERSHAFT FOURTH (33T)

23471-HP0-A00

$99.45

17

GEAR, MAINSHAFT FIFTH (33T)

23481-HP0-A00

$98.85

18

COLLAR, SPLINE (25X12.5)

23512-MB0-000

Unavailable

19

PLATE, BEARING SETTING

23521-HP0-A00

$3.87

20

GEAR, FINAL DRIVE (22T)

23621-HP0-A00

Unavailable

21

GEAR, REVERSE IDLE (15T/39T)

23721-HP0-A00

$67.38

22

SHAFT, REVERSE IDLE

23731-HB3-000

$24.61

23

GEAR, COUNTERSHAFT REVERSE (28T)

23751-HP0-A00

$136.82

24

COLLAR, DISTANCE (25MM)

75146-750-000

$6.56

25

WASHER, THRUST (20MM)

90401-HP0-A00

$4.37

26

WASHER, SPECIAL (17MM)

90403-HN8-000

$2.90

27

WASHER, SPLINE (22MM)

90451-KY1-000

$4.20

28

WASHER, THRUST (17MM)

90452-GB4-770

$1.86

29

WASHER C, THRUST (25MM)

90459-357-000

$3.60

30

CIRCLIP (22MM)

90601-329-000

$2.67

31

BEARING, BALL (62/22) (NACHI) This part replaces 91002-PL0-008.

91002-PL0-018

$31.46

31

BEARING, BALL (62/22) (NACHI)

91002-PL0-018

$31.46

31

BEARING, BALL (62/22) (NACHI) This part replaces 91005-657-008.

91002-PL0-018

$31.46

32

BEARING, RADIAL BALL (6203U SPL.)

91006-HN2-003

$12.71

33

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

34

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

35

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27

36

GEAR SET, LOW

06234-HP0-306

$75.89
