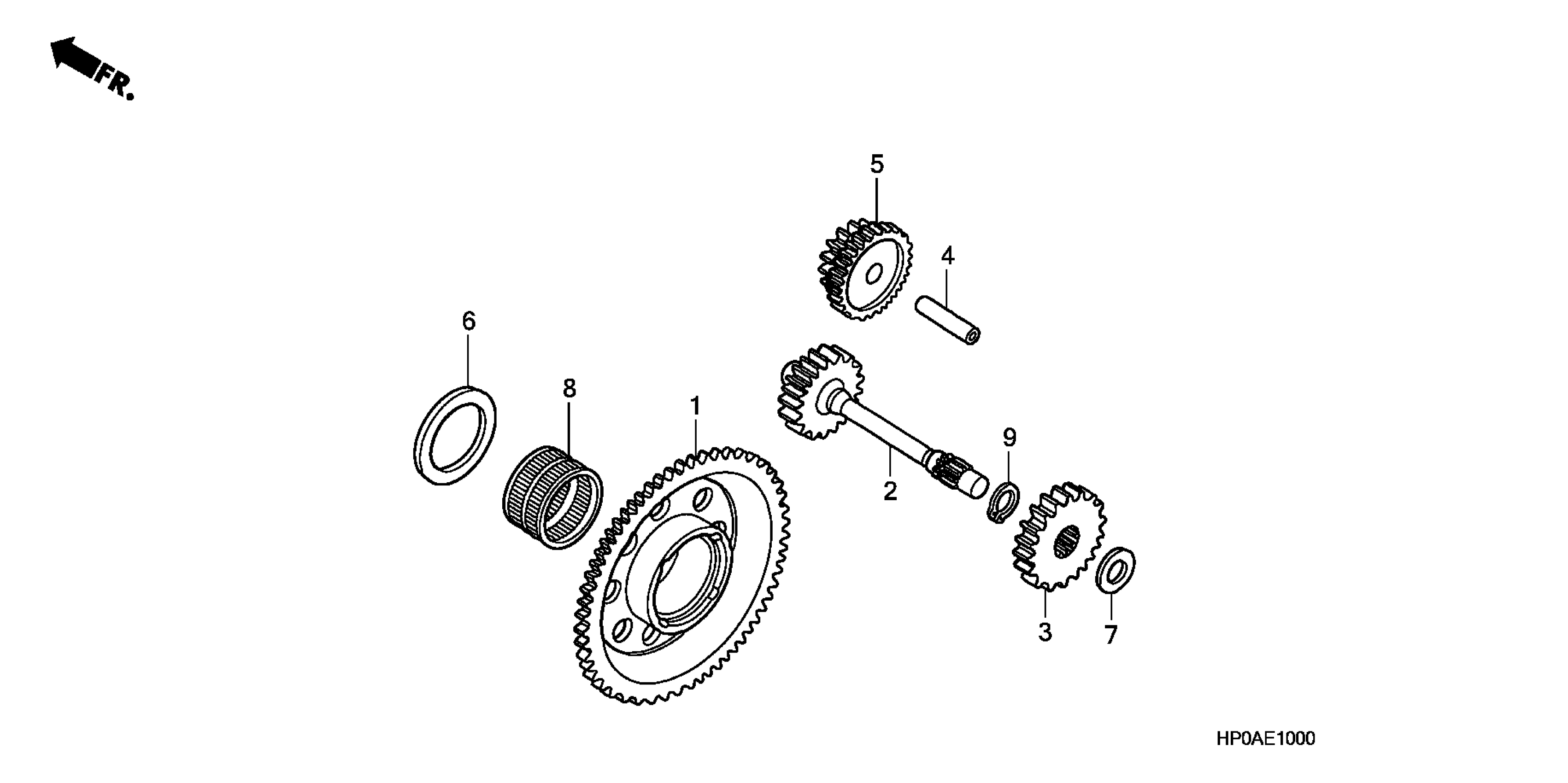

Honda TRX500FE2A (08) FOURTRAX FOREMAN 4X4 ES, USA, VIN# 1HFTE315-84300001 STARTER GEAR Diagram

GEAR, STARTING DRIVEN (70T)

28110-HP0-A00

$136.88

SHAFT, STARTER REDUCTION (20T)

28130-HP0-A00

$38.28

GEAR C, STARTER REDUCTION (26T)

28131-HM7-000

$46.06

SHAFT A, STARTER REDUCTION

28133-HA0-770

$11.04

GEAR, STARTER REDUCTION (43T/18T)

28140-HN0-A00

$44.10

WASHER (32X45X3)

90401-HM7-000

$4.21

WASHER, THRUST (12MM)

90451-GF6-000

$2.06

BEARING, NEEDLE (32X37X26)

91061-HM7-003

$24.53

CIRCLIP (OUTER) (15MM)

94510-15000

$1.06
