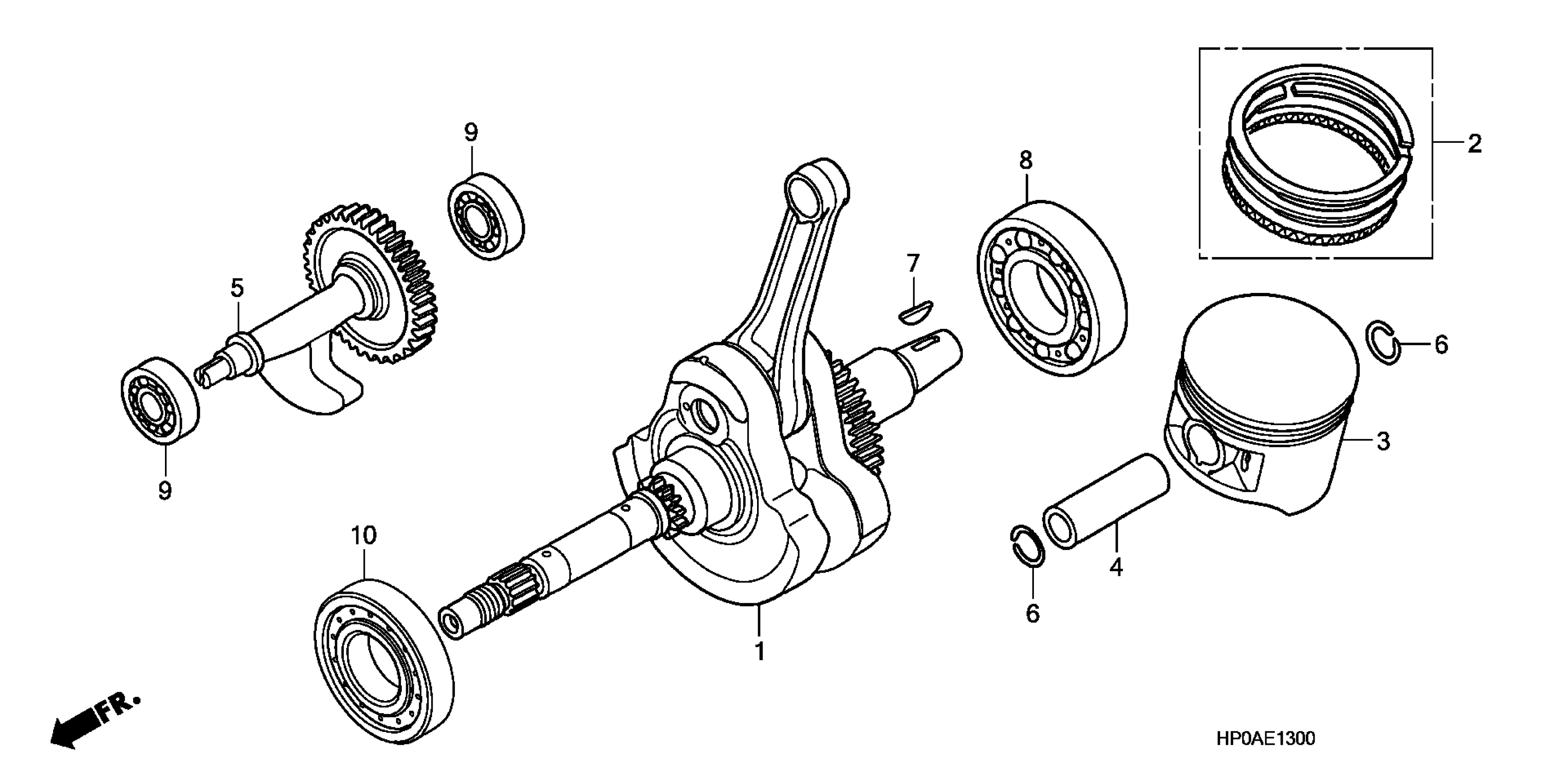

Honda TRX500FE2A (08) FOURTRAX FOREMAN 4X4 ES, USA, VIN# 1HFTE315-84300001 CRANKSHAFT + PISTON Diagram

CRANKSHAFT

13000-HP0-A00

$772.57

RING SET, PISTON (STD)

13010-HP0-A01

$51.31

RING SET, PISTON (0.25) | (Optional).

13011-HP0-A01

$51.31

RING SET, PISTON (0.50) | (Optional).

13012-HP0-A01

$51.31

RING SET, PISTON (0.75) | (Optional).

13013-HP0-A01

$60.41

RING SET, PISTON (1.00) | (Optional).

13014-HP0-A01

$60.41

PISTON (STD)

13101-HP0-A00

$106.15

PISTON (0.25) | (Optional).

13102-HP0-A00

$124.57

PISTON (0.50) | (Optional).

13103-HP0-A00

$124.57

PISTON (0.75) | (Optional).

13104-HP0-A00

$124.57

PISTON (1.00) | (Optional).

13105-HP0-A00

Unavailable

PIN, PISTON

13111-HN2-000

$20.62

SHAFT, BALANCER

13420-HP0-A00

Unavailable

CLIP, PISTON PIN (1.2X20)

90601-KA5-000

$1.29

KEY, SPECIAL WOODRUFF (25X18)

90741-ZE2-000

$2.85

BEARING, RADIAL BALL

91001-HM7-008

$51.95

BEARING, RADIAL BALL RSH (6203)

91003-HA7-672

$24.61

BEARING, RADIAL ROLLER (40X76X17.5)

91010-HP0-A01

$51.03
