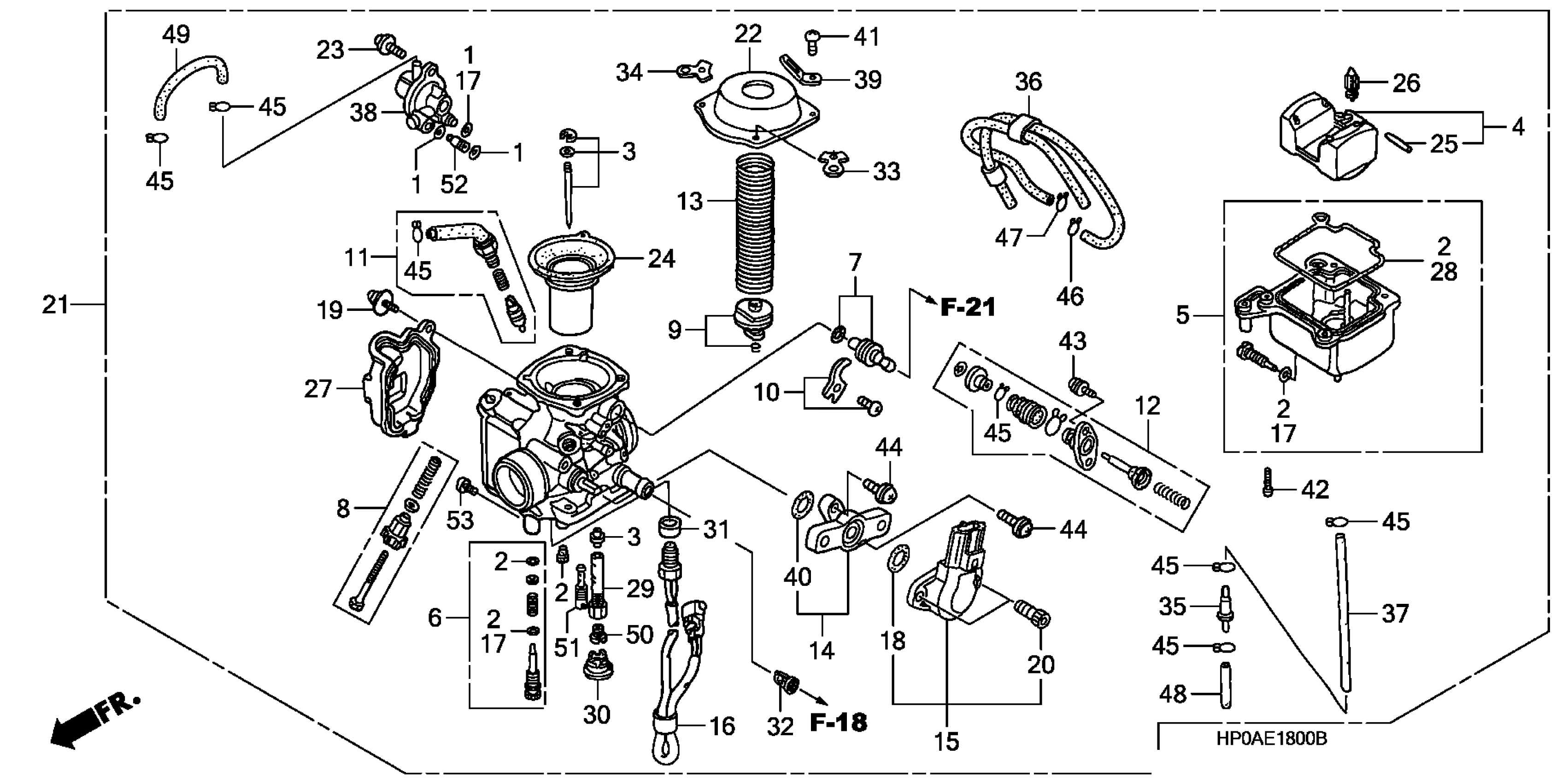

Honda TRX500FE2A (08) FOURTRAX FOREMAN 4X4 ES, USA, VIN# 1HFTE315-84300001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET C This part replaces 16010-HM7-670.

16041-MZ5-600

$16.19

1

GASKET SET C

16041-MZ5-600

$16.19

2

GASKET SET

16010-HN7-003

$15.68

3

NEEDLE SET, JET

16012-HP0-A01

$17.58

4

FLOAT SET

16013-HN8-003

$35.32

5

CHAMBER SET, FLOAT

16015-HP0-A01

$34.99

6

SCREW SET

16016-HP0-A01

$20.30

7

JOINT SET

16026-MR1-004

$36.85

8

SCREW SET

16028-HP0-A01

$19.49

9

PLATE SET, VALVE

16037-HN2-003

$17.46

10

PLATE SET, STAY

16038-HN8-003

Unavailable

11

VALVE, STARTER

16046-HN2-003

$49.83

12

PUMP SET This part replaces 16048-HM7-700.

16048-HN7-003

$78.73

12

PUMP SET

16048-HN7-003

$78.73

13

SPRING, COMPRESSION COIL

16050-HP0-A01

$9.03

14

SPACER SET, THROTTLE SENSOR

16060-HP0-A02

$29.38

15

CARBURETOR ASSY This part replaces 16061-HP0-A01.

16061-HP0-A02

$201.59

16

HEATER ASSY.

16070-HP0-A01

$60.04

17

O-RING (1.3X4.3)

16075-GHB-640

$2.65

18

O-RING

16075-HN2-A21

$2.74

19

SCREW-WASHER

16080-HC0-003

$3.86

20

BOLT, BREAK HEAD

16083-HP0-A01

$5.12

21

CARBURETOR ASSY This part replaces 16100-HP0-A03.

16100-HP0-A04

$541.22

22

TOP

16107-HN2-003

$32.49

23

SCREW

16108-MW0-750

$2.29

24

PISTON, VACUUM

16111-HN2-003

$107.19

25

PIN, ARM

16152-HN8-003

$3.80

26

VALVE, FLOAT

16155-HN7-003

$25.94

27

COVER, BODY

16157-HN8-003

$24.70

28

GASKET, FLOAT CHAMBER

16163-MEA-671

$20.80

29

HOLDER, NEEDLE JET

16165-HN2-003

$26.88

30

HOLDER, JET

16168-HC4-003

$9.70

31

COLLAR, SETTING

16172-KEB-610

$3.30

32

SCREEN, FUEL STRAINER

16176-MW3-A80

$6.36

33

BINDER

16178-HP0-A01

$1.99

34

BINDER

16179-HP0-A01

$1.99

35

VALVE, ONE-WAY

16180-HC4-003

$16.19

36

TUBE, AIR VENT

16196-HP0-A01

$8.13

37

TUBE

16198-HP0-A01

$2.51

38

VALVE ASSY., AIR CUT

16510-MBW-601

$112.80

39

CLIP, PLATE

17191-MT2-740

$3.38

40

O-RING (14.8X1.9)

91304-PT0-000

$3.65

41

SCREW, PAN (4X8)

93500-04008-0H

$0.83

41

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$0.83

42

SCREW, PAN (4X14)

93500-04014-0H

$0.75

42

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$0.75

43

SCREW-WASHER (4X12)

93892-04012-08

$0.58

43

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.58

44

SCREW-WASHER (5X14)

93892-05014-08

$1.00

44

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.00

45

CLIP, TUBE (B7)

95002-02079

$1.09

46

CLIP, TUBE (B1 8)

95002-02089

Unavailable

47

CLIP, TUBE (B6.5)

95002-02659

$1.00

48

BULK HOSE, VACUUM (3.5X1000) (3.5X50)

95005-35001-20M

$8.69

49

BULK HOSE, VACUUM (3.5X1000) (3.5X110)

95005-35001-20M

$8.69

50

JET, MAIN (#158) | (Optional).

99101-HN2-1580

$10.42

50

JET, MAIN (#162)

99101-HP0-1620

$6.96

51

JET, SLOW (#45) This part replaces 99104-HN2-0450.

99104-KPF-0450

$10.64

51

JET, SLOW (#45)

99104-KPF-0450

$10.64

52

JET (#170)

99108-HP0-1700

$3.54

53

JET (#60)

99112-HP0-0600

$7.81
