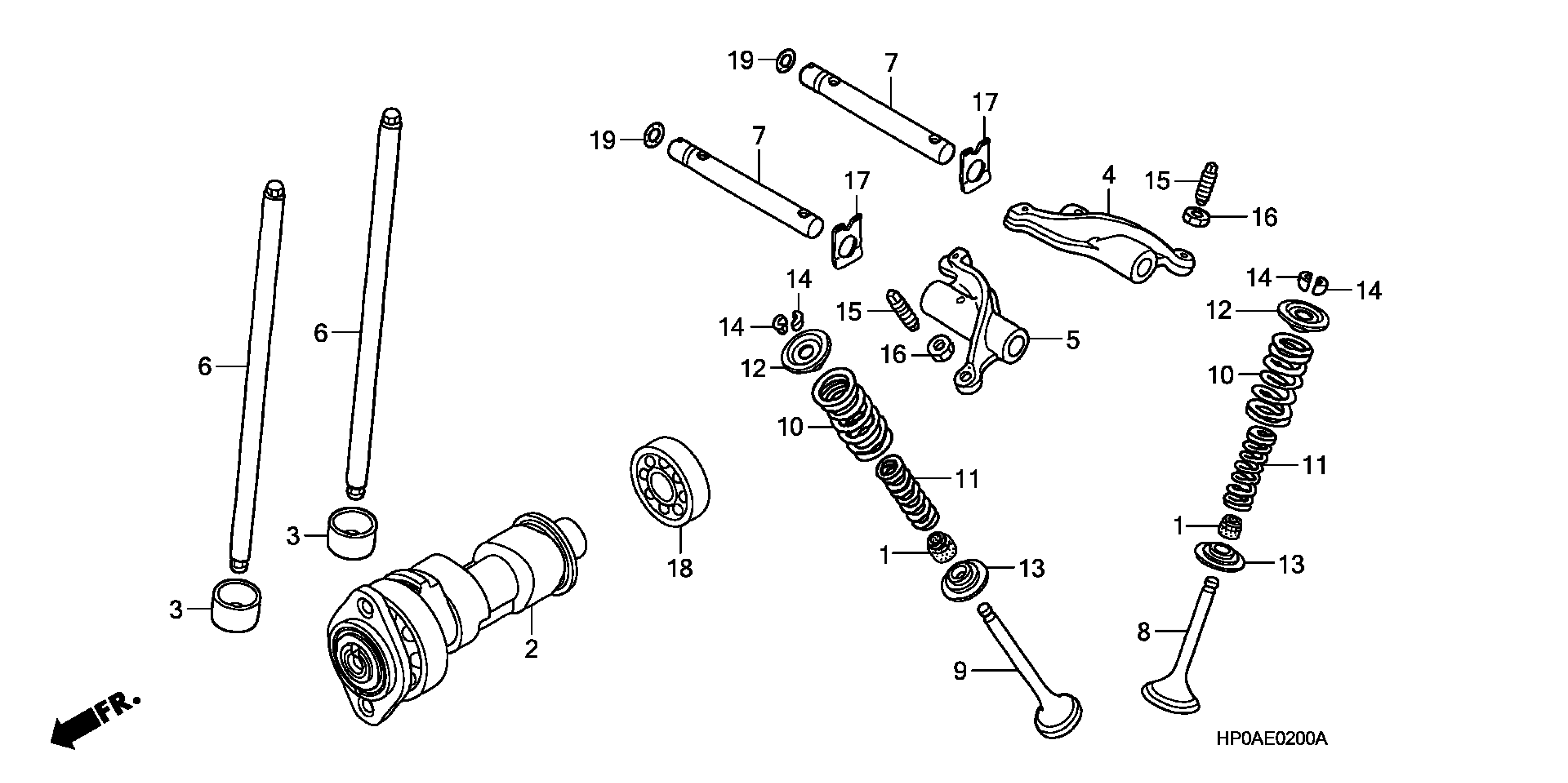

Honda TRX500FE2A (08) FOURTRAX FOREMAN 4X4 ES, USA, VIN# 1HFTE315-84300001 CAMSHAFT Diagram

Description

Price

SEAL, EX. VALVE STEM

12208-MBB-003

$10.49

CAMSHAFT

14100-HP0-A00

$160.67

FOLLOWER, CAM

14421-HM7-000

$31.75

ARM, IN. VALVE ROCKER

14431-HN6-000

$46.84

ARM, EX. VALVE ROCKER

14432-HN6-000

$46.84

ROD, PUSH

14440-HP0-A00

$16.12

SHAFT, ROCKER ARM

14451-HP0-A00

$15.52

VALVE, IN.

14711-HP0-A00

$39.97

VALVE, EX.

14721-HP0-A00

$58.36

SPRING, VALVE (OUTER)

14751-HP0-A00

$7.60

SPRING, VALVE (INNER)

14761-HP0-A00

$5.54

RETAINER, VALVE SPRING

14771-HP0-A00

$7.80

SEAT, VALVE SPRING

14775-HP0-A00

$6.48

COTTER, VALVE

14781-MBB-003

$4.03

SCREW, TAPPET ADJUSTING

90012-426-000

$6.48

NUT, TAPPET ADJUSTING

90206-250-000

$2.80

WASHER, SPRING

90402-HN6-000

$3.14

BEARING, RADIAL BALL (6203)

91004-HN0-671

$10.43

O-RING (7.7X2.5)

91303-428-003

$1.72
