Description

Price

1

CLIP, OIL DRAIN TUBE

15707-634-000

$4.90

2

HOUSING, AIR CLEANER

17210-HP0-A00

$112.31

3

BODY, AIR CLEANER

17211-HP0-A00

$21.62

4

HOLDER, ELEMENT

17212-HP0-A50

$28.09

5

FILTER, SUB-AIR CLEANER

17213-HN2-000

$9.23

6

LID, AIR CLEANER HOUSING

17217-HP0-A00

$148.10

7

SEAL, AIR CLEANER COVER

17219-HN2-000

$32.52

8

SPRING, AIR CLEANER HOUSING LID (TOYO)

17223-HB3-003

$7.04

8

SPRING, AIR CLEANER HOUSING LID

17223-HM8-000

$1.68

9

TUBE, AIR CLEANER DRAIN

17224-HM8-B40

$6.56

10

SEAL, AIR CLEANER DUCT

17252-HP0-A00

$3.29

11

ELEMENT, AIR CLEANER

17254-HP0-A00

$14.42

12

JOINT, BREATHER

17255-HP0-A00

$6.16

13

COVER, DUST

17256-HM5-L00

$10.83

14

DUCT, SNORKEL (INNER)

17256-HP0-A00

$57.84

15

SEAL, RESONATOR

17257-HP0-A00

$5.38

16

RESONATOR, DUCT

17258-HP0-A00

$15.65

17

DUCT, SNORKEL

17259-HP0-A00

$17.91

18

COVER A, SNORKEL

17261-HN8-A00

$13.69

19

COVER B, SNORKEL

17262-HN8-A00

$12.82

20

TUBE, FR.

17265-HP0-A00

$35.25

21

TUBE, RR.

17266-HP0-A00

$37.14

22

PIPE, BREATHER

17366-HP0-A00

$17.19

23

TUBE, AIR CLEANER

17367-HP0-A00

$2.62

24

TUBE, BREATHER PIPE

17368-HP0-A00

$1.19

25

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

26

CLIP, AIR HOSE (21.5)

18532-634-670

$7.58

27

NUT, SPECIAL (6X7)

61304-958-003

$3.10

28

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

29

BAND, CONNECTING TUBE (54)

90654-HM8-A60

$6.75

30

BAND, AIR CLEANER CONNECTING TUBE (62)

90662-HN5-M00

$1.35

31

BAND, AIR CONNECTING TUBE (66)

90666-HN1-A20

$2.50

32

BAND, AIR CONNECTING TUBE (78)

90678-HN2-830

$3.89

33

BAND, AIR CLEANER CONNECTING TUBE (96)

90696-HN2-830

$5.28

34

RUBBER, TANK CUSHION

90851-898-000

$4.13

35

CLIP, TUBE (B12.5)

95002-02130

$1.06

36

BOLT, FLANGE (6X10)

95701-06010-00

$1.16

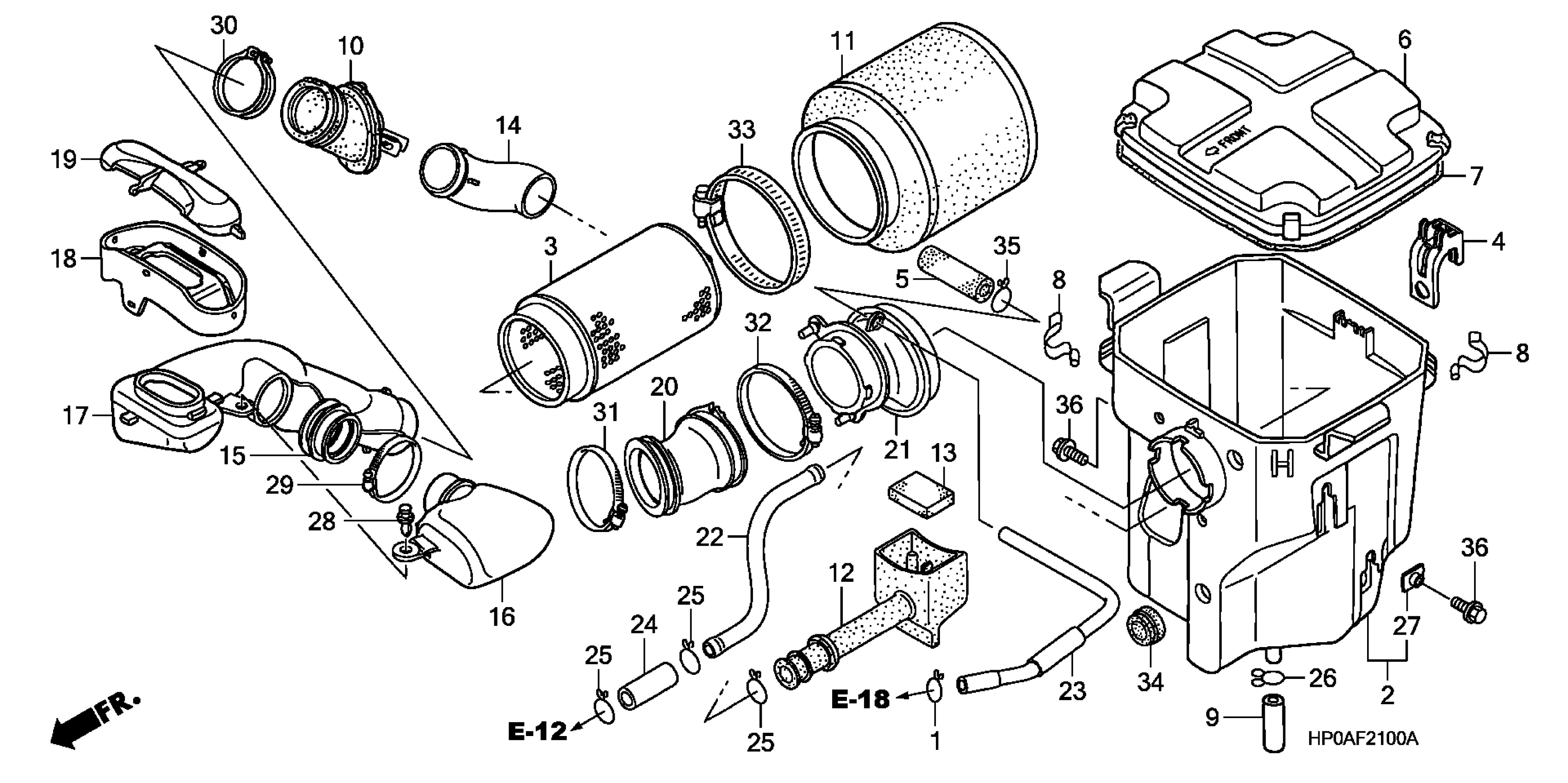

Honda TRX500FE2A (08) FOURTRAX FOREMAN 4X4 ES, USA, VIN# 1HFTE315-84300001 AIR CLEANER Diagram
