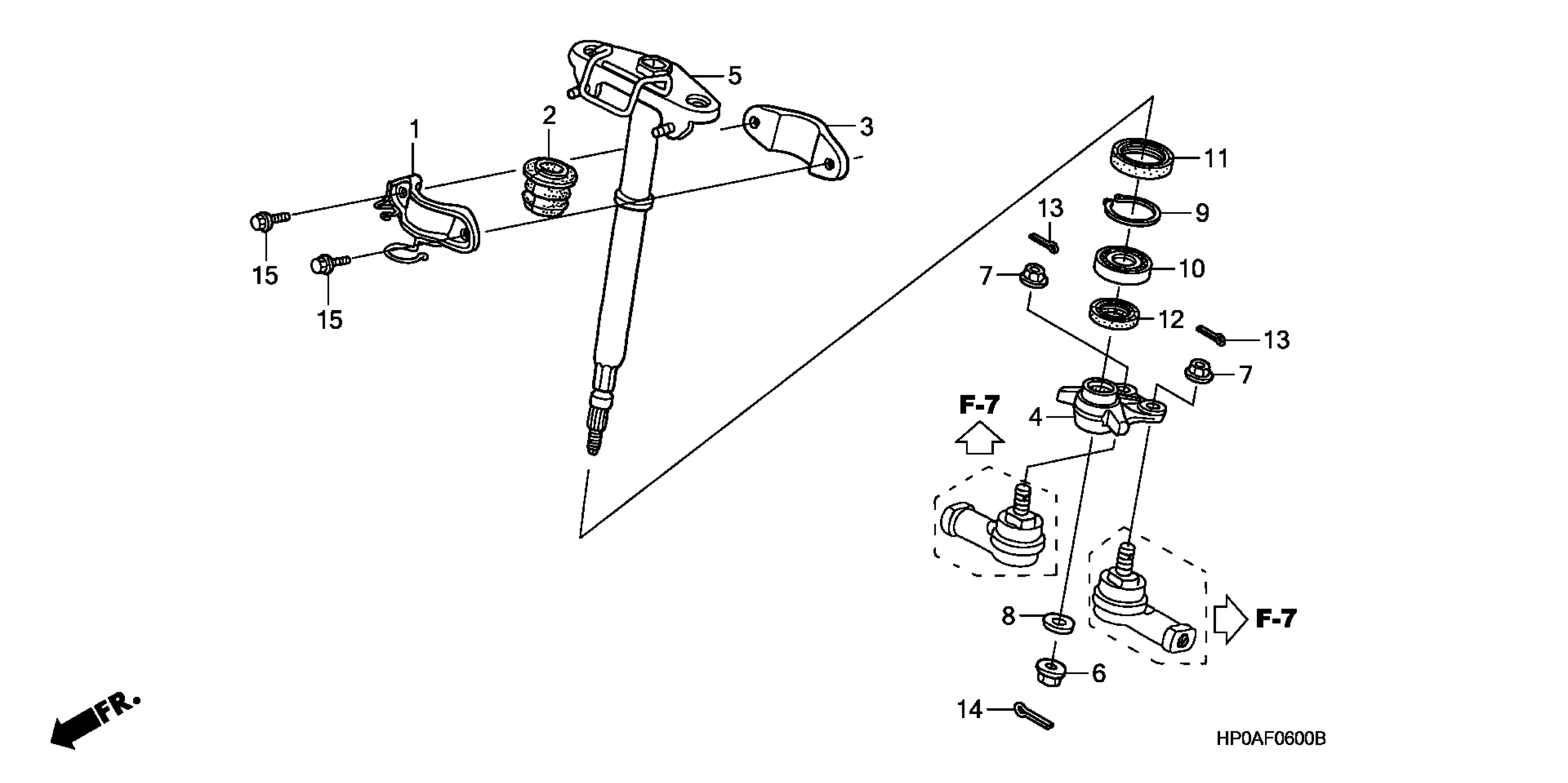

Honda TRX500FE2A (07) FOURTRAX FOREMAN 4X4 ES, USA, VIN# 1HFTE315-74200001 TO 1HFTE315-74299999 STEERING SHAFT (TRX500FE/FM) Diagram

HOLDER, STEERING SHAFT

53220-HP0-A00

$20.36

BUSH, STEERING

53221-HP1-003

$14.49

HOLDER, STEERING SHAFT

53223-HP0-A00

$24.33

ARM, STEERING

53235-HN8-000

$47.03

SHAFT, STEERING This part replaces 53310-HP0-A50.

53310-HP0-B80

$264.46

SHAFT, STEERING

53310-HP0-B80

$264.46

NUT, SELF-LOCK (14MM)

90213-S73-003

$5.15

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

WASHER, THRUST (14MM)

90402-HA0-000

$3.76

CIRCLIP (INNER) (44MM)

90603-HN2-000

$3.81

BEARING, RADIAL BALL (60/22)

91103-VA4-003

$14.99

DUST SEAL (30X44X9)

91255-HN8-003

$6.01

DUST SEAL (27X37X5)

91257-KY4-900

$4.87

PIN, SPLIT (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, SPLIT (2.0X35)

94201-20350

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

BOLT, FLANGE (8X16)

95701-08016-07

$1.80
