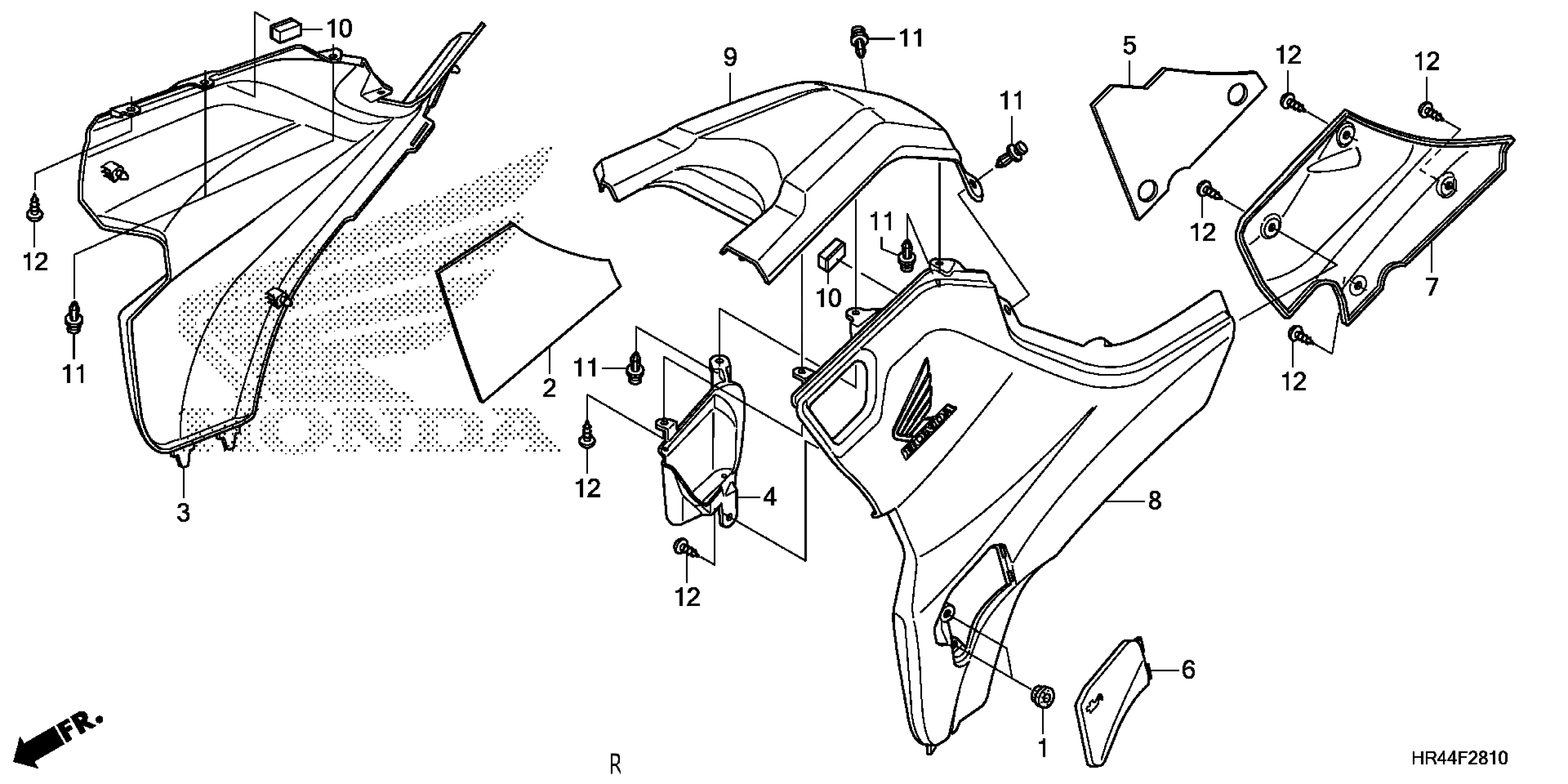

Honda TRX500FE1AC (15) TRX500FE1, USA, VIN# 1HFTE446-F4100001 SIDE COVER + TANK COVER Diagram

GROMMET, SIDE COVER

83501-MG7-000

$2.38

MAT, R. SIDE COVER

83552-HR3-A20

$8.00

COVER SET, R. SIDE (TYPE2) (WL) | Adventure green G152; This part replaces 83555-HR3-A20ZB.

83555-HR3-W10ZA

$50.09

COVER SET, R. SIDE (TYPE1) (WL) | Patriot red R232; This part replaces 83555-HR3-A20ZC.

83555-HR3-W10ZB

$50.06

COVER SET, R. SIDE (TYPE2) (WL) | Chaos black metallic-r NHA79MR;

83555-HR3-620ZA

$55.93

POCKET, SIDE

83610-HR3-A00

$3.82

MAT, L. SIDE COVER

83652-HR3-A20

$9.85

LID, OIL CHECK *R232* (PATRIOT RED) | Patriot red R232;

83653-HR3-A20ZB

$5.05

LID, OIL CHECK *G152* (ADVENTURE GREEN) | Adventure green G152;

83653-HR3-A20ZD

Unavailable

LID, OIL CHECK *NHA79MR* (CHAOS BLACK METALLIC-R) | Chaos black metallic-r NHA79MR;

83653-HR3-A20ZG

$7.70

COVER, SIDE (INNER)

83654-HR3-A20

$10.37

COVER SET, L. SIDE (TYPE2) (WL) | Adventure green G152; This part replaces 83655-HR3-A20ZB.

83655-HR3-W10ZA

$46.57

COVER SET, L. SIDE (TYPE1) (WL) | Patriot red R232; This part replaces 83655-HR3-A20ZC.

83655-HR3-W10ZB

$46.52

COVER SET, L. SIDE (TYPE2) (WL) | Chaos black metallic-r NHA79MR;

83655-HR3-620ZA

$46.64

COVER, TANK *NH1* (BLACK)

83700-HR3-A20ZA

$7.66

RUBBER, SIDE COVER SPONGE

83705-MT3-300

$3.15

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

SCREW, TAPPING (5X10)

93903-25110

$0.75
