Description

Price

1

SWITCH ASSY., IGNITION

35100-HR6-A61

$47.26

2

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-HF1-881

$8.61

2

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$8.61

3

HANDLEBAR This part replaces 53100-HR3-A20.

53100-HR3-WA0

$69.41

4

HOLDER, HANDLE (UPPER)

53111-HR3-A20

$11.25

5

BRACKET, METER STAY

53113-HR3-A20

$3.08

6

COVER, ASSIST HEADLIGHT R232 (PATRIOT RED) | Patriot red R232; This part replaces 53205-HR4-A20ZA.

53205-HR4-L20ZA

$179.30

6

COVER, ASSIST HEADLIGHT G152 (ADVENTURE GREEN) | Adventure green G152; This part replaces 53205-HR4-A20ZC.

53205-HR4-L20ZC

$179.32

6

COVER, ASSIST HEADLIGHT NHA79MR (CHAOS BLACK METALLIC-R) | Chaos black metallic-r NHA79MR;

53205-HR4-A20ZD

$213.19

7

COVER, METER NH1 (BLACK)

53206-HR4-A20ZA

$5.39

8

STAY, METER COVER

53207-HR4-A20

$5.52

9

BOOT, ASSIST HEADLIGHT

53212-HP0-A00

$2.04

10

NUT, SPEED (4MM)

64206-MJ0-000

$1.38

11

EMBLEM, PRODUCT (UEHARA)

86150-HN8-004

$6.84

12

BOLT, FLANGE (6MM)

90111-162-000

$2.62

13

BAND, WIRE HARNESS

90651-MA6-720

$3.47

14

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

15

SCREW, TAPPING (5X14) (PO)

93913-25380

$0.83

16

BOLT, FLANGE (8X38)

95701-08038-08

$2.07

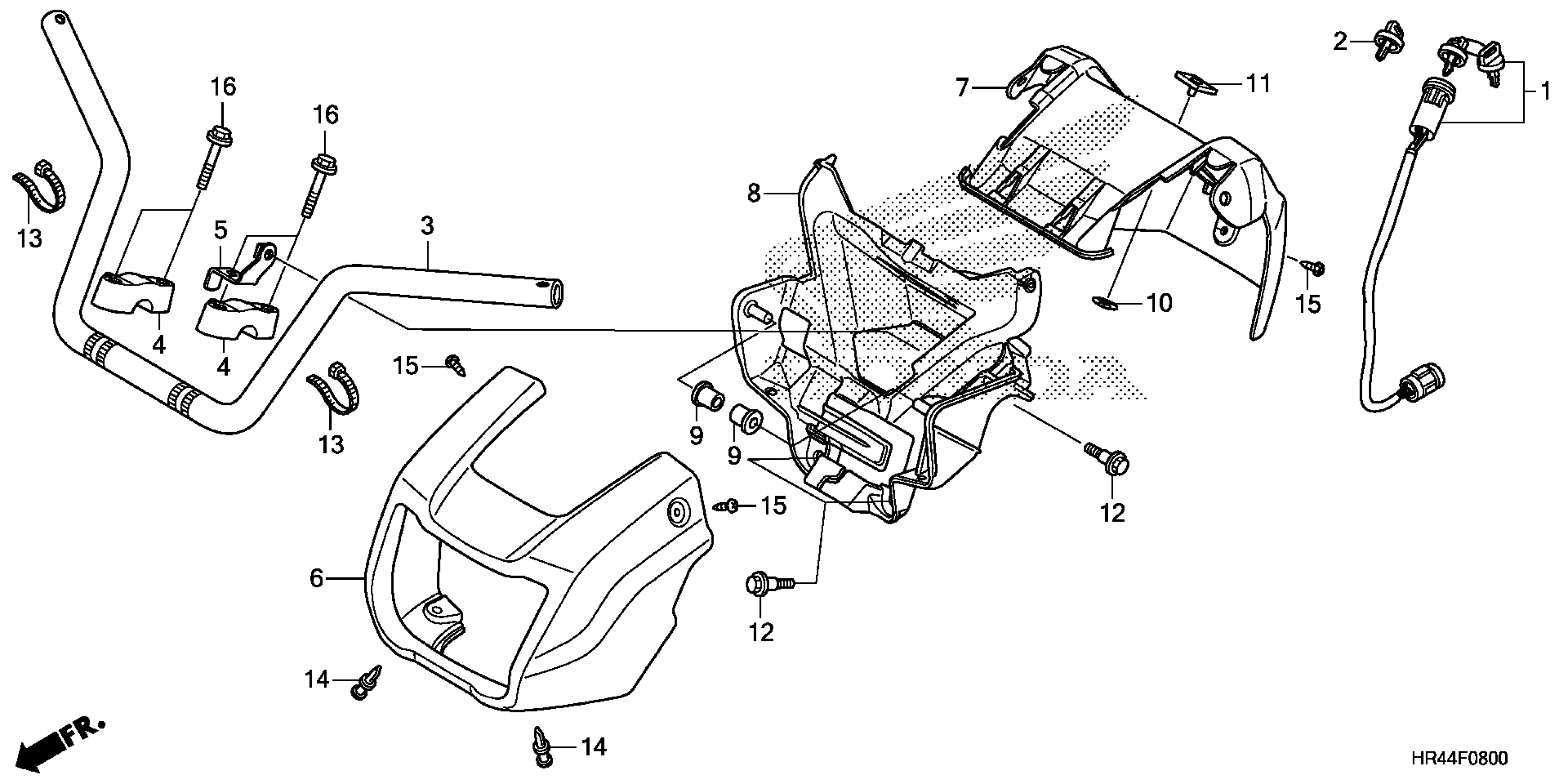

Honda TRX500FE1AC (15) TRX500FE1, USA, VIN# 1HFTE446-F4100001 HANDLEBAR Diagram
