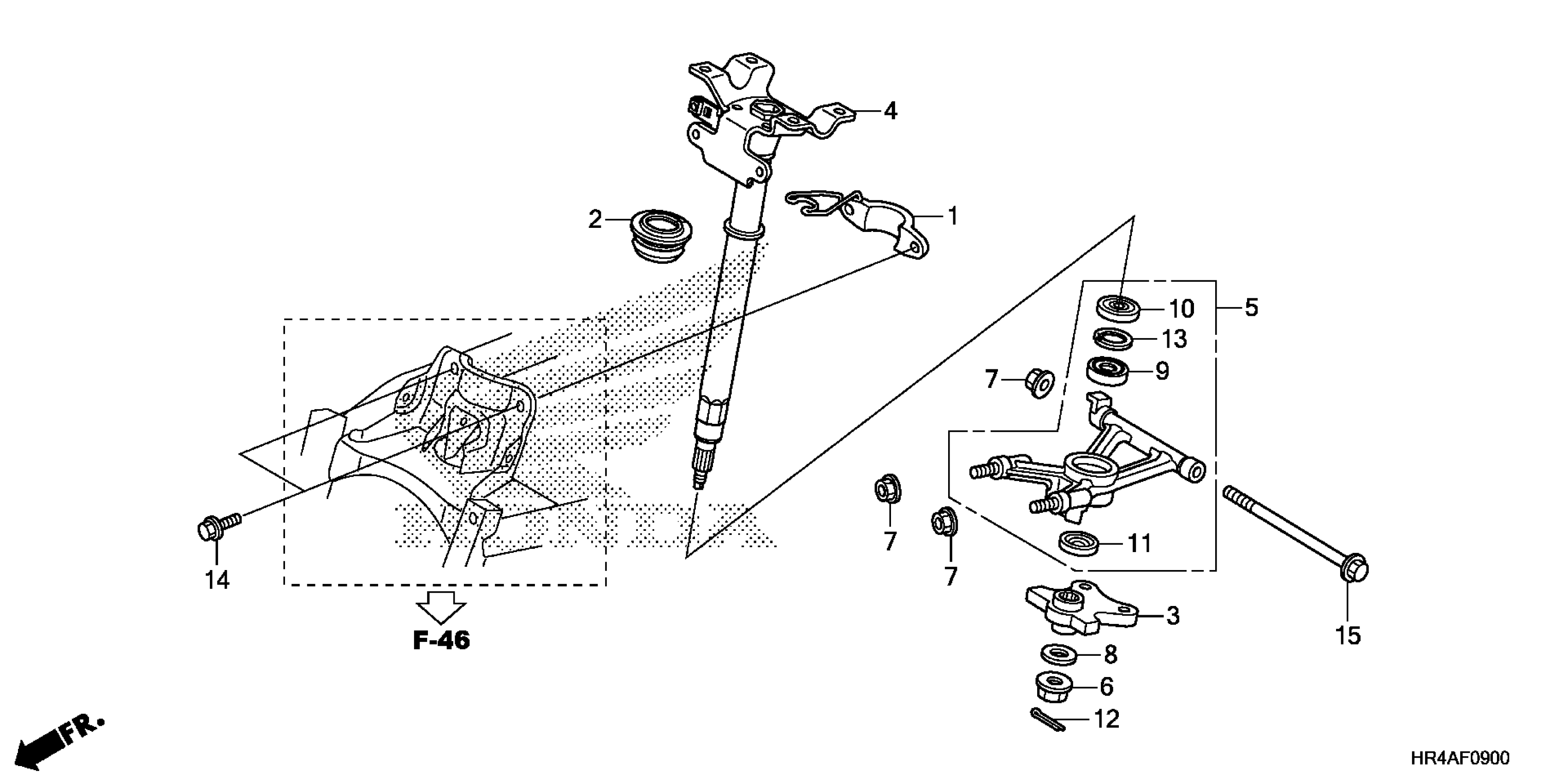

Honda TRX500FE12AC (16) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFTE447-G4200001 TO 1HFTE447-G4299999 STEERING SHAFT Diagram

HOLDER, STEERING SHAFT

53220-HR3-A20

$15.70

BUSH, STEERING

53221-HP1-003

$14.49

ARM, STEERING

53230-HR4-A20

$27.16

SHAFT, STEERING

53310-HR3-A20

$80.32

HOLDER ASSY., STEERING SHAFT (LOWER)

53400-HR3-A20

$61.00

NUT, SELF-LOCK (14MM)

90213-S73-003

$5.15

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

WASHER, THRUST (14MM)

90417-HA0-000

$3.67

BEARING, RADIAL BALL (6004)

91004-GGK-003

$12.21

OIL SEAL (25X42X7) (ARAI)

91205-950-003

$9.80

DUST SEAL (30X44X5)

91255-KV3-701

$7.79

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

CIRCLIP (INNER) (42MM)

94520-42000

$2.16

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (10X160)

95801-10160-00

$4.28
