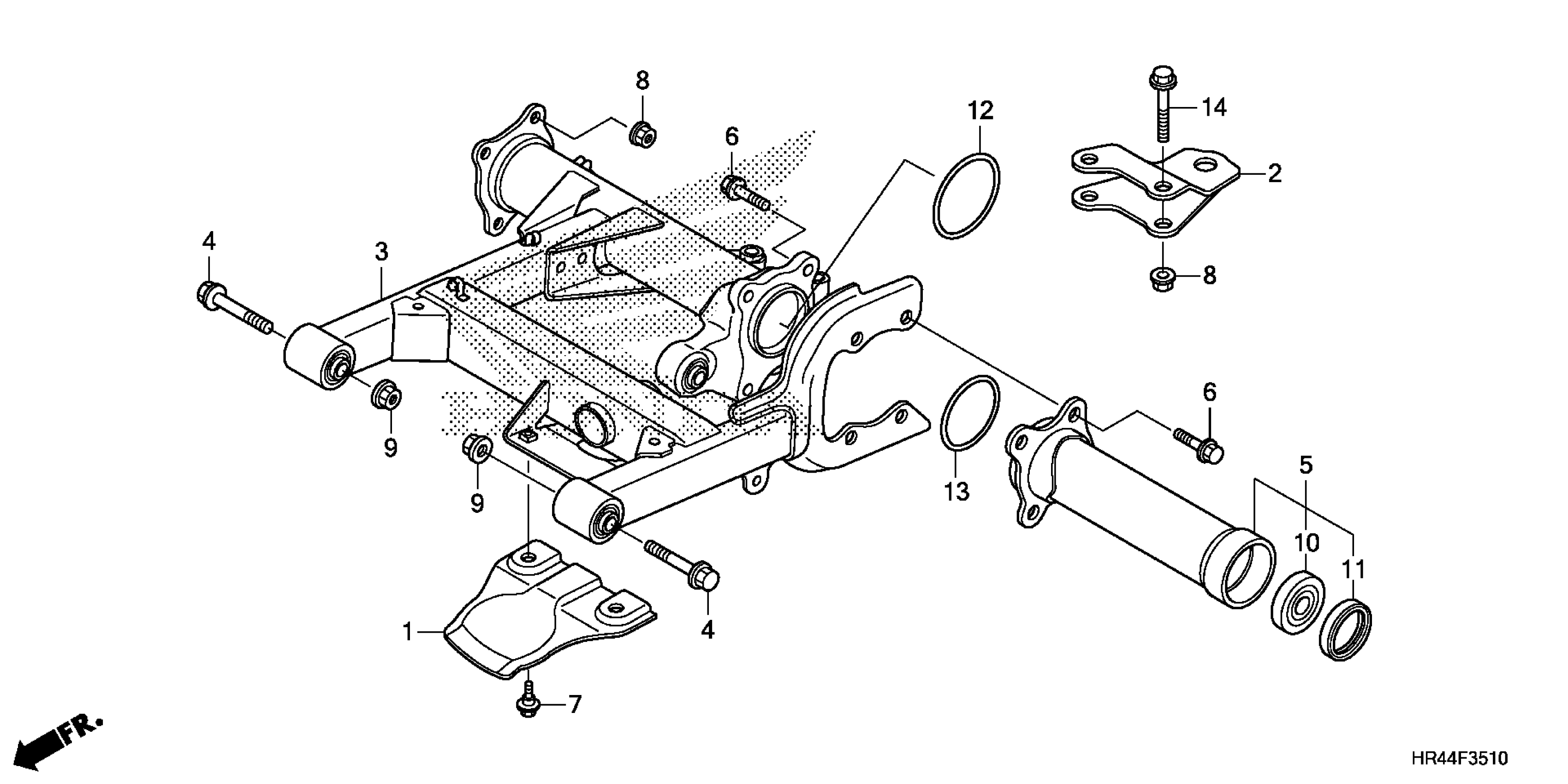

Honda TRX500FE12AC (15) TRX500FE1, USA, VIN# 1HFTE447-F4100001 SWINGARM Diagram

GUARD, YOKE JOINT

50359-HR0-F00

$5.34

HITCH, TRAILER

50810-HN5-670

$61.33

SWINGARM ASSY., RR.

52100-HR3-A20

$197.86

BOLT, SWINGARM PIVOT (12X70)

52101-HR3-A20

$1.92

PIPE ASSY., L. HOUSING This part replaces 52300-HR3-A20.

52300-HR3-W50

$113.11

BOLT, FLANGE (10X44)

90101-HR3-A20

$1.49

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

NUT, FLANGE (12MM)

90306-181-761

$6.08

BEARING, RADIAL BALL (32X58X13UU) (KOYO)

91055-HN5-681

$19.80

OIL SEAL (42X58X10)

91255-HR0-F01

$17.37

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.83

O-RING (66MM)

91351-881-000

$4.61

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.99
