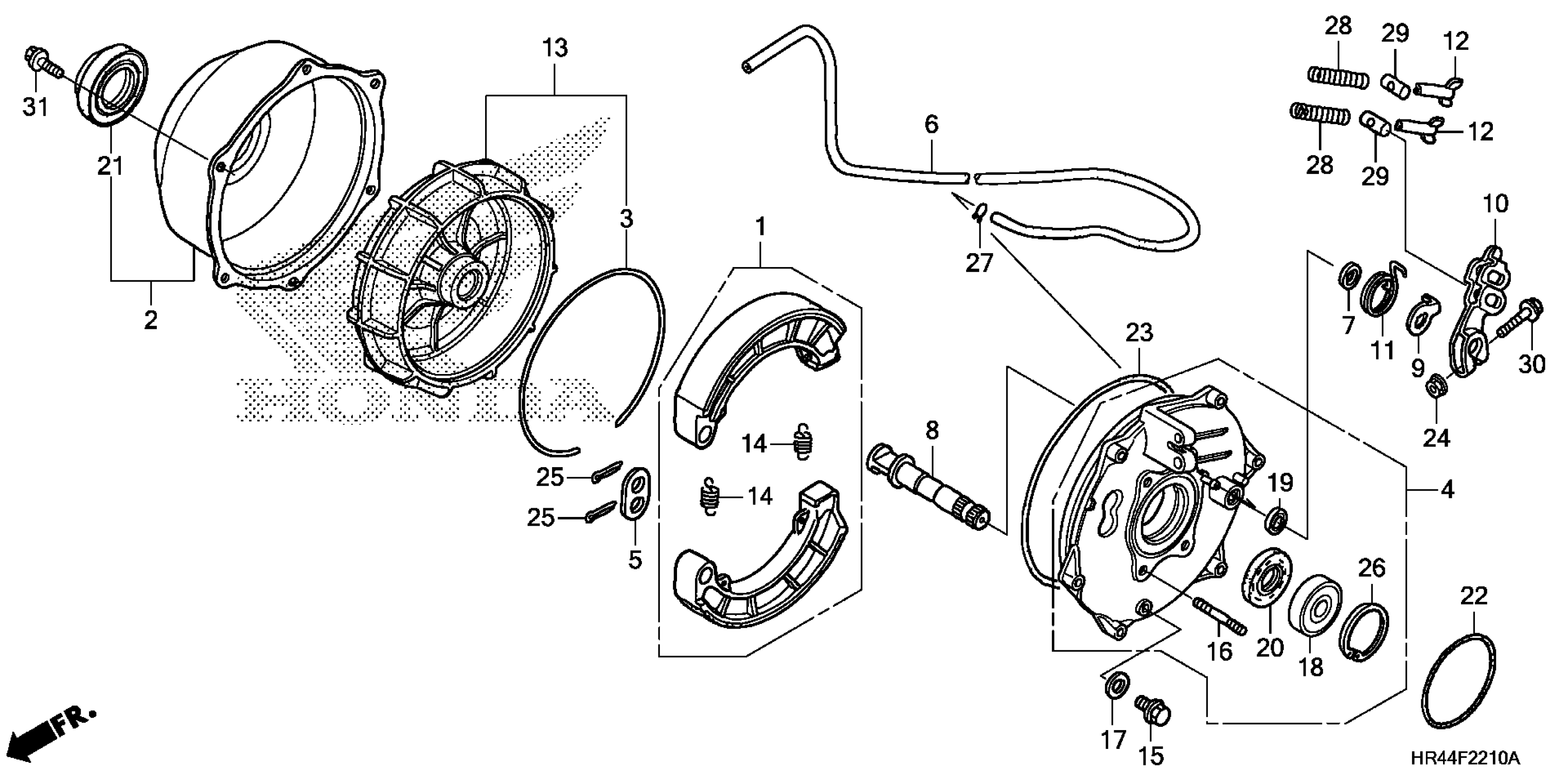

Honda TRX500FE12AC (15) TRX500FE1, USA, VIN# 1HFTE447-F4100001 REAR BRAKE PANEL Diagram

#

Description
Price

1

SHOE SET, BRAKE (ASK)

06430-HN0-A20

$41.11

1

SHOE SET, BRAKE (JB)

06430-HN0-A30

$52.19

2

COVER ASSY., DRUM

40520-HP0-A00

$42.46

3

RING, DAMPER

42624-HN5-M00

$2.70

4

PANEL SET, RR. BRAKE

43010-HR3-A20

$96.42

5

WASHER, ANCHOR PIN

43102-319-000

$5.77

6

TUBE, BREATHER (3.5X1005)

43132-HR3-A20

$3.05

7

DUST SEAL, BRAKE CAM

43134-300-000

$2.00

8

CAM, RR. BRAKE

43141-HA7-670

$31.89

8

CAM, RR. BRAKE

43141-HA7-671

$24.07

9

INDICATOR, BRAKE

43145-HN5-M00

$0.86

10

ARM, RR. BRAKE

43410-HN2-000

$20.19

11

SPRING, RR. BRAKE ARM

43415-HM7-000

$6.69

12

NUT, BRAKE ADJUSTING

43459-HM5-A10

$8.53

13

DRUM ASSY., RR. BRAKE

43620-HR3-A20

$71.09

14

SPRING, FR. BRAKE SHOE (RR.)

45133-329-000

$2.62

15

BOLT, SEALING (8MM)

90109-371-000

$2.46

16

BOLT, STUD (10X25)

90151-HA7-670

$5.80

17

GASKET (8MM)

90471-580-000

$2.80

18

BEARING, RADIAL BALL (63/28U)

91002-KY0-981

$34.45

19

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.44

20

DUST SEAL (44X58X8) (ARAI)

91251-HF7-003

$12.44

21

DUST SEAL (41X76X19) (ARAI)

91253-HM7-003

$16.11

22

O-RING (75X3.2) (NOK)

91320-HM7-702

$2.70

23

O-RING (199X3.1)

91355-HN2-003

$11.88

24

NUT, FLANGE (8MM)

94050-08000

$0.86

25

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$0.94

25

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.94

25

PIN, SPLIT (2.5X30)

94201-25300

$0.94

26

CIRCLIP (INNER) (68MM)

94520-68000

Unavailable

27

CLIP, TUBE (C6.5)

95002-35000

$0.68

28

SPRING A, BRAKE ROD

95014-73100

$1.17

29

JOINT B, BRAKE ARM

95015-32001

$0.86

30

BOLT, FLANGE (8X45)

95701-08045-00

$1.33

31

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
