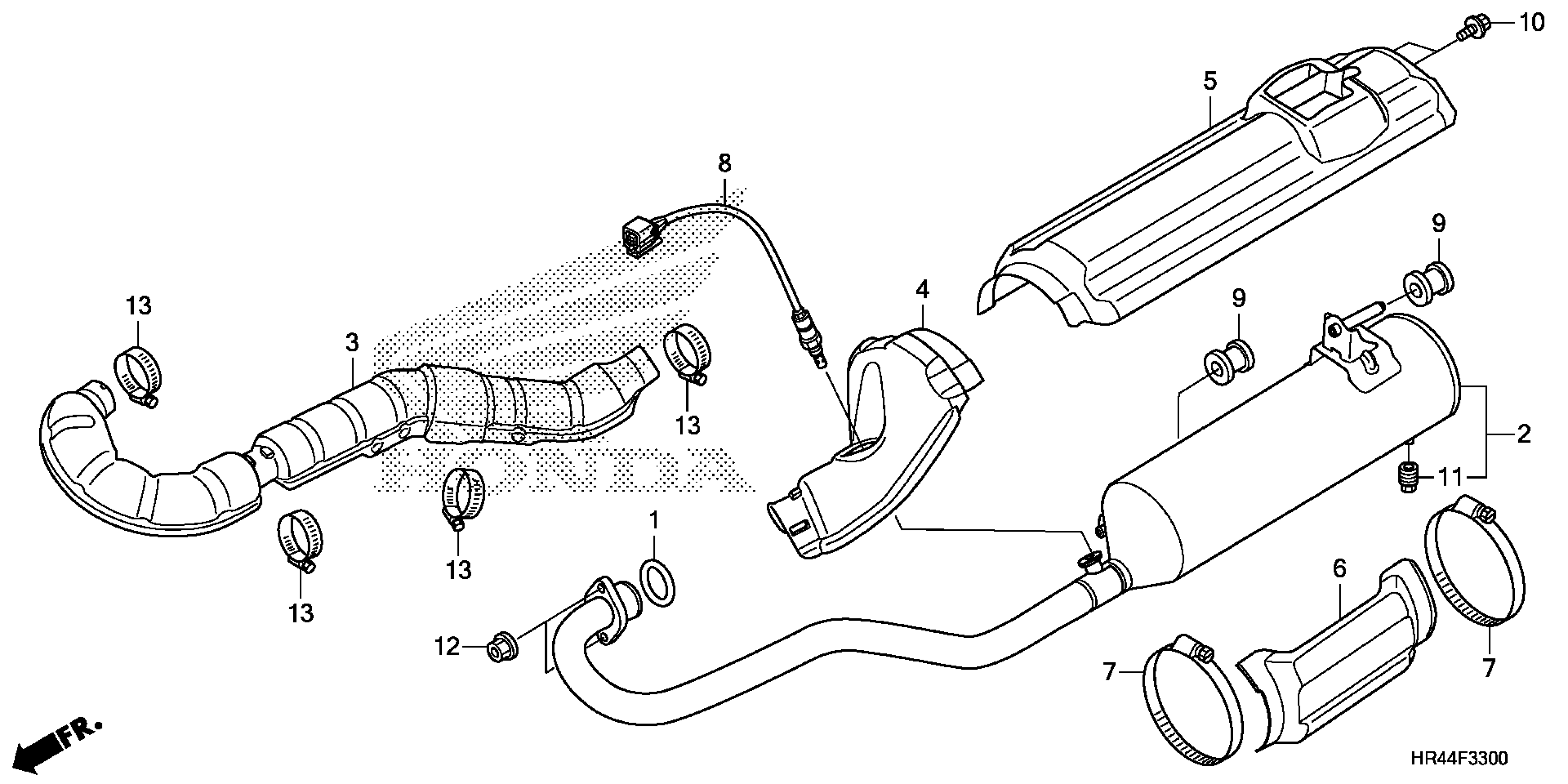

Honda TRX500FE12AC (15) TRX500FE1, USA, VIN# 1HFTE447-F4100001 MUFFLER Diagram

#

Description

Price

1

GASKET, EX. PIPE

18291-MN4-920

$5.31

2

MUFFLER

18300-HR3-A20

$556.26

3

COVER, EX. PIPE

18321-HR3-A20

$50.11

4

COVER, MUFFLER (FR)

18322-HR3-A20

$28.61

5

COVER, MUFFLER

18323-HR3-A20

$34.75

6

COVER, MUFFLER (LOWER)

18324-HR3-A20

$24.18

7

BAND, MUFFLER COVER (89-140MM) This part replaces 19084-HP0-A50.

19084-HR6-B00

$4.90

8

SENSOR, OXYGEN (NGK)

36531-HR3-A21

Unavailable

9

RUBBER, MUFFLER MOUNTING

50608-HR0-F00

$10.03

10

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.62

10

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

11

BOLT, ARRESTER

90183-HM5-850

$2.57

12

NUT, FLANGE (8MM)

90301-HM8-000

$2.70

13

BAND, AIR CLEANER CONNECTING TUBE (38)

90638-HN7-000

$4.25
